LOCKWOOD ES8100 V-LOCK Fail Safe/Fail Secure | IP53 Weather Resistant | 100kg Pre-load Rating | 11.4-28VDC | by Dicker Data
The LOCKWOOD ES8100 V-LOCK Fail Safe/Fail Secure is designed for robust security in both commercial and residential applications. With a 100kg pre-load rating and IP53 weather resistance, it ensures reliable performance even in challenging conditions. Ideal for single and double swing doors, this monitored electric lock features door position monitoring and is compatible with various access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD ES8100 V-LOCK Fail Safe/Fail Secure | IP53 Weather Resistant | 100kg Pre-load Rating | 11.4-28VDC | by Dicker Data
Brand: Dicker Data
SKU: ES8100
Alternatively Known As: V-Lock Fail Safe Lock, V-Lock Fail Secure Lock, Monitored Electric Lock, Lockwood ES8100 Electric Strike
Technical Specifications
- Voltage: 11.4 - 26VDC
- Peak Current: 1000mA, Idle Current: 35mA @12VDC with LED activated
- Unlocking Pre-load: Motorised unlocking - 100kg max at the bolt
- Strength: Maximum 1000kg
- Lock Status Monitoring: NO/NC contacts
- Door Position Monitoring: NC contact
- Unlocking Time: 1 second under preload
- Locking Time: 3 seconds
- Operating Temperature: -10 to +60°C
- Endurance: 500,000 operations (120N Unlocking, 50N Locking)

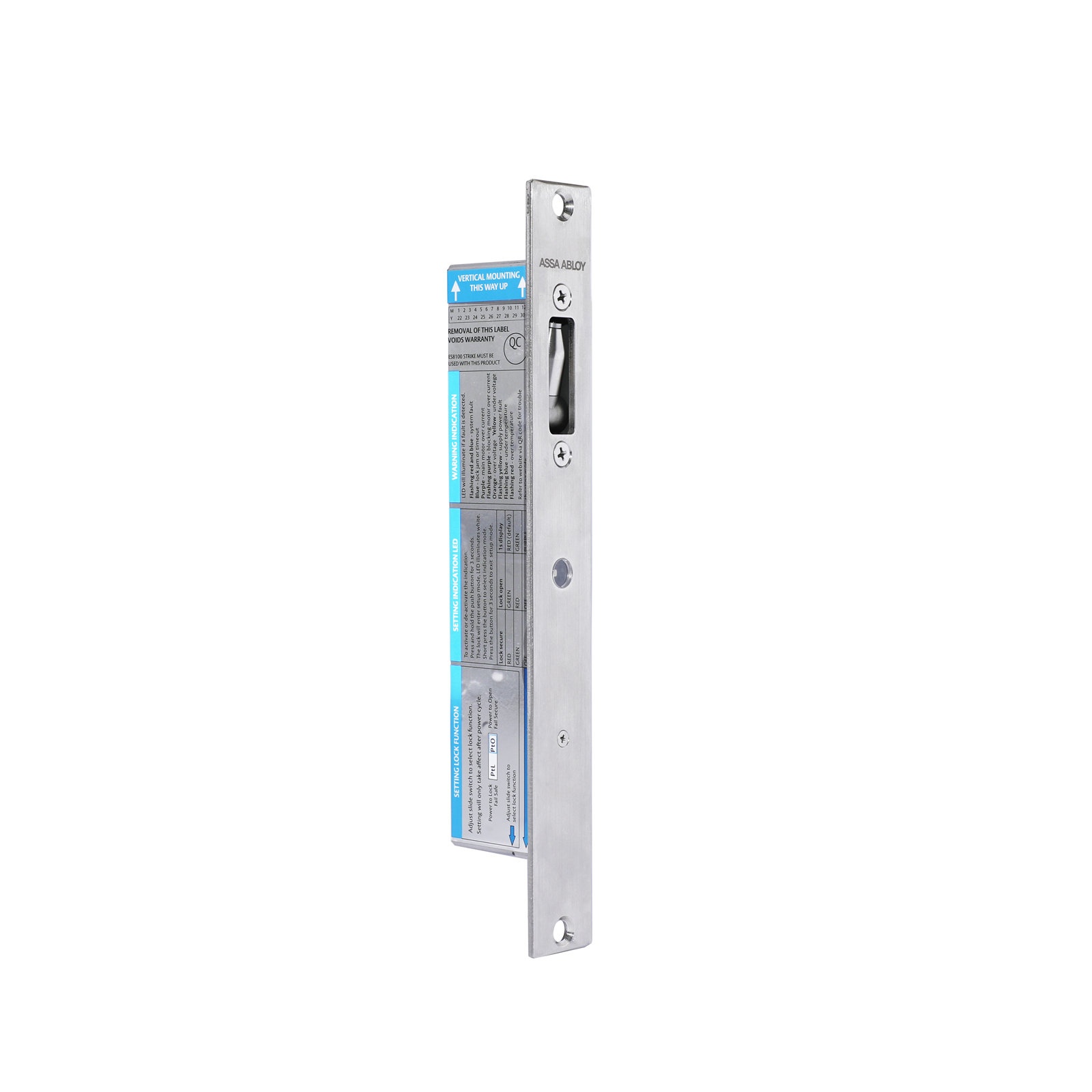

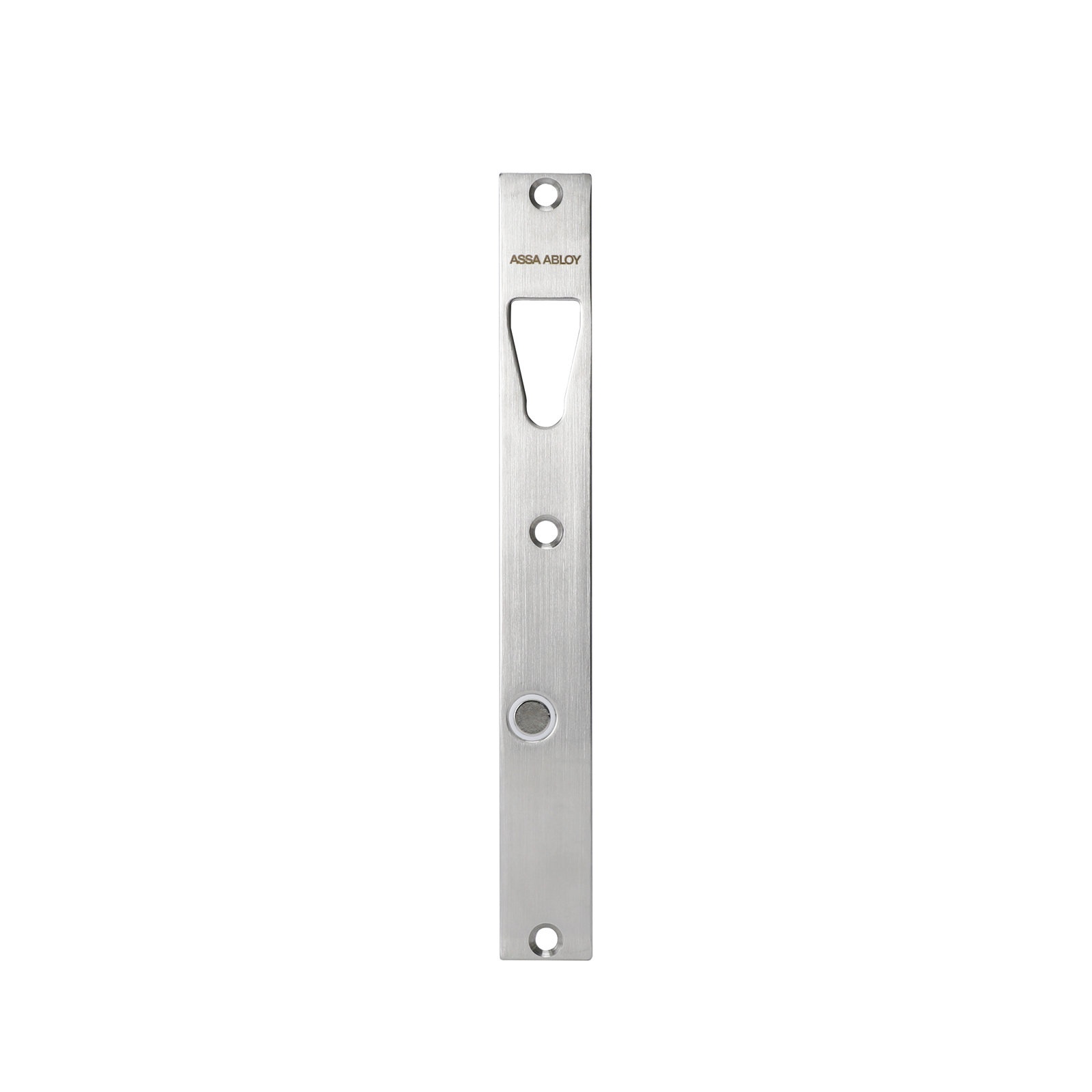

- Construction: Stainless Steel lock body, faceplate, and strike plate
- IP Rating: IP53 weather resistant

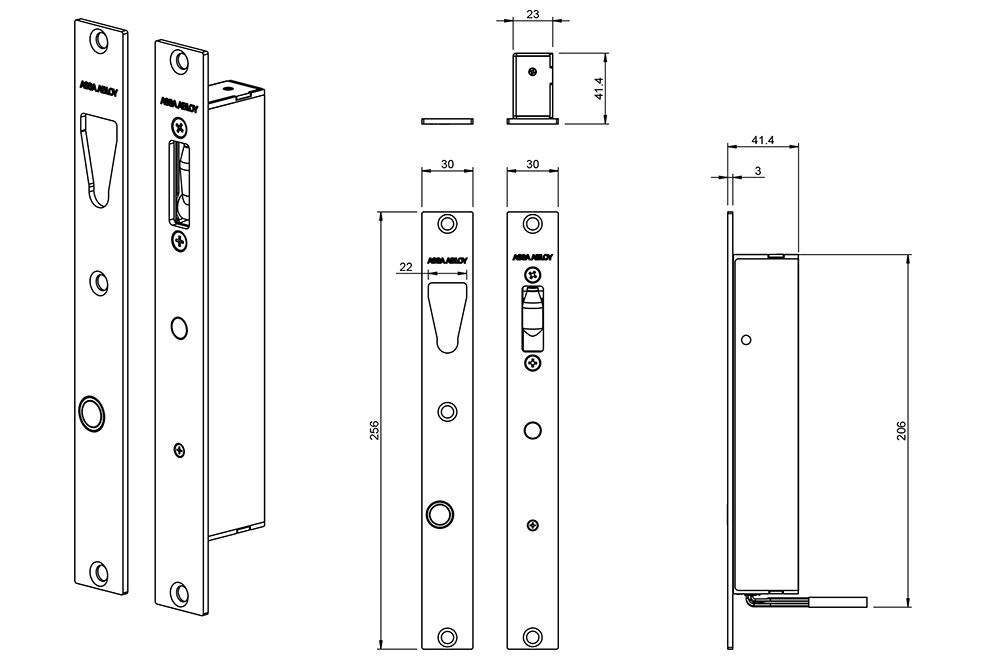

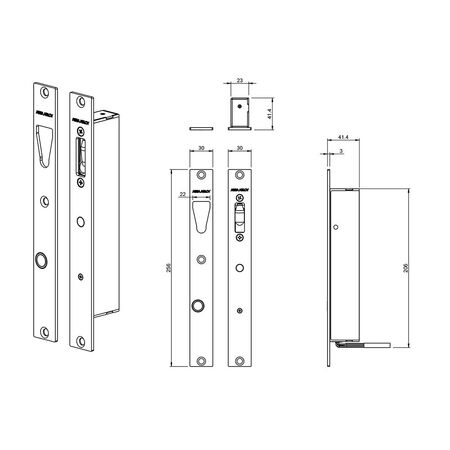

- Dimensions (H x L x W): 42mm x 256mm x 30mm
- Weight: 2.5 kg
Key Features
- Higher pre-load rating of 100kg for motorised unlocking
- Door Position Monitoring with NC contact
- Integrated LED lock status and diagnostics visual indication
- Increased door misalignment tolerance from 7mm to 12mm
- Weather resistant construction rated to IP53 for external door applications
- Simple one-step PTO/PTL onsite configuration
- Direct retrofit to original ES8000 model with same footprint
- Can be mounted vertically or horizontally (not floor mountable)
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure correct mounting orientation and integration with access control systems.
Applications
- Single and Double Swing hinge Doors
- Doors subject to Side Load (Pre-Load)
- Misaligned doors
- Glass doors
- Suitable for use with Access Control, Intercom, Keypad and Card Reader Systems
- Doors requiring door position monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Weather resistant design minimizes maintenance and replacement frequency
Warranty Information
5 years warranty.
Available Now
The LOCKWOOD ES8100 V-LOCK Fail Safe/Fail Secure Monitored Lock is available for immediate purchase, ideal for commercial and residential security door applications.
