LOCKWOOD HI-O Room Guard Mortice Lock | Hi-O Technology | Emergency Override Switches | Fire Rated 4 Hours | by LOCKWOOD
The LOCKWOOD HI-O Room Guard Mortice Lock features advanced Hi-O technology and emergency override switches, making it ideal for shared bathrooms in hospitals and laboratories requiring privacy. With a fire rating of up to 4 hours, this electronic lock ensures safety and security without the need for an external door controller, providing a fast and cost-effective installation solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOCKWOOD HI-O Room Guard Mortice Lock | Hi-O Technology | Emergency Override Switches | Fire Rated 4 Hours | by LOCKWOOD
Brand: LOCKWOOD
SKU: 3570ELHRG0SC
Alternatively Known As: Electronic Mortice Lock, Room Guard Locking System, Hi-O Mortice Lock, Privacy Door Lock
Technical Specifications
- Based on Hi-O technology platform by ASSA ABLOY
- Electronic lock control of multiple doors
- No external door controller required
- Power supply: 24Vdc
- Includes emergency override switches
- Fire rated up to 4 hours according to AS1905.1.2007
- Dimensions (H x L x W): 250mm x 50mm x 150mm
- Weight: 3 kg
Key Features
- One touch privacy
- All components supplied in one neat kit
- Plug and Play connectivity
- No requirement for external door controller or EAC system
- Fast, accurate and cost effective installation
- Successfully fire rated up to 4 hours on fire door
- Emergency override switches for external unlocking
Professional Installation Requirements
- Professional installation recommended to ensure correct connection of mortice locks, power supply, and emergency override switches.
Applications

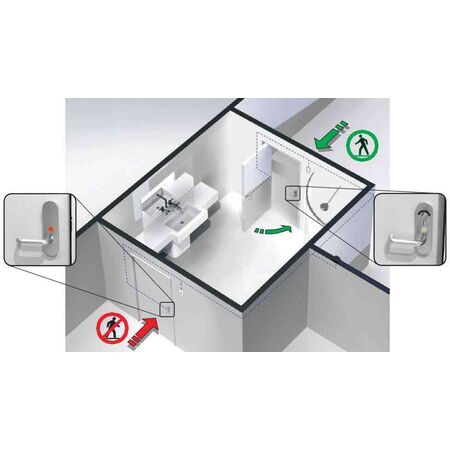

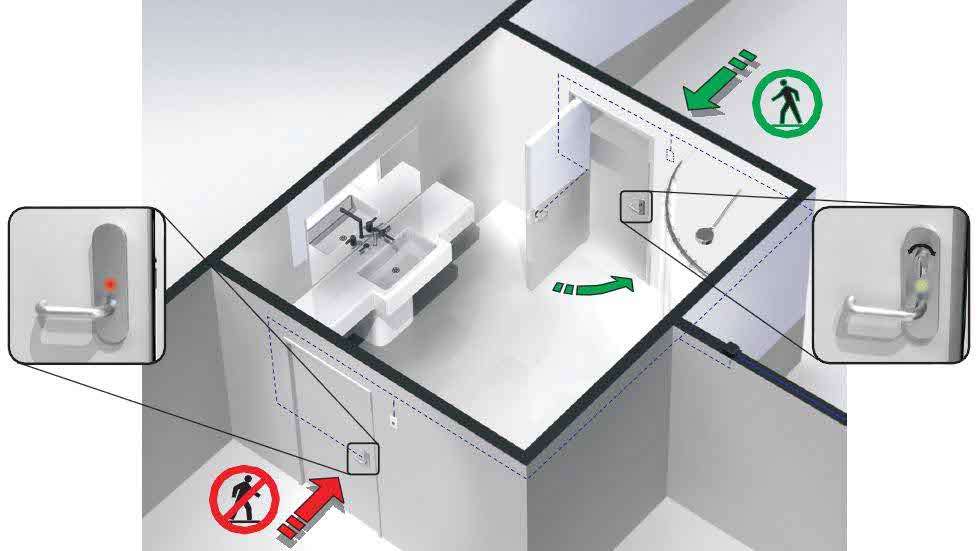

- Shared bathrooms in hospitals
- Conference rooms with dual entries
- Laboratories requiring privacy
Standards & Compliance
- Complies with AS1905.1.2007 for fire door assemblies
Environmental Benefits
- Plug and play system reduces installation waste and energy consumption.
- No need for additional door controllers lowers electronic waste.
Warranty Information
5 year warranty provided.
Available Now
The LOCKWOOD HI-O Room Guard Mortice Lock is available for immediate purchase, ideal for healthcare, commercial, and laboratory environments requiring secure privacy.
