Logic Controller 16 I/O | 7 Relay Outputs | 100-240V AC | USB Port by Clipsal
Logic controller with 16 inputs/outputs and 7 relay outputs—ideal for industrial automation and process control. Built for high durability, with a wide voltage range and USB port for easy programming.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

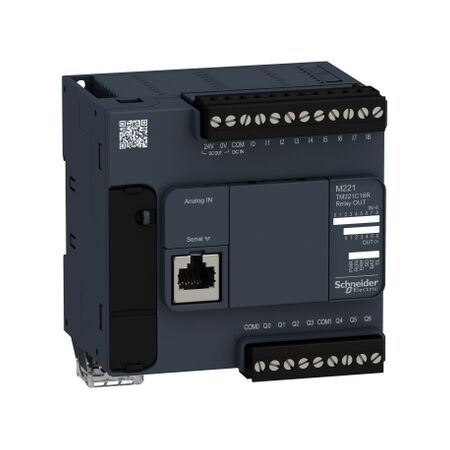

Product Name/Title: Modicon M221, Logic controller, 16 inputs/outputs, 7 relay outputs, 100…240 V AC
Brand: Clipsal
SKU: TM221C16R
Alternatively Known As: Modicon M221 Controller, M221 Logic Controller, Clipsal M221
Technical Specifications
- Inrush current: 40 A
- Electrical durability: 100000 cycles AC-12, 240 V, 480 VA, resistive
- Mechanical durability: 20000000 cycles for relay output
- Ambient air temperature for operation: -10...55 °C
- IP degree of protection: IP20
- Communication port protocol: Modbus master/slave - RTU/ASCII
- Discrete input number: 16
- Discrete output number: 7 relay
- Maximum power consumption: 46 VA at 100...240 V
- Dimensions (H x L x W): 90mm x 70mm x 95mm
- Weight: 0.346 kg
Key Features
- 16 inputs/outputs with 7 relay outputs
- USB port for easy programming
- Wide supply voltage range of 100...240 V AC
- High electrical durability with up to 300,000 cycles
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation
- Process control
- Building management systems
Standards & Compliance
- Complies with IEC 61131-2 for programmable controllers.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Modicon M221 Logic Controller is available now for immediate purchase. Ideal for industrial automation and control applications.
