Trade Discount 33%
Logic Controller 40 IO Relay | USB & Serial Ports | High Durability | Clipsal M221 by Clipsal
Logic controller with 40 IO relay, USB and serial communication ports—ideal for industrial automation and control systems. Built for high durability with up to 300,000 cycles, supporting multiple I/O expansion modules.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

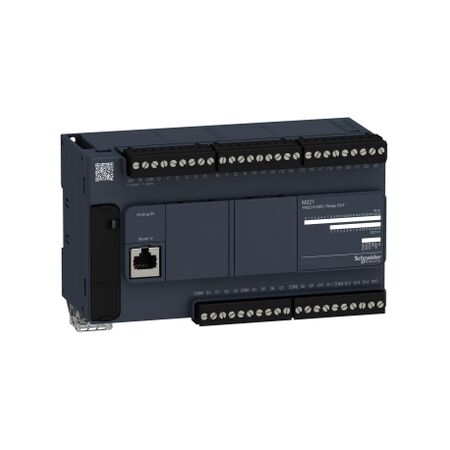

Product Name/Title: Modicon M221, Logic controller, 40 IO relay
Brand: Clipsal
SKU: TM221C40R
Alternatively Known As: Modicon M221 Controller, M221 Logic Controller, Clipsal M221 Relay
Technical Specifications
- Inrush current: 40 A
- Electrical durability: 100,000 cycles AC-12, 120 V, 240 VA, resistive
- Discrete input number: 24
- Discrete output number: 16 relay
- Supply voltage limits: 85...264 V
- Network frequency: 50/60 Hz
- Maximum power consumption: 67 VA at 100...240 V
- Ambient air temperature for operation: -10...55 °C
- IP degree of protection: IP20
- Dimensions (H x L x W): 90mm x 70mm x 160mm
- Weight: 0.456 kg
Key Features
- 40 I/O relay logic controller
- USB and serial communication ports
- High electrical durability with up to 300,000 cycles
- Wide operating temperature range from -10 to 55 °C
- Supports multiple I/O expansion modules
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Building management systems
- Process control applications
Standards & Compliance
- Complies with IEC 61131-2 for programmable controllers.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon M221 Logic Controller with 40 IO Relay is available now for immediate purchase. Ideal for industrial automation applications.
