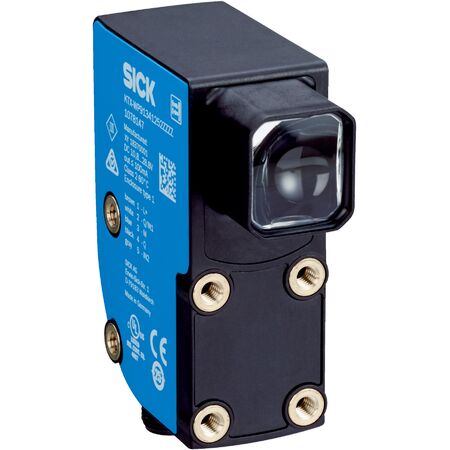

Long Distance Proximity Sensor KTX-WP91341242ZZZZ | IP67 Rated | RGB LED Light Source | 50 kHz Switching Frequency | by SICK
The KTX-WP91341242ZZZZ long distance proximity sensor is designed for industrial automation, featuring a sensing distance of up to 40 mm and a fast response time of 10 µs. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Output type: PNP with max output current 100 mA
- Protection class: III
- Housing material: VISTAL®
- Optics material: Glass
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from the long side of housing with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Adjustable delay time and light/dark switching output function
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for dust and water protection
- High switching frequency of 50 kHz and fast response time of 10 µs
- Reverse polarity and short-circuit protected output
- Operating temperature range from -20 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Standard sensing applications requiring long sensing distance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK KTX-WP91341242ZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable long-distance detection.
