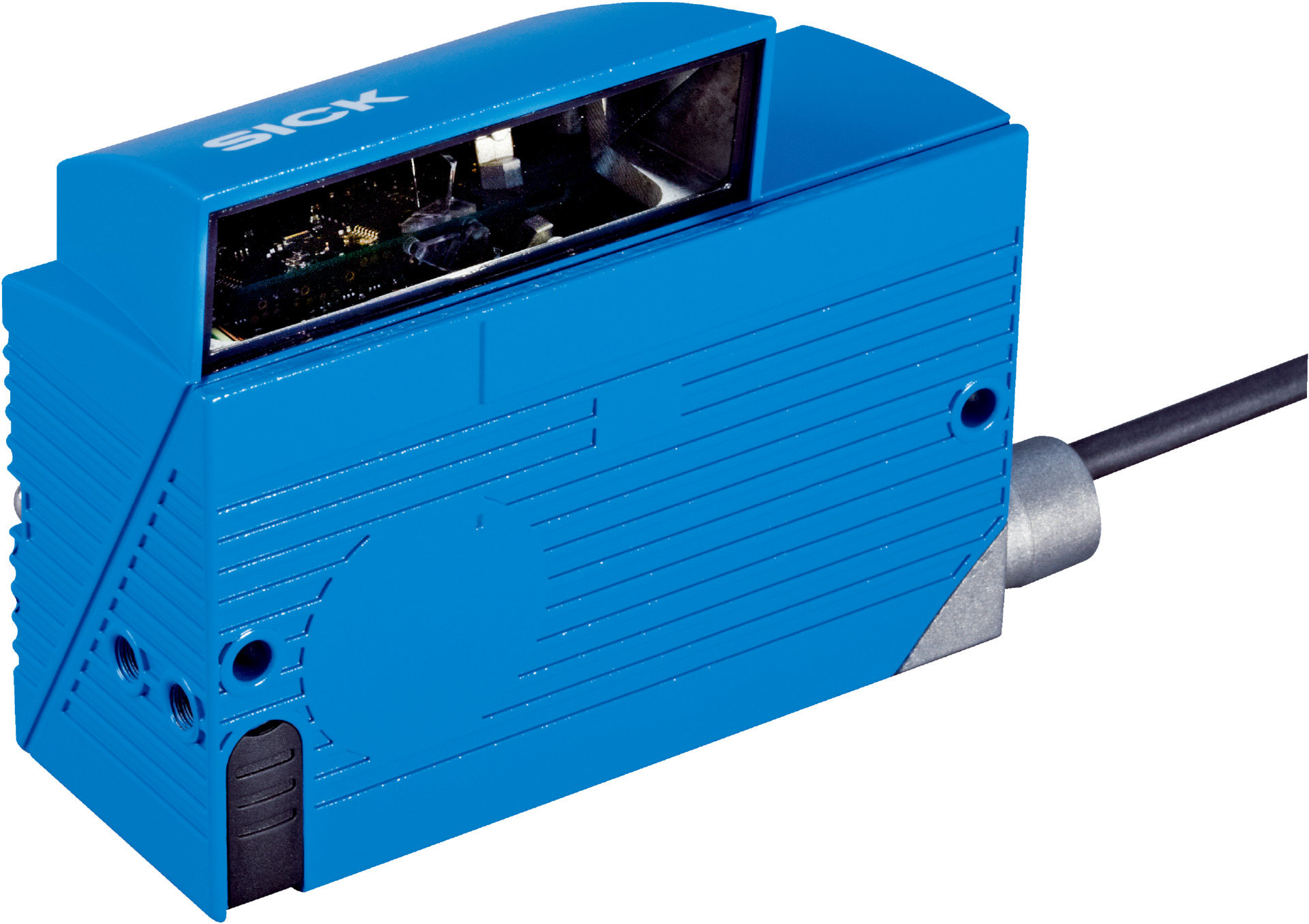

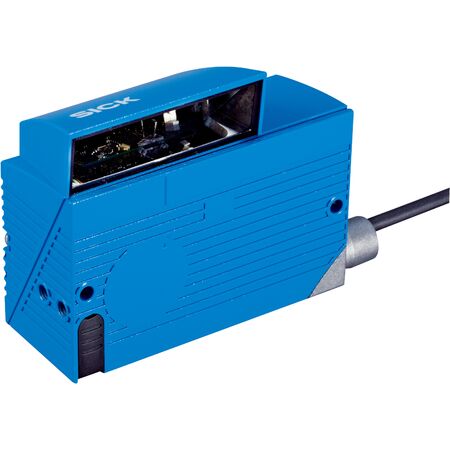

Long Range Barcode Scanner CLV615-D2540 | 105° Side Reading | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV615-D2540 is designed for industrial automation, featuring a 105° side reading field and robust aluminum housing with an IP65 rating. With a high scanning frequency of 400 Hz to 1000 Hz, it efficiently reads all current 1D barcode types, making it ideal for logistics, warehouse management, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV615-D2540 | 105° Side Reading | IP65 Rated | by SICK
Brand: SICK
SKU: 1091389
Alternatively Known As: SICK Long Range Barcode Scanner, CLV615 Laser Scanner, Industrial Line Scanner, PROFINET Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Cable with 5-pin M12 POWER and dual 4-pin M12 PROFINET connectors
- Reading field: Side 105°
- Sensor type: Line scanner
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm, Laser class 2
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 310.5 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1500
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET Single and Dual Port, 2 digital inputs, 4 digital outputs
- Configuration software: SOPAS ET
- Optional MicroSD memory card
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Side reading field of 105°
- Visible red laser light source (655 nm), Laser class 2
- High scanning frequency from 400 Hz to 1000 Hz
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN
- Robust aluminum die cast housing with IP65 rating
- Multiple PROFINET communication ports with 100 MBit/s full-duplex Ethernet
- Supports up to 50 codes per reading interval and 1500 characters
- Equipped with 5 LEDs for optical indicators
- Optional MicroSD memory card for data storage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (5 W)
- Durable construction reduces replacement frequency and waste
- Complies with laser safety standards minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV615-D2540 Long Range Line Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
