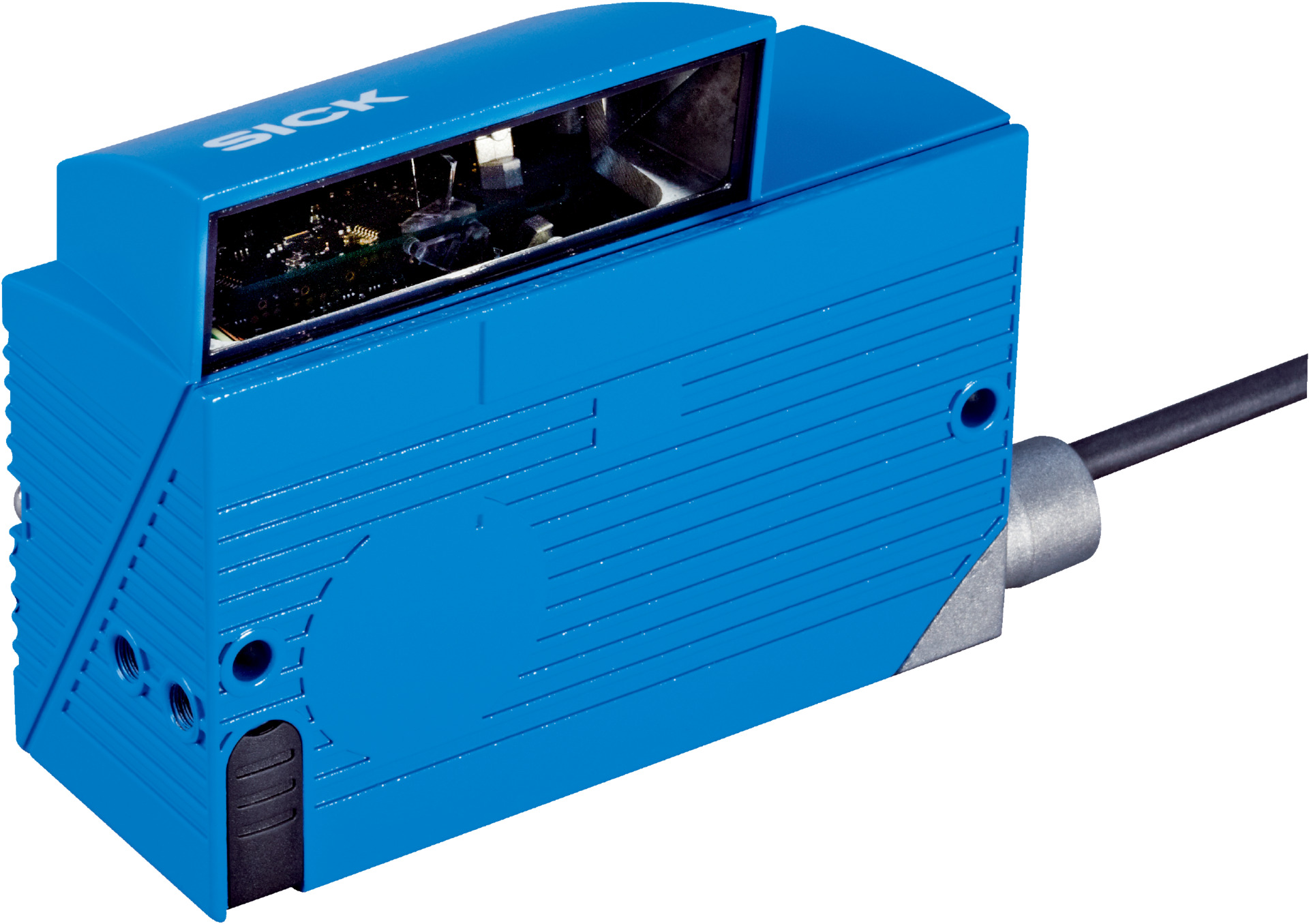

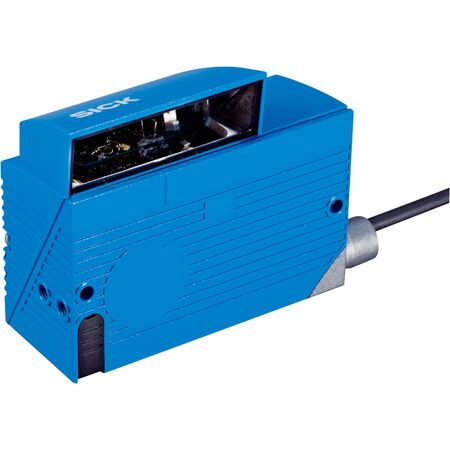

Long Range Barcode Scanner CLV615-D2520 | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV615-D2520 is designed for industrial automation, featuring a fixed optical focus and robust aluminum housing with an IP65 rating. With a high scanning frequency of 400 Hz to 1000 Hz, it efficiently reads 1D barcodes including Code 39 and UPC, making it ideal for logistics, warehouse management, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 5-pin M12 POWER plug, 4-pin M12 PROFINET connectors, and Micro USB
- Reading field: Side 105°
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 310.5 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET Single and Dual Port, USB service interface
- Digital inputs: 2
- Digital outputs: 4
- Optical indicators: 5 LEDs
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including PROFINET and USB
- Laser class 2 with visible red light source at 655 nm
- High code resolution between 0.35 mm and 0.5 mm
- Capable of reading up to 50 codes per reading interval
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption of 5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV615-D2520 Long Range Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
