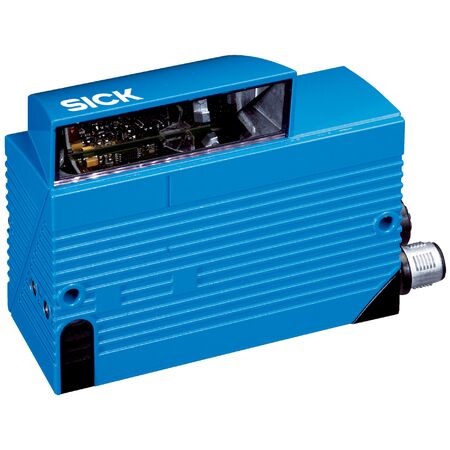

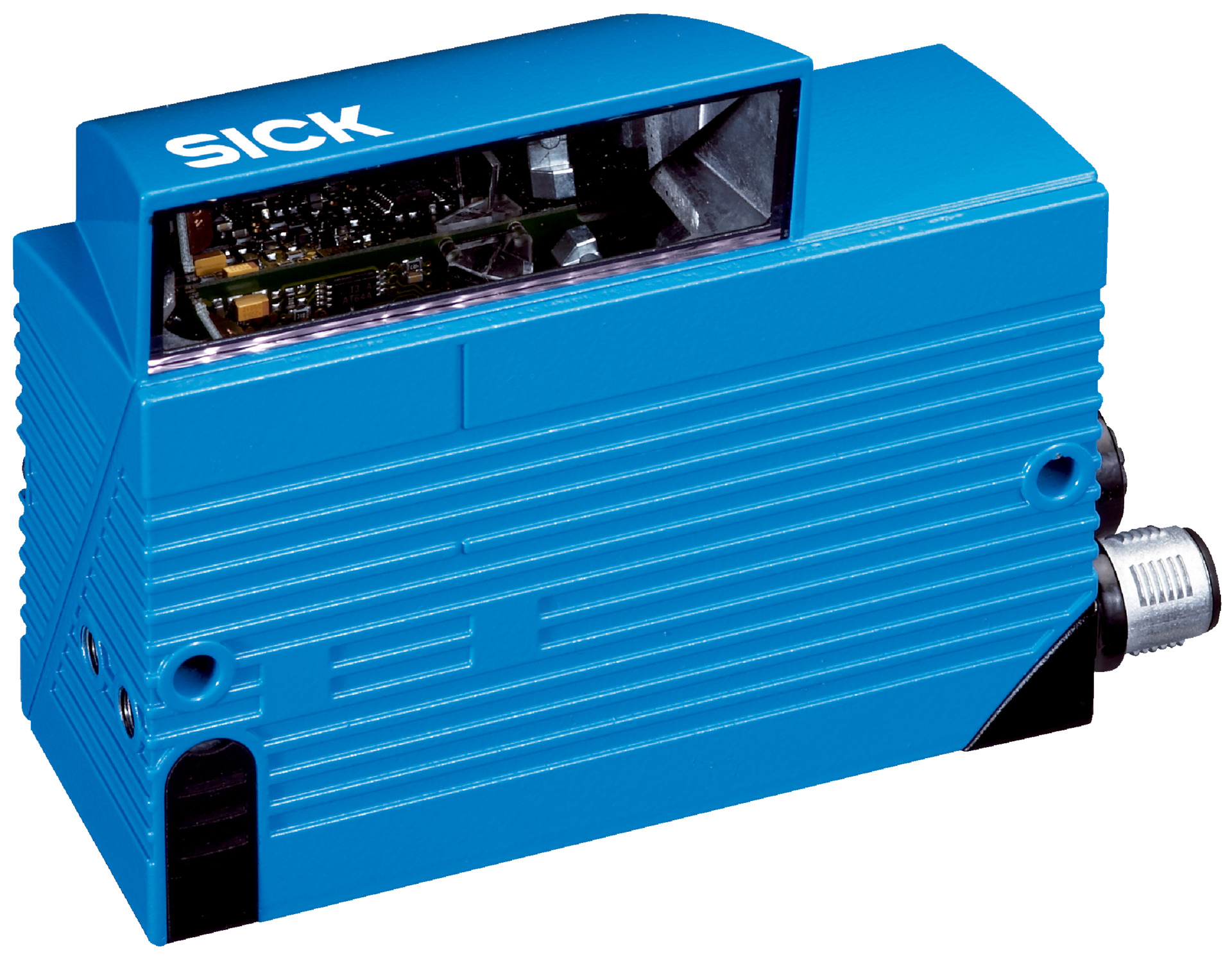

Long Range Barcode Scanner CLV618-I2150 | IO-Link & USB | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV618-I2150 is designed for industrial automation, featuring IO-Link and USB connectivity for versatile applications. With a robust aluminum housing and IP65 protection, it excels in logistics and manufacturing environments, ensuring reliable barcode reading across various 1D code types. Its high scanning frequency and fixed optical focus make it an essential tool for quality control and package tracking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: IO-Link, USB, Sensor connections
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 3.2 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (EN 60950-1/EN 62368-1)
- Weight: 260 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of characters per reading interval: 31
- Interfaces: IO-Link V1.1, USB, digital inputs and outputs
- Ambient operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- EMC: EN 61000-6-4:2019 / EN 61000-6-2:2019
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.26 kg
Key Features
- Long range line scanner with fixed optical focus
- IO-Link V1.1 communication interface with COM3 data transmission
- Visible red laser light source (655 nm) with laser class 2
- High scanning frequency from 400 Hz to 1000 Hz
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN
- Robust aluminum die cast housing with IP65 protection
- Multiple connection options including IO-Link, sensor, and USB
- EMC compliant and vibration/shock resistant for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and product identification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption of 3.2 W
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV618-I2150 Long Range IO-Link Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
