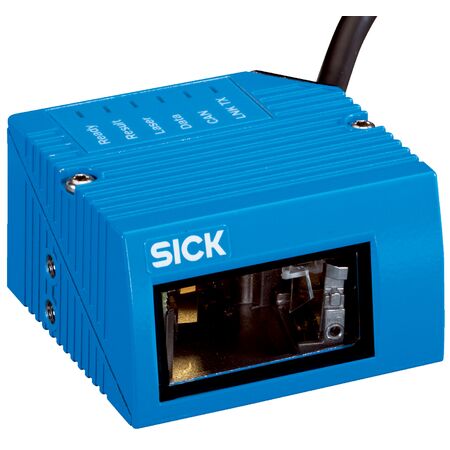

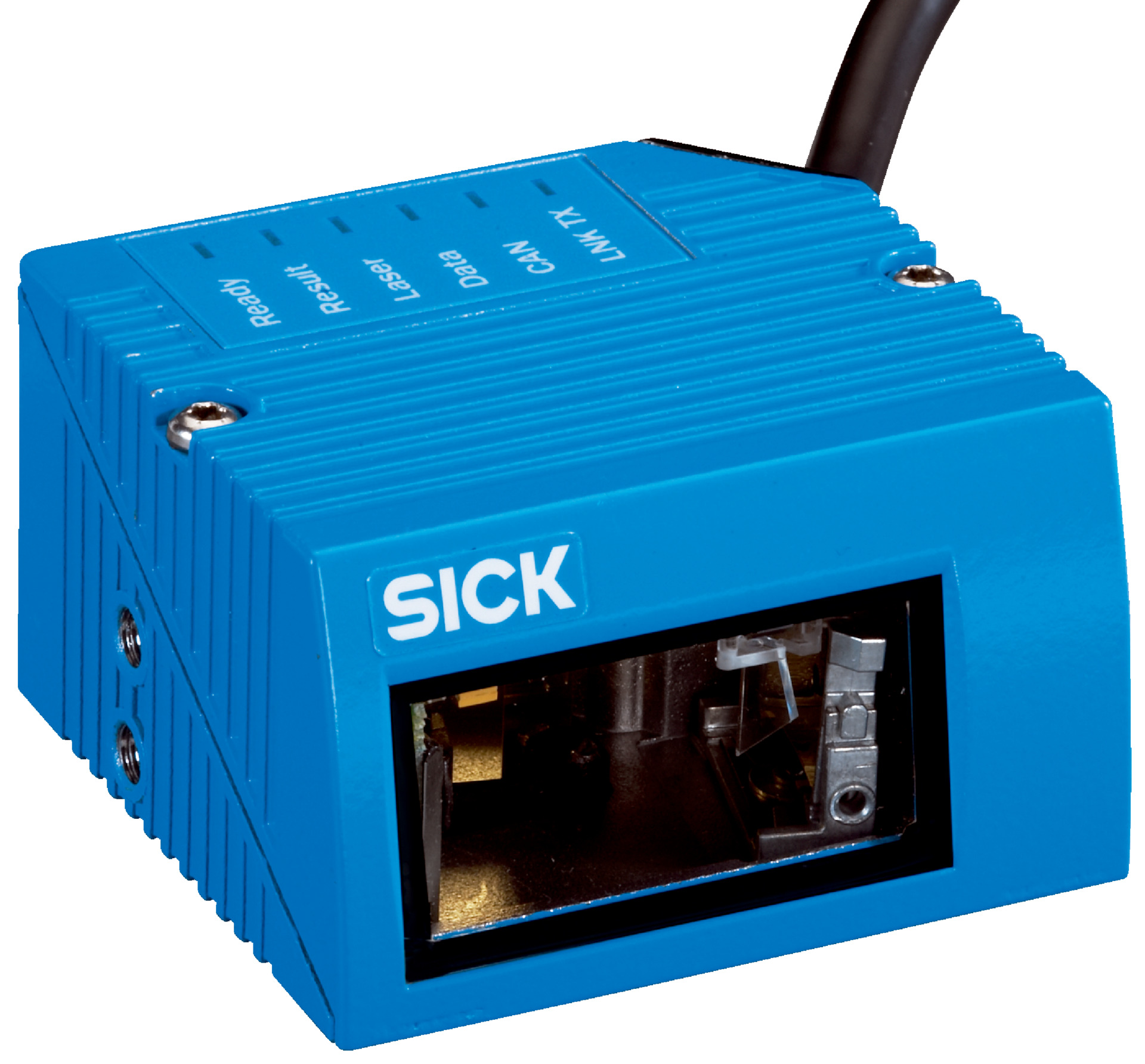

Long Range Barcode Scanner CLV621-1000 | Fixed Optical Focus | IP65 Protection | by SICK
The Long Range Barcode Scanner CLV621-1000 is designed for industrial automation, featuring a fixed optical focus and the ability to read 1D barcodes including Code 39 and Code 128. With a high scanning frequency of 400 Hz to 1,200 Hz and robust aluminum housing with IP65 protection, it's perfect for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and lines at distance: 15 mm, 8 lines at 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Ambient operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.225 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light source at 655 nm
- 6 LED optical indicators and acoustic beeper for status feedback
- Wide ambient operating temperature range from 0°C to +40°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption at 4.5 W supports energy efficiency
- Complies with laser safety standards to minimize environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV621-1000 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
