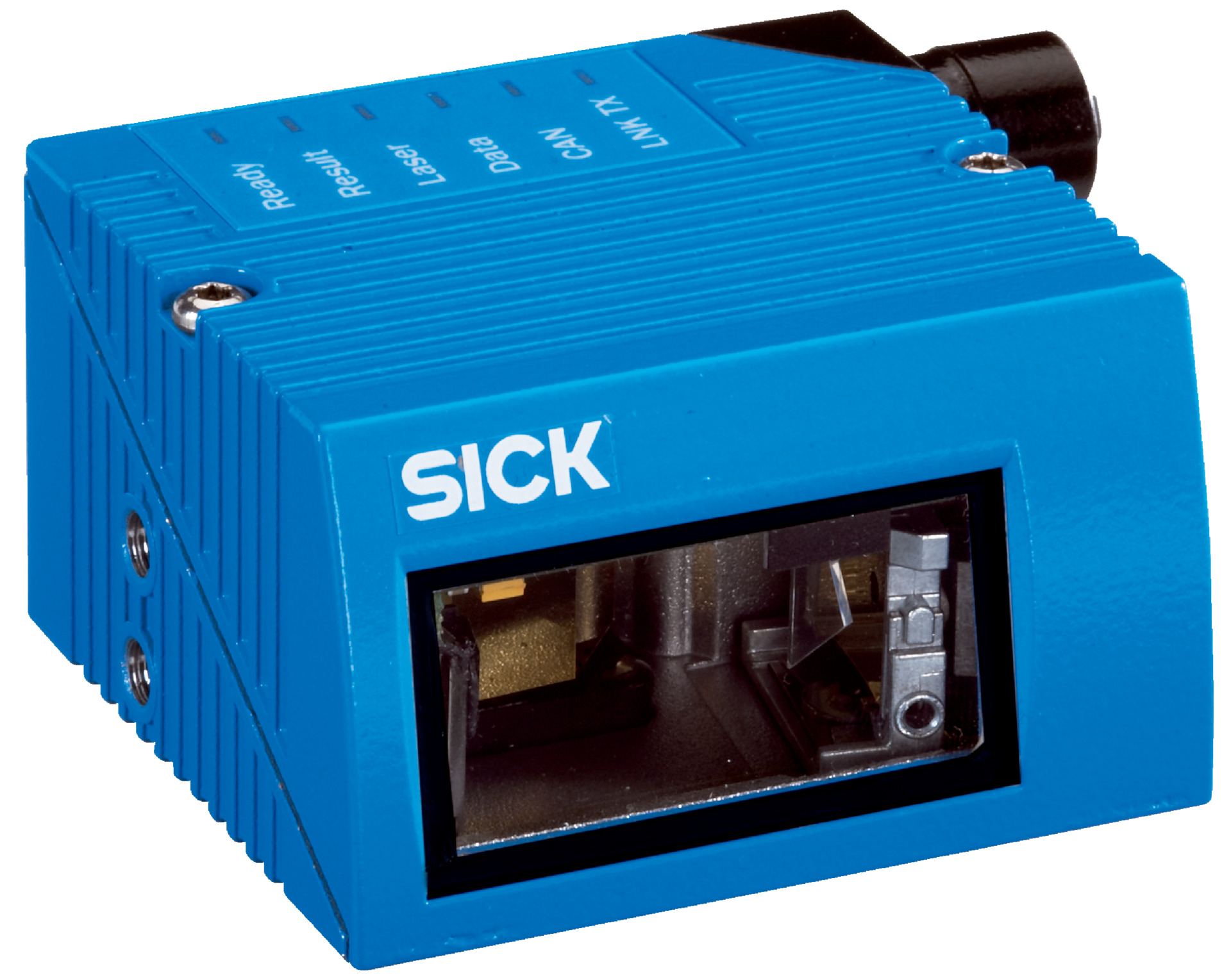

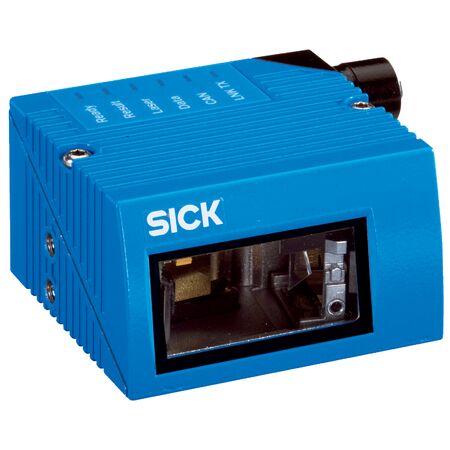

Long Range Barcode Scanner CLV621-1120 | Ethernet Connection | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV621-1120 is designed for industrial automation, featuring a robust Ethernet connection and an IP65-rated aluminum housing. With a scanning frequency of 400 Hz to 1200 Hz and the ability to read 1D barcodes from 60 mm to 730 mm, it’s perfect for logistics, manufacturing, and quality assurance applications. This scanner ensures reliable performance in demanding environments, making it an essential tool for efficient barcode reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV621-1120 | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1041787
Alternatively Known As: SICK Long Range Barcode Scanner, CLV621 Raster Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and lines: 15 mm, 8 lines at 200 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1500
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1200 Hz
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Light source: visible red laser spot (655 nm), laser class 2
- High code resolution from 0.35 mm to 1 mm
- Supports reading distances from 60 mm to 730 mm
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable IP65 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV621-1120 Long Range Raster Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
