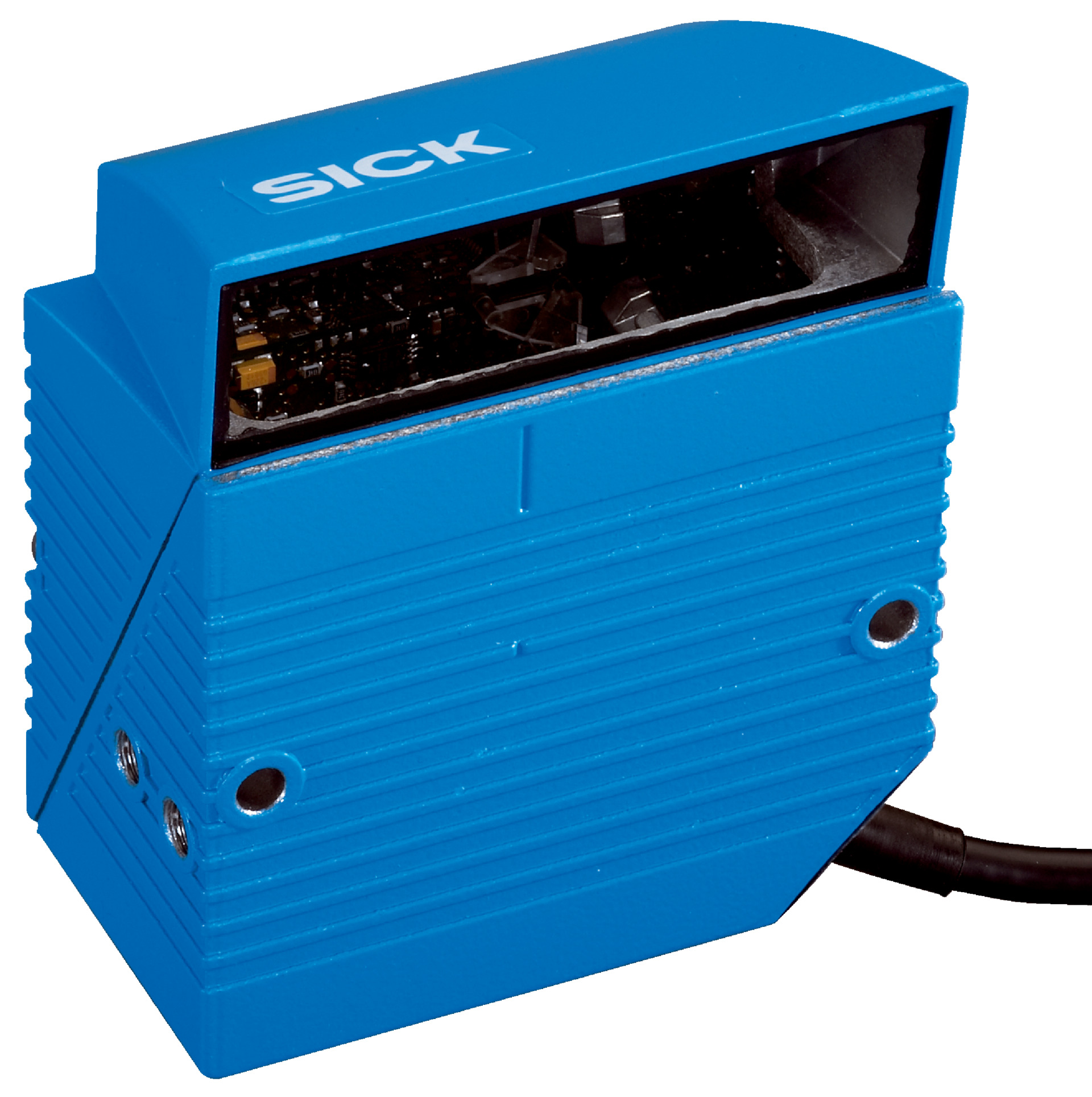

Long Range Barcode Scanner CLV621-3000 | Fixed Optical Focus | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV621-3000 is designed for industrial automation, featuring a fixed optical focus and the ability to read 1D barcodes including Code 39 and Code 128. With a robust aluminum housing and an IP65 rating, it’s perfect for logistics and warehouse management, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV621-3000 | Fixed Optical Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1041790
Alternatively Known As: SICK CLV621, CLV621 Raster Scanner, Long Range Barcode Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and number of lines at distance: 15 mm, 8 lines at 185 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1,200 Hz
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Visible red laser light source (655 nm), laser class 2
- Digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV621-3000 Long Range Raster Scanner is available for immediate purchase, ideal for industrial and logistics barcode scanning applications.
