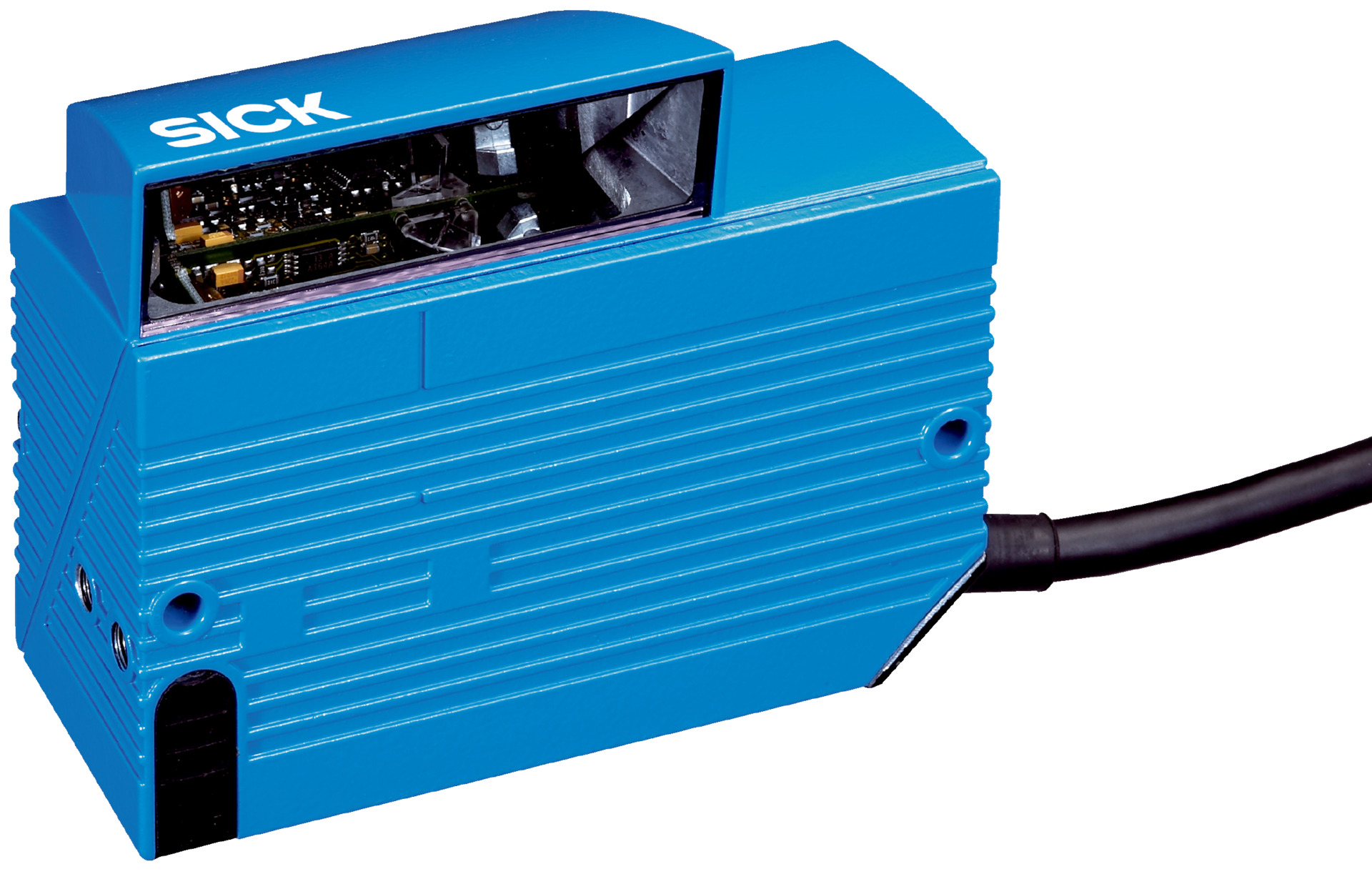

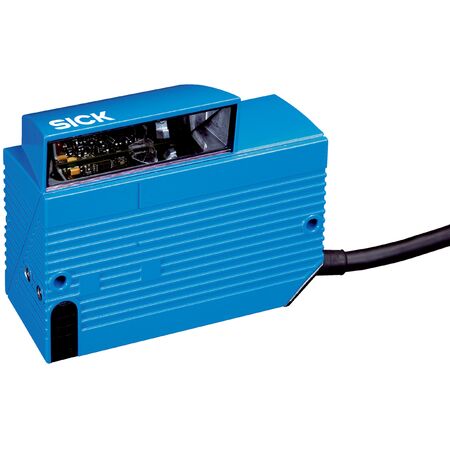

Long Range Barcode Scanner CLV630-3000 | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV630-3000 is designed for industrial applications, featuring a fixed optical focus and an impressive scanning frequency of 400 Hz to 1,200 Hz. With its robust aluminum die cast housing and IP65 protection, this scanner is perfect for automated production lines, logistics, and quality control, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV630-3000 | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041974
Alternatively Known As: Long Range Barcode Scanner, Raster Scanner CLV630, Industrial Barcode Reader, SICK CLV Series Scanner
Technical Specifications
- Reading field: Side (105°)
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Interfaces: PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP, Serial (RS-232, RS-422, RS-485)
- Digital inputs: 4
- Digital outputs: 4
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 protection
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Laser class 2 with visible red light spot at 655 nm
- Digital inputs and outputs for flexible integration
- Configurable via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper integration and safety compliance.
Applications
- Industrial barcode scanning for 1D codes
- Automated production lines requiring long-range code reading
- Logistics and warehouse management systems
- Quality control and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-3000 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and versatile connectivity.
