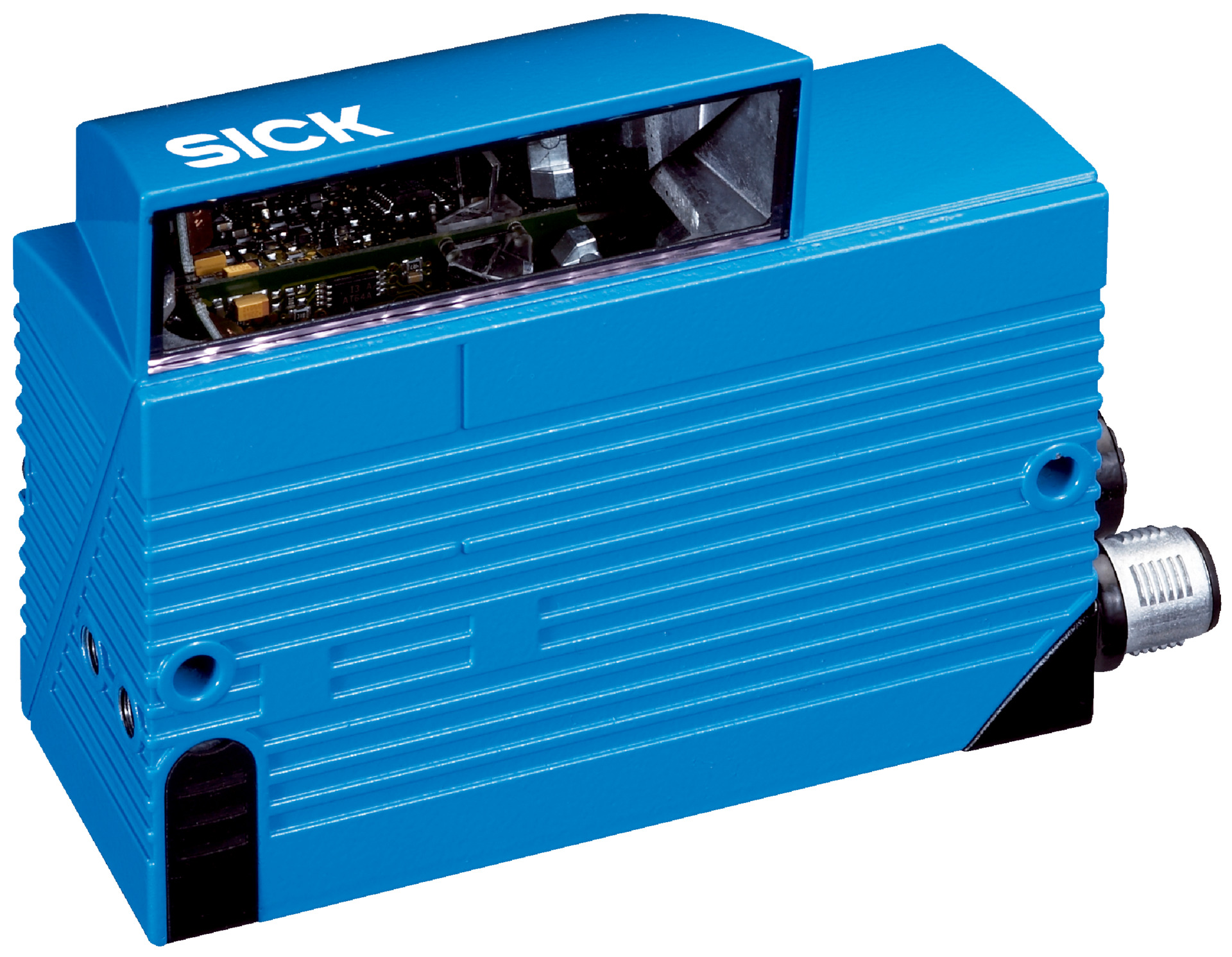

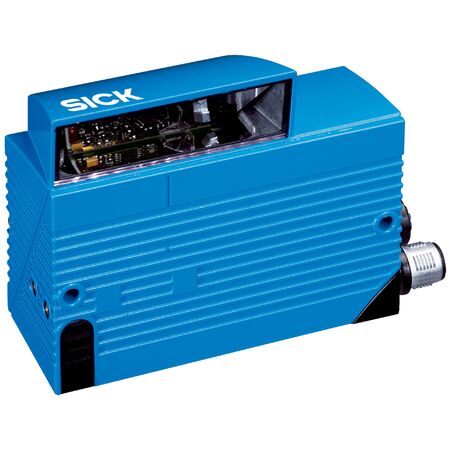

Long Range Barcode Scanner CLV630-3120 | Ethernet Connectivity | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV630-3120 is designed for industrial automation, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a reading distance of 44 mm to 683 mm and a high scanning frequency of 400 Hz to 1200 Hz, it excels in logistics, warehouse management, and manufacturing process control, ensuring efficient barcode reading and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV630-3120 | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041975
Alternatively Known As: SICK Long Range Barcode Scanner, CLV630 Raster Scanner, Industrial Ethernet Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height: 15 mm at 8 lines, 185 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Long range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution from 44 mm to 683 mm
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot at 655 nm
- Multiple digital inputs and outputs with LED and acoustic indicators
- MicroSD memory card support for configuration
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 5 W power consumption reduces operational costs
- Durable IP65 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-3120 Long Range Raster Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
