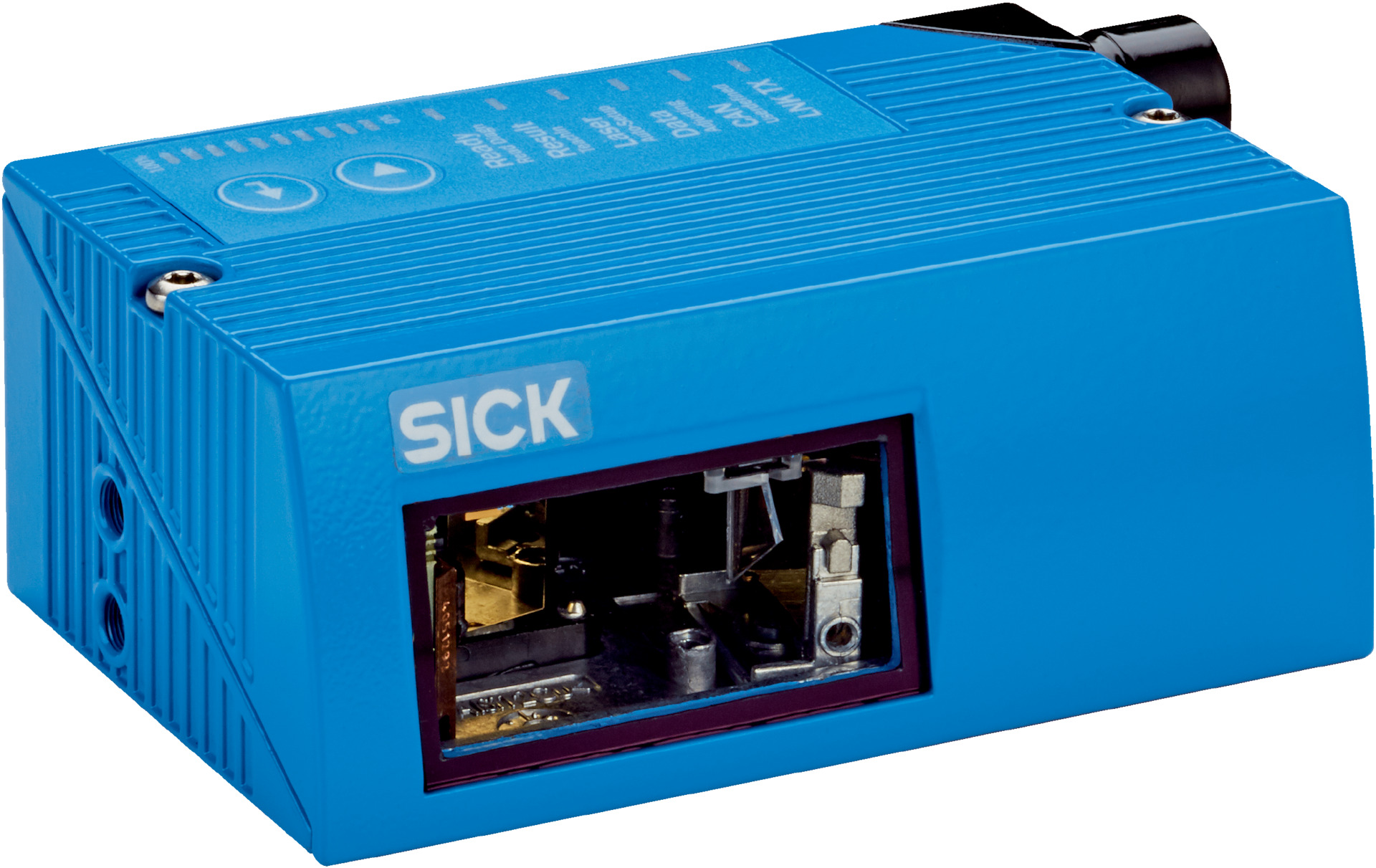

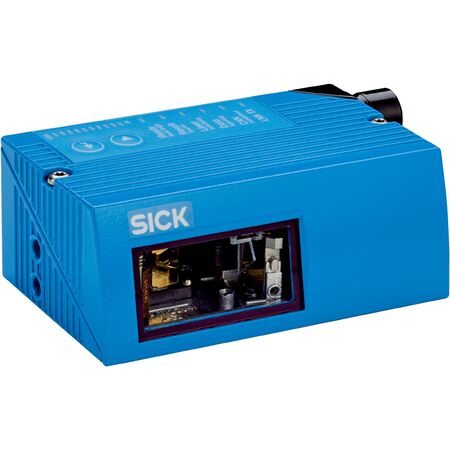

Long Range Barcode Scanner CLV630-1120 | Ethernet Connectivity | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV630-1120 is designed for industrial automation, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types, it’s perfect for logistics, warehouse management, and manufacturing process control. This scanner ensures reliable performance and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV630-1120 | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1041971
Alternatively Known As: SICK Long Range Barcode Scanner, CLV630 Raster Scanner, Industrial Barcode Reader, Ethernet Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: Class 2 (EN 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height: 15 mm at 8 lines, 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.35 mm to 1 mm)
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 5 W reduces energy usage
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with international EMC and safety standards ensuring minimal environmental interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-1120 Long Range Raster Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode reading applications.
