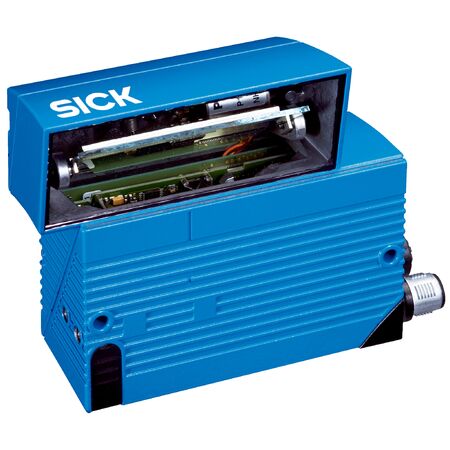

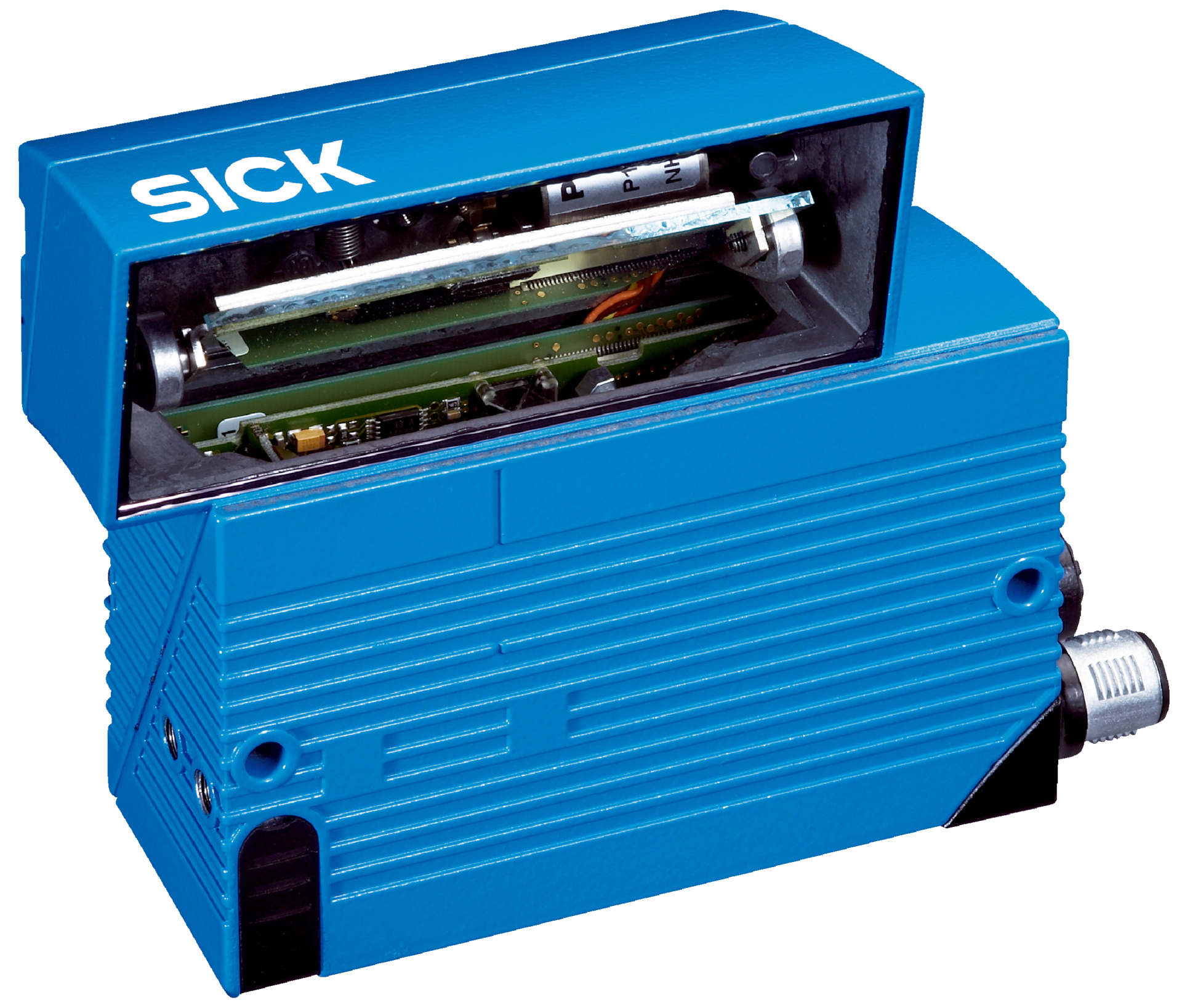

Long Range Barcode Scanner CLV630-6120 | Ethernet Connection | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV630-6120 is designed for industrial automation, featuring a robust Ethernet connection and an oscillating mirror for versatile scanning. With the ability to read all current 1D barcode types and a high scanning frequency of up to 1200 Hz, it’s perfect for logistics, manufacturing, and quality assurance applications. Built with an IP65-rated aluminum housing, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner CLV630-6120 | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1041977
Alternatively Known As: SICK CLV630, SICK Long Range Barcode Scanner, Ethernet Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable), oscillating (variable/fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Long range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Reads all current 1D barcode types including GS1 DataBar and Pharmacode
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- High scanning frequency from 400 Hz to 1200 Hz
- Laser class 2 with visible red light spot at 655 nm
- Robust aluminum die cast housing with IP65 protection
- 6 LEDs and acoustic beeper indicators for status and results
- Supports up to 50 codes per reading interval and up to 5000 characters
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and electrical safety is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission reducing paper and manual processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-6120 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
