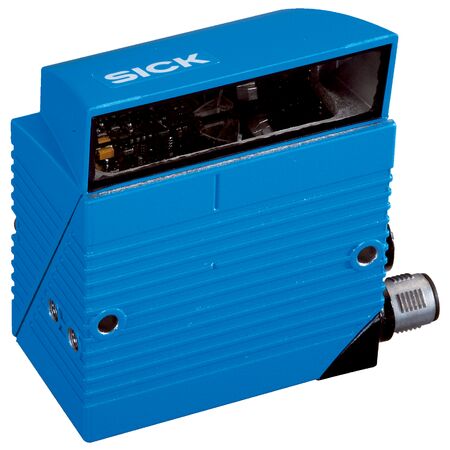

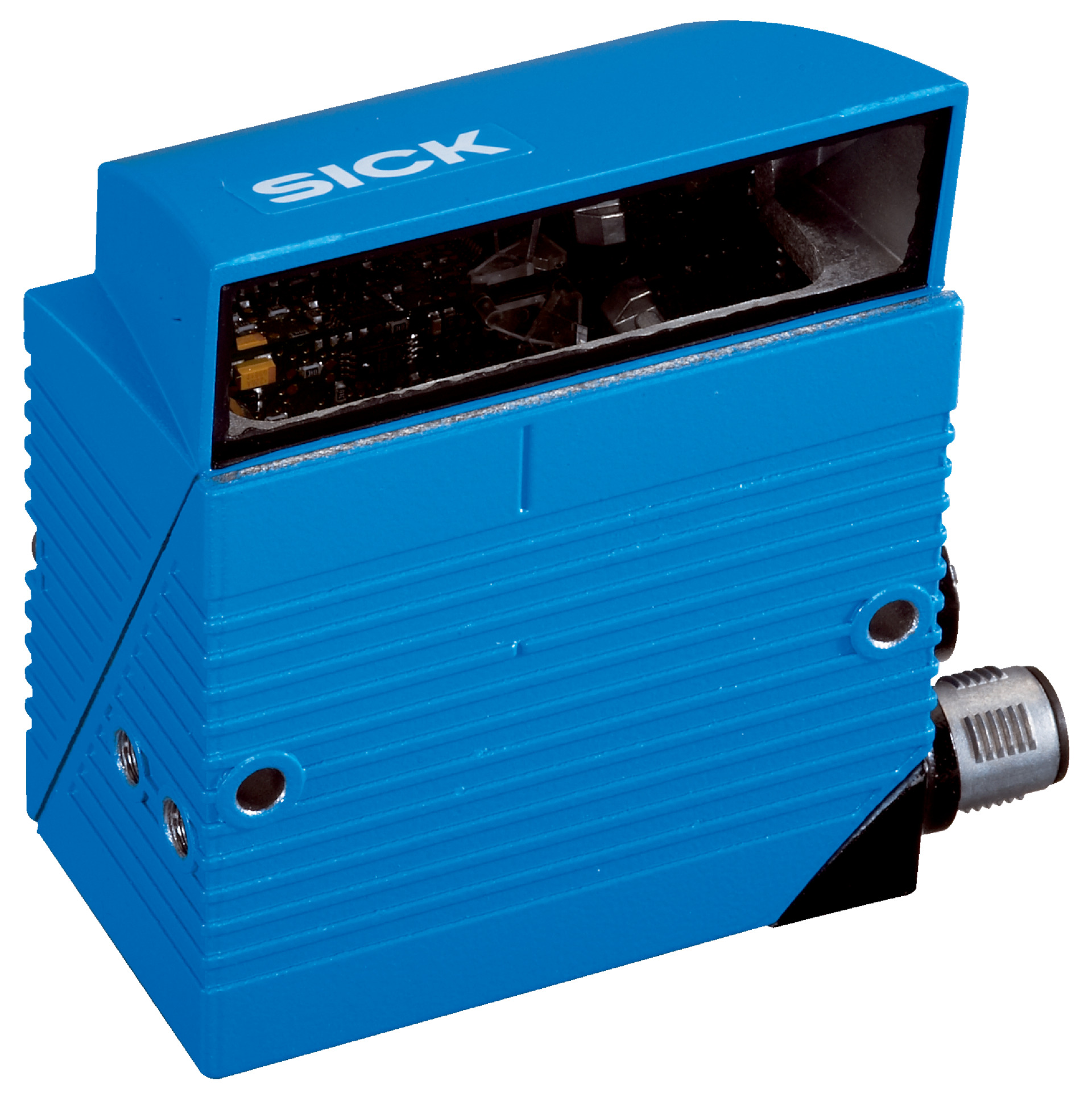

Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV621-2120 is designed for industrial automation, featuring an Ethernet connection and robust IP65-rated housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read 1D barcodes with resolutions from 0.35 mm to 1 mm, it's perfect for logistics, manufacturing process control, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041789
Alternatively Known As: SICK CLV621, SICK Long Range Barcode Scanner, Ethernet Line Scanner, Industrial Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side 105°
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, visible red 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 230 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Digital inputs: 3
- Digital outputs: 2
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution from 0.35 mm to 1 mm
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Light spot laser source, visible red at 655 nm, laser class 2 compliant
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 1,500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy-efficient operation with low power consumption of 4.5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV621-2120 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
