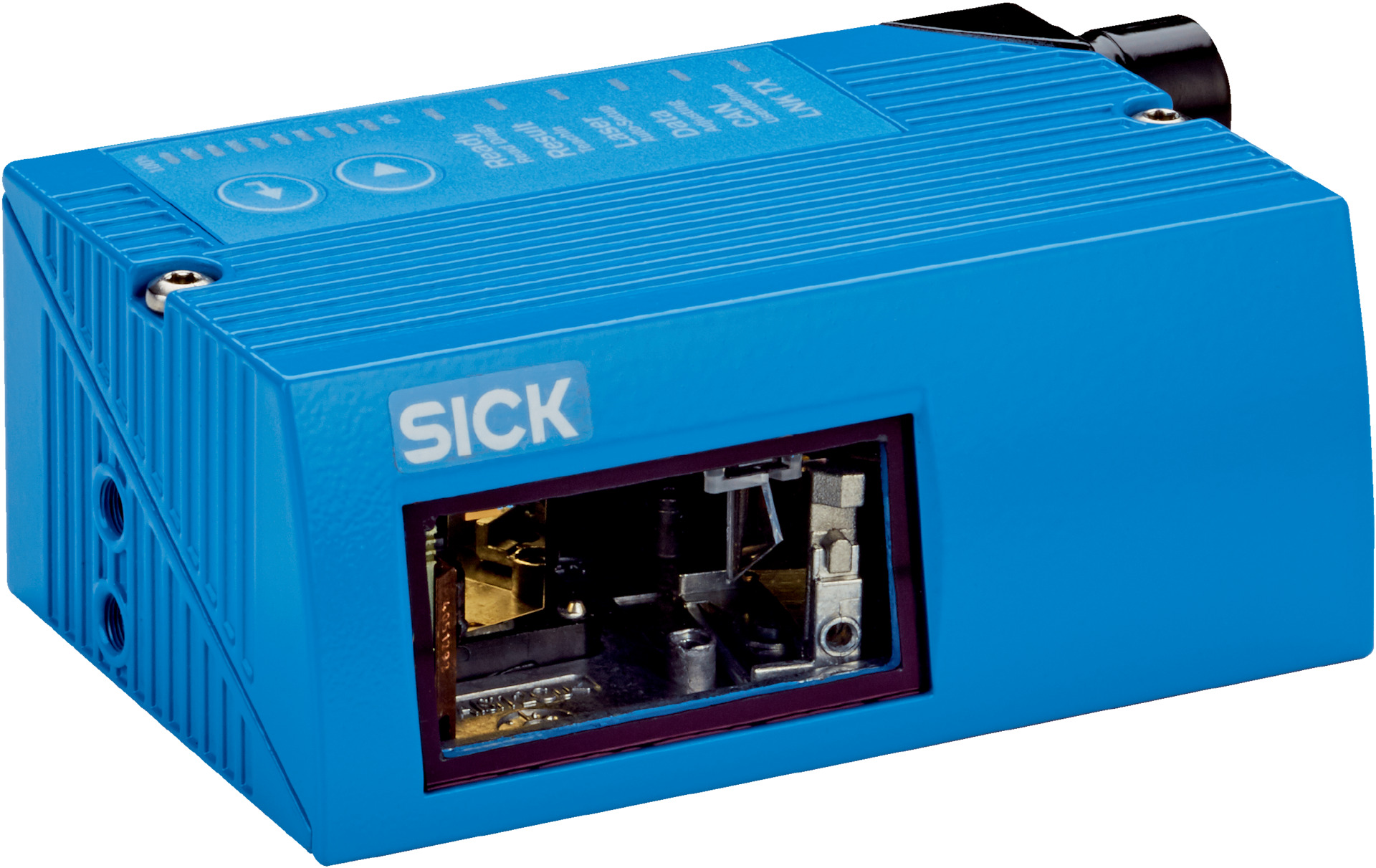

Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
The Long Range Barcode Scanner is designed for industrial automation, featuring an Ethernet connection and an IP65 rated aluminum housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, manufacturing process control, and quality assurance. Built for durability and efficiency, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
Brand: SICK
SKU: 1048440
Alternatively Known As: SICK Long Range Barcode Scanner, SICK Ethernet Line Scanner, CLV630 Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, laser class 2
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Oval laser light spot with 655 nm visible red laser
- IP65 rated aluminum die cast housing for robust industrial use
- Multiple digital inputs and outputs with configurable indicators
- Supports microSD memory card for configuration
- Complies with laser safety class 2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup, compliance with electrical standards, and optimal device performance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient 5W power consumption minimizes operational energy use
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

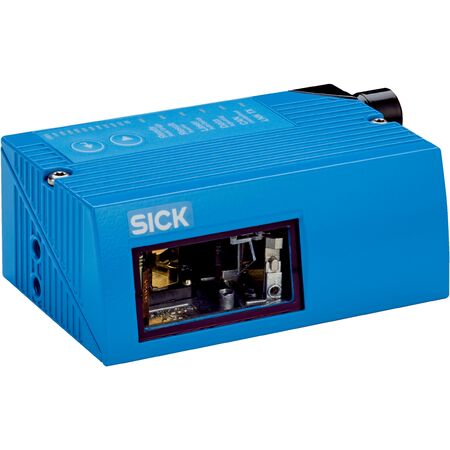

The SICK CLV630-0121S01 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
