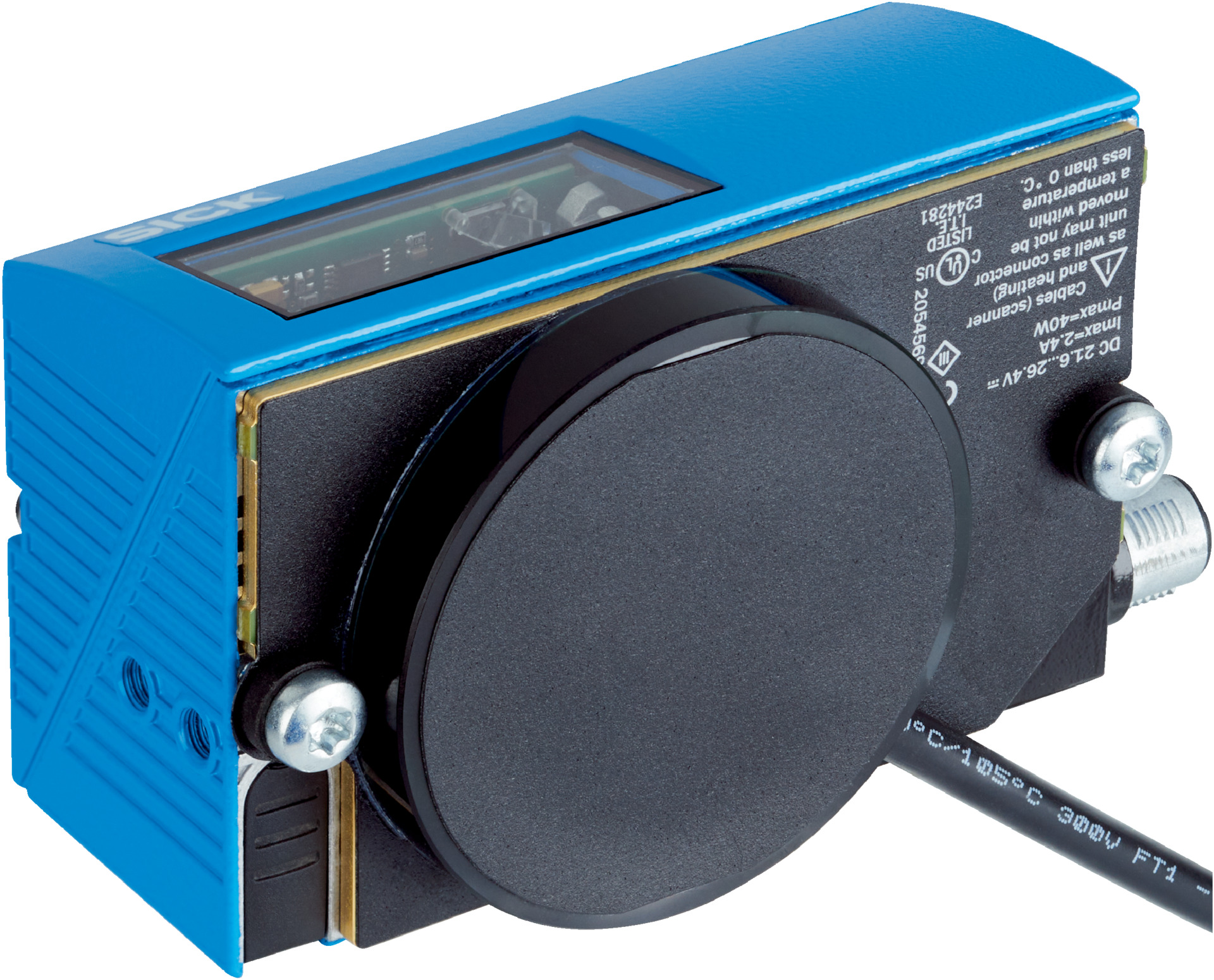

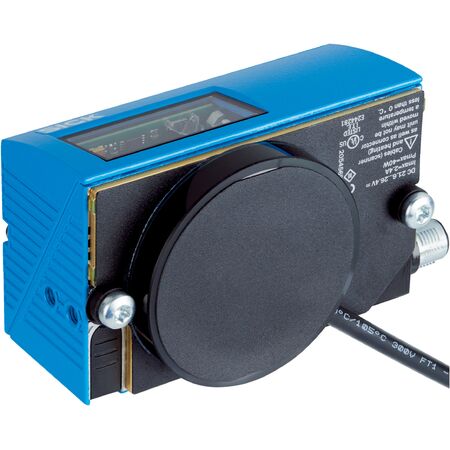

Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV630-0120F0 is designed for industrial automation, featuring an Ethernet connection and a reading distance of 60 mm to 735 mm. With a high scanning frequency of 400 Hz to 1200 Hz and IP65 rated aluminum housing, it’s perfect for cold storage and manufacturing applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 connectors, 1 x open-ended cable
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, Class 2 laser
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC, ±10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 auto-discriminating
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Long range reading distance from 60 mm to 735 mm
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Fixed optical focus with visible red laser light spot (655 nm)
- High scanning frequency from 400 Hz to 1200 Hz
- Supports reading of all current 1D barcode types
- Heating for cold storage applications
- IP65 rated aluminum die cast housing for robust industrial use
- Multiple digital and acoustic indicators for status and results
- MicroSD memory card support for configuration
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- High-speed code reading in manufacturing lines
- Logistics and warehouse scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 40 W
- Durable aluminum housing reduces need for frequent replacements
- Supports cold storage applications reducing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV630-0120F0 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage and manufacturing.
