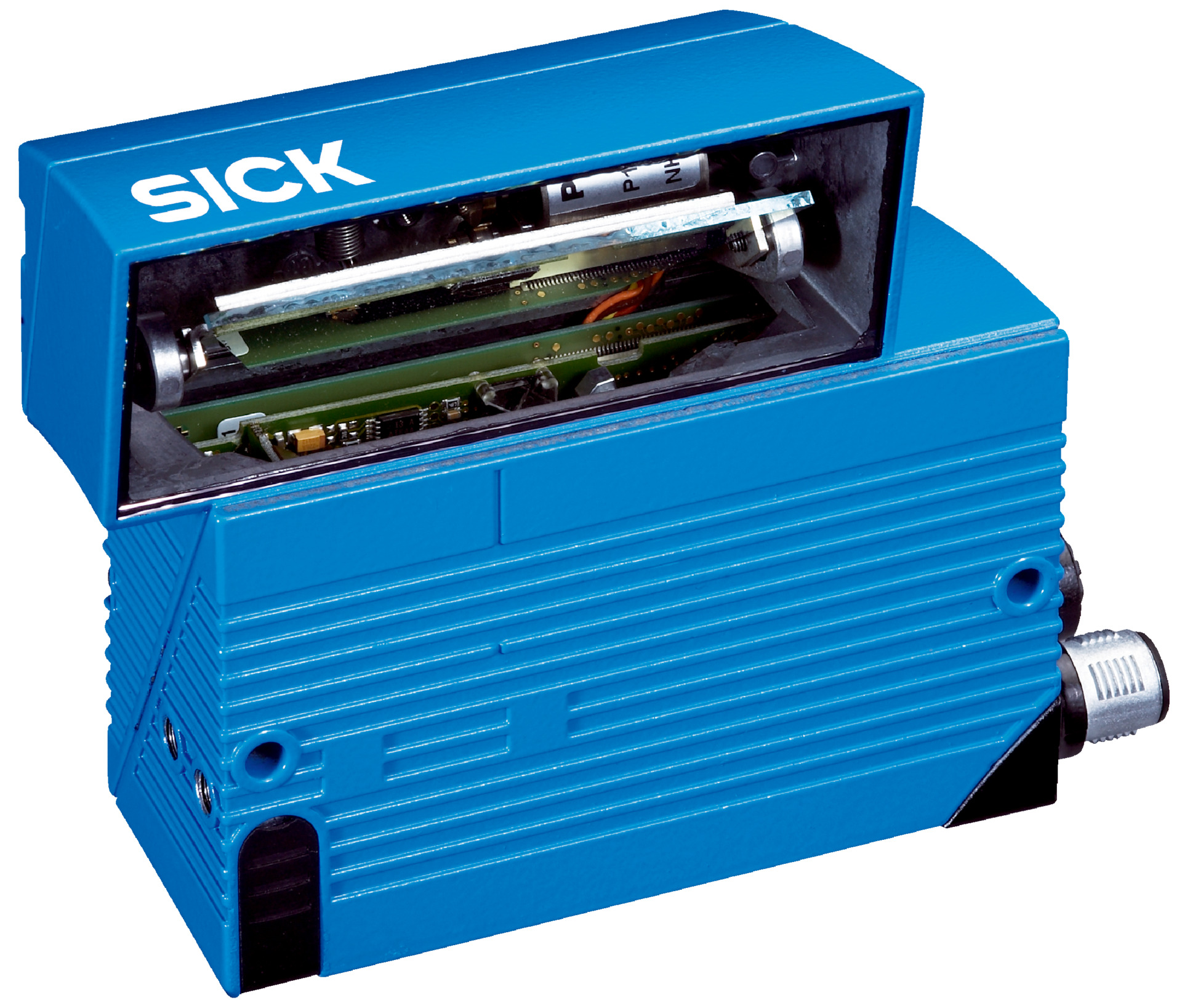

Long Range Barcode Scanner | Ethernet Connection | IP65 Rated | by SICK
The Long Range Barcode Scanner is designed for industrial automation, featuring an Ethernet connection and a fixed optical focus for precise reading. With the ability to read 1D barcodes and a high scanning frequency of 400 Hz to 1200 Hz, it's perfect for logistics, quality control, and packaging verification. Built with an IP65 rated aluminum housing, this scanner ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot shape: Oval
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 350 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Long range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- High scanning frequency from 400 Hz to 1200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial Ethernet and laser safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Quality control in manufacturing
- Packaging and labeling verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

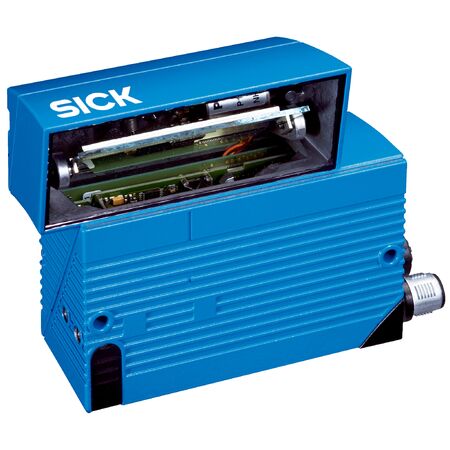

The SICK CLV630-6121S01 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
