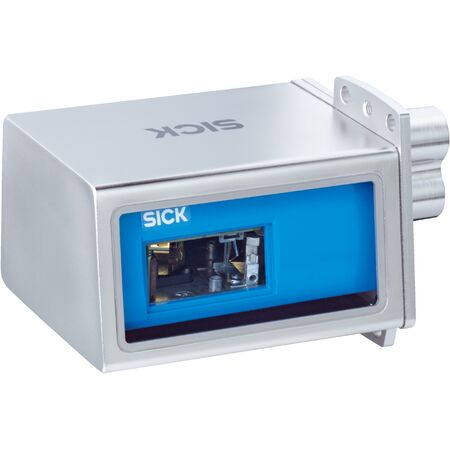

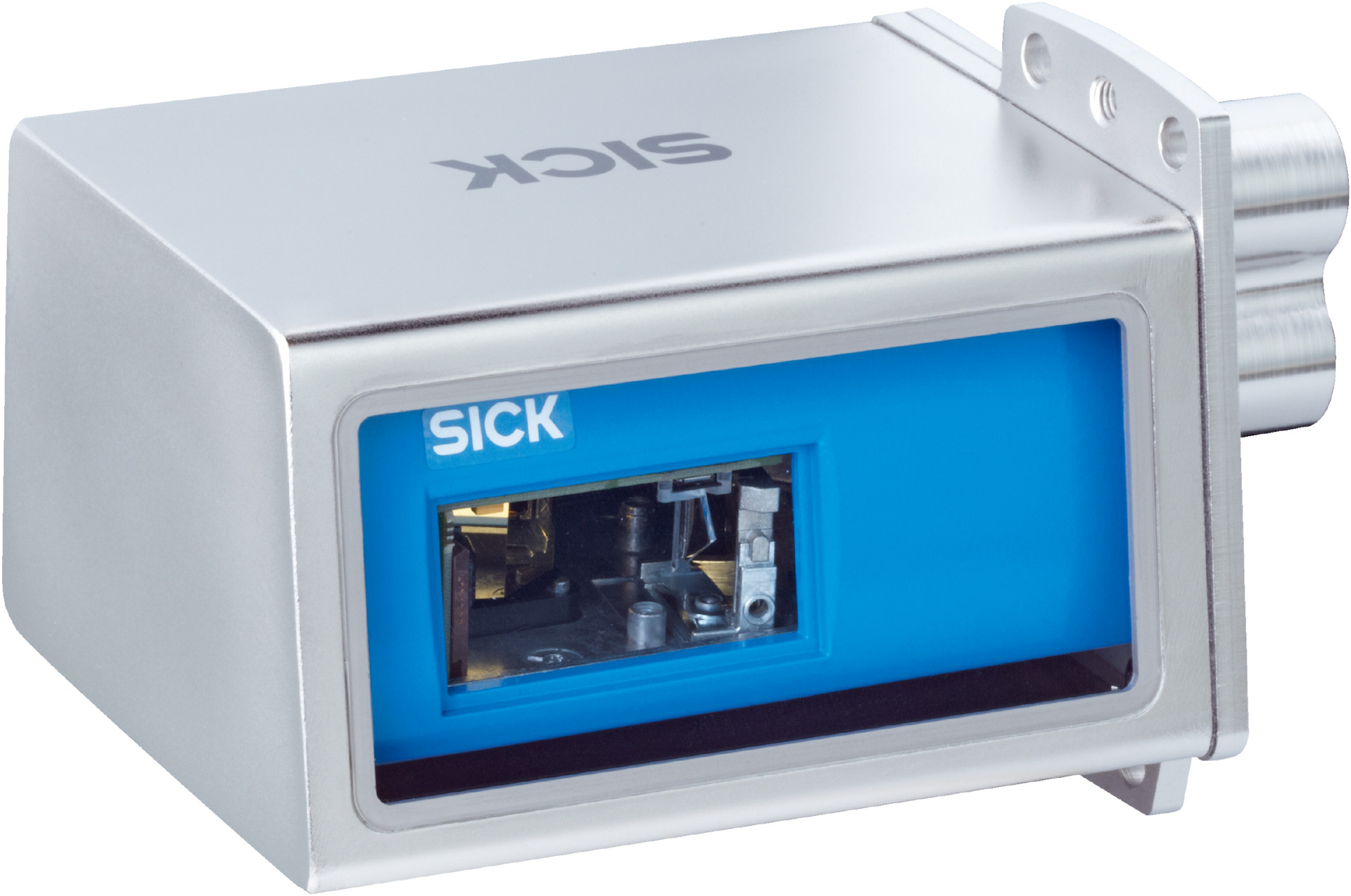

Long Range Barcode Scanner | Ethernet Connectivity | IP69K Protection | by SICK
The Long Range Barcode Scanner CLV630-0831S01 is designed for industrial automation, featuring Ethernet connectivity and a robust IP69K-rated stainless steel housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read all current 1D barcode types, it’s perfect for logistics, manufacturing, and quality assurance applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors (17-pin male, 4-pin female)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 77 mm to 718 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Stainless steel
- Window material: Plastic
- Enclosure rating: IP69K
- Protection class: III (EN 61140)
- Weight: 890 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 84mm x 85mm x 154mm
- Weight: 0.89 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads all current 1D barcode types with high resolution
- Robust stainless steel housing with IP69K protection rating
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and up to 5,000 characters
- Multiple digital inputs and outputs for sensor integration
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- Energy-efficient 5W power consumption minimizes operational energy use
- High reliability with MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV630-0831S01 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
