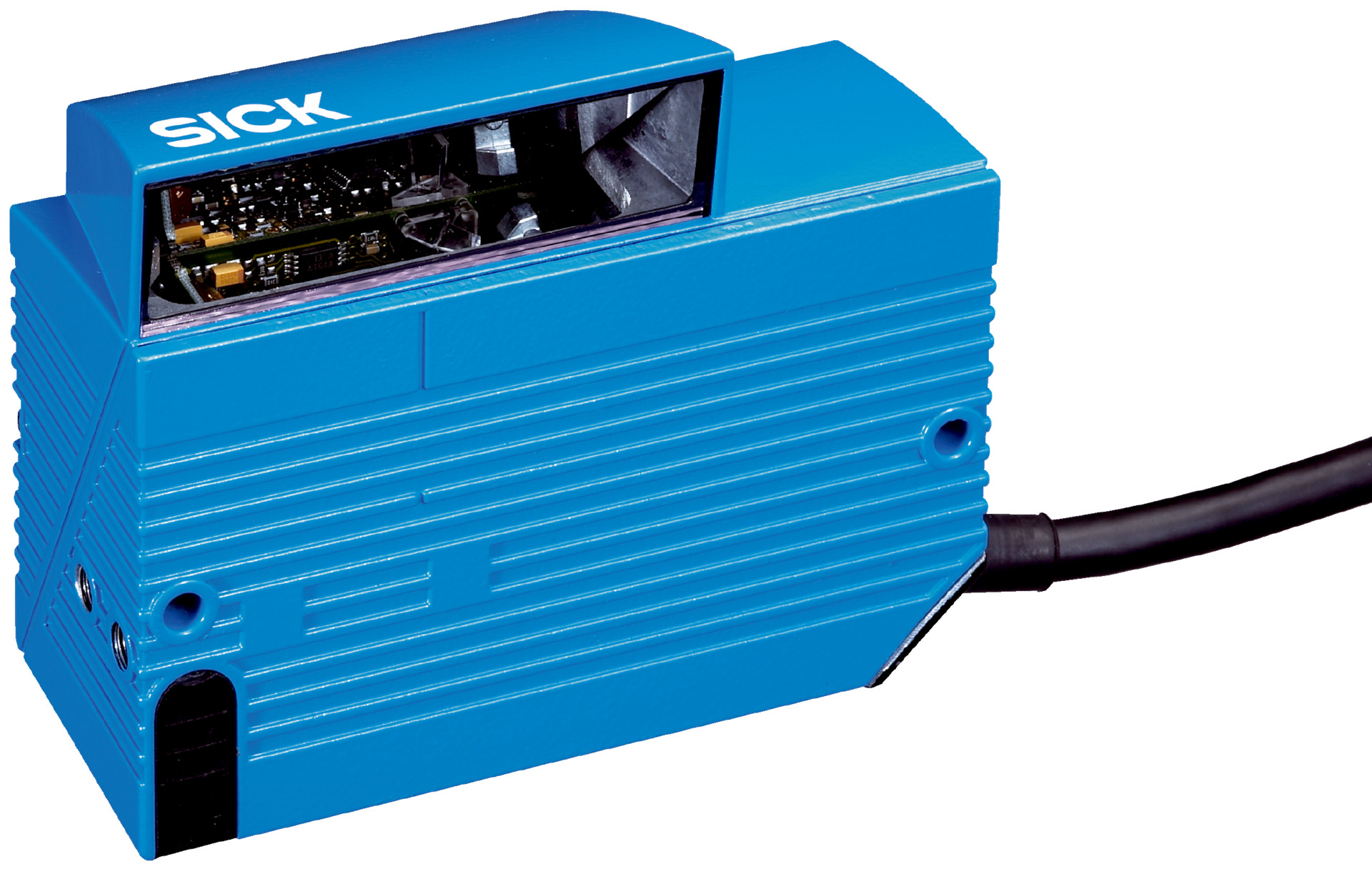

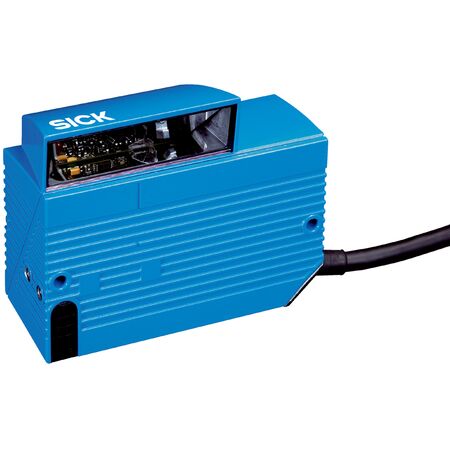

Long Range Barcode Scanner | Fixed Focus | IP65 Rated | 400-1200 Hz Scanning | by SICK
The Long Range Barcode Scanner CLV630-2000 is designed for industrial automation, featuring a fixed optical focus and the ability to read various 1D barcodes including Code 39 and Code 128. With a high scanning frequency of 400 to 1200 Hz and robust IP65-rated aluminum housing, it’s perfect for logistics, manufacturing, and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner | Fixed Focus | IP65 Rated | 400-1200 Hz Scanning | by SICK
Brand: SICK
SKU: 1041972
Alternatively Known As: Long Range Barcode Scanner, Industrial Line Scanner, SICK CLV630 Barcode Reader, Fixed Focus Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1200 Hz
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration, especially for integration with industrial networks.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy efficient with low power consumption of 5 W
- Supports non-contact barcode reading reducing material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-2000 Long Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
