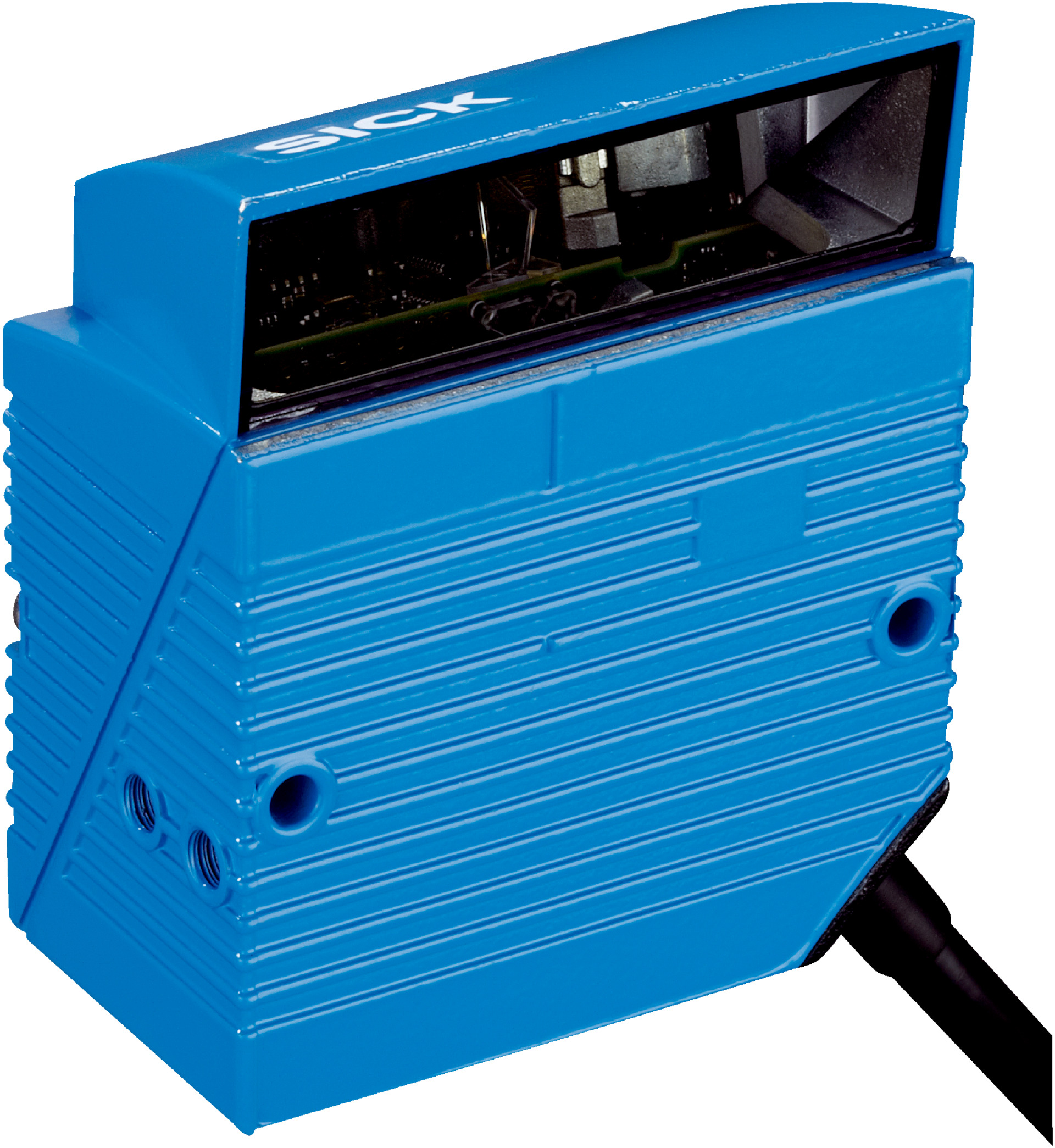

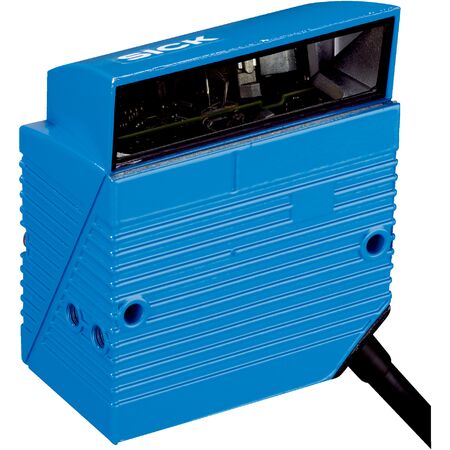

Long Range Barcode Scanner | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV615-F3000 is designed for industrial automation, featuring a fixed optical focus and robust aluminum die cast housing with an IP65 rating. With a high scanning frequency of 400 Hz to 1000 Hz, it efficiently reads various 1D barcodes, making it ideal for logistics, warehouse management, and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Reading field: Side 105°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: approx. 295 g with cable
- Interfaces: PROFINET, CAN, RS-232, PROFIBUS DP, EtherCAT
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, CAN, RS-232, PROFIBUS DP, EtherCAT
- Laser class 2 with visible red light source at 655 nm
- Digital inputs and outputs for sensor and result integration
- RGB LED and acoustic indicators for status feedback
- Configurable via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and tracking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption at 2.8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV615-F3000 Long Range Raster Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
