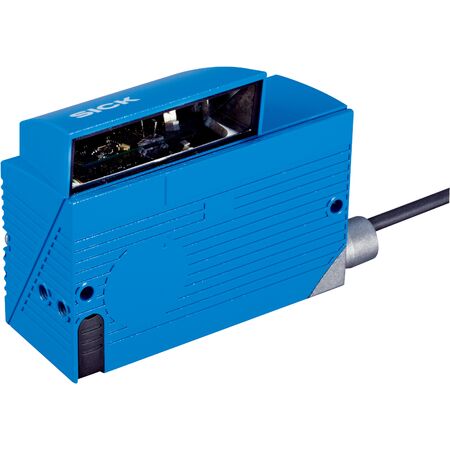

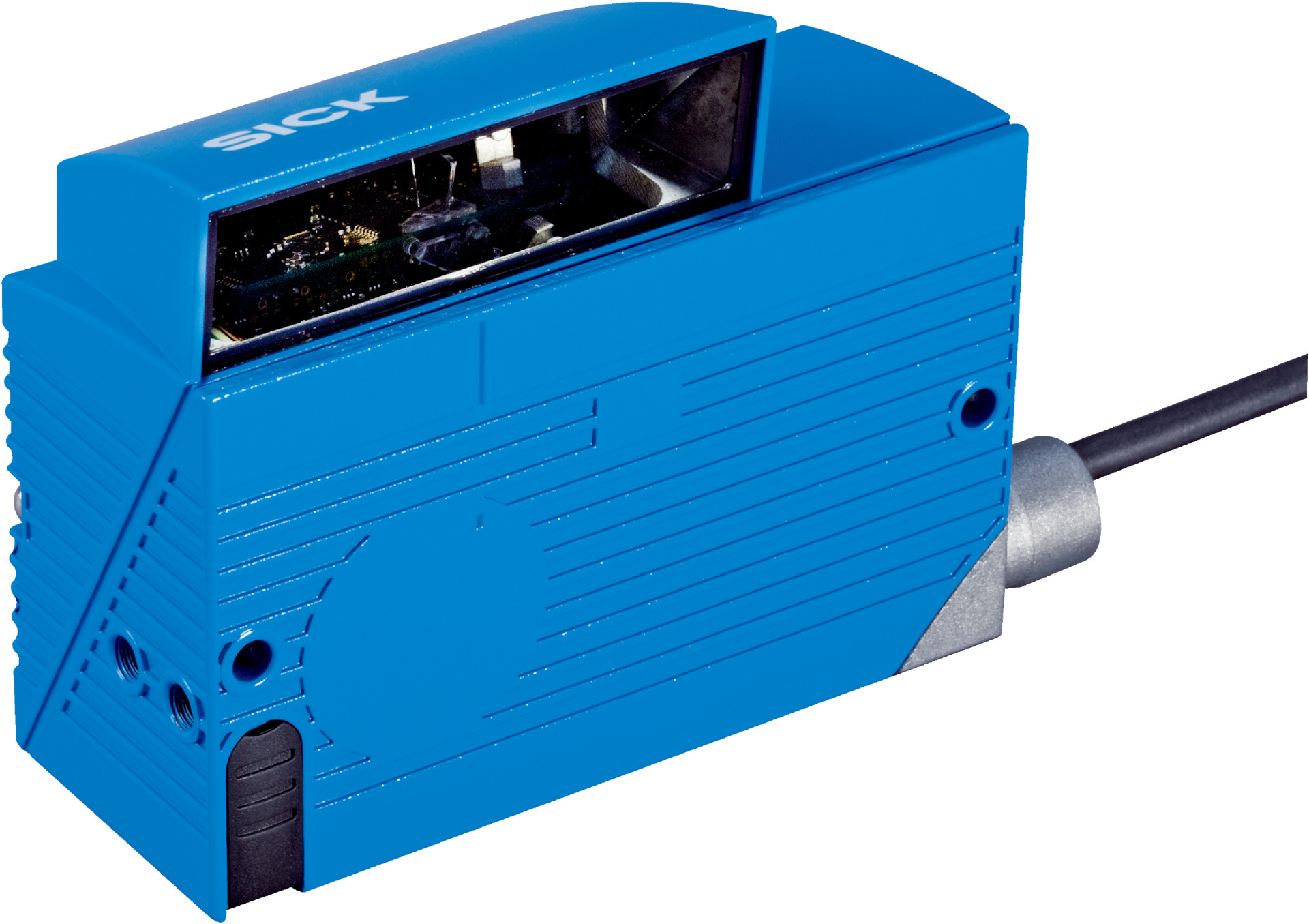

Long Range Barcode Scanner | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV618-D2410 is designed for industrial automation, featuring a fixed optical focus and the ability to read 1D barcodes like Code 39 and UPC. With a high scanning frequency of 400 Hz to 1000 Hz and a durable IP65-rated aluminum housing, it's perfect for logistics, manufacturing, and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Light spot, laser, Visible, Red, 655 nm
- Laser class: 2, complies with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET Single and Dual Port, USB, Digital inputs and outputs
- Electromagnetic compatibility: EN 61000-6-4 and EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, Non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET and USB
- Laser class 2 with visible red light source at 655 nm
- High code resolution from 0.35 mm to 1 mm
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 5 W
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV618-D2410 Long Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
