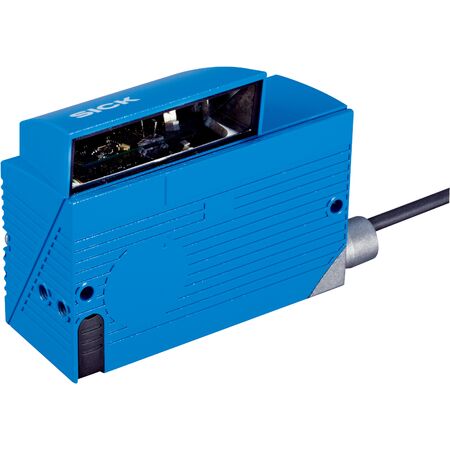

Long Range Barcode Scanner | Fixed Optical Focus | IP65 Rated | High Scanning Frequency | by SICK
The Long Range Barcode Scanner CLV618-D2520 is designed for industrial automation, offering a fixed optical focus and the ability to read 1D barcodes including Code 39 and UPC. With a high scanning frequency of 400 Hz to 1000 Hz and a durable aluminum die cast housing rated IP65, it's perfect for logistics, manufacturing process control, and quality traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 5-pin M12 POWER, 4-pin M12 PROFINET P1 and P2, Micro USB type B
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, UPC, EAN, Codabar, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 1500
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-4 and EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Multiple connection options including PROFINET and USB
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption of 5 W
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV618-D2520 Long Range Line Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
