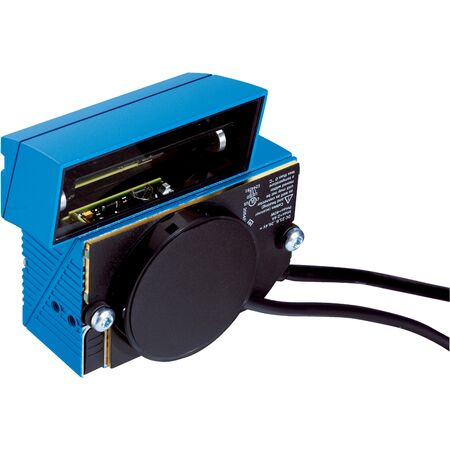

Long Range Barcode Scanner | Fixed Optical Focus | Oscillating Mirror | IP65 Protection | by SICK
The Long Range Barcode Scanner CLV630-6000F0 is designed for high-speed scanning in industrial automation and cold storage applications. With a fixed optical focus and an oscillating mirror, it offers a reading distance of 45 mm to 659 mm and supports all current 1D barcode types. Its robust aluminum housing with IP65 protection ensures durability, making it ideal for logistics and manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner | Fixed Optical Focus | Oscillating Mirror | IP65 Protection | by SICK
Brand: SICK
SKU: 1053927
Alternatively Known As: Long Range Barcode Scanner, Industrial Line Scanner, SICK CLV630 Barcode Reader, Laser Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Cable
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Heating: Included
- Cold storage applications: Supported
- Connection type details: 1 x 15-pin D-Sub HD male connector (0.9 m), 1 x open-ended 3-wire cable (2 m)
- Supply voltage: ≤ 24 V DC, ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 620 g with cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128/EAN 128, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interface options: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 95mm x 107mm
- Weight: 0.62 kg
Key Features
- Long range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Laser class 2, visible red light spot at 655 nm wavelength
- Reading distance from 45 mm to 659 mm
- High scanning frequency between 400 Hz and 1200 Hz
- Supports reading of all current 1D barcode types
- Robust aluminum die cast housing with IP65 protection
- Heating function for cold storage applications
- Multiple interface options including PROFINET, EtherCAT, CAN, and serial
- 6 LED optical indicators and acoustic beeper for status feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and communication standards to ensure proper setup and compliance with safety regulations.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- High-speed scanning in manufacturing lines
- Logistics and warehouse barcode identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy-efficient operation with low power consumption
- Supports cold storage use reducing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-6000F0 Long Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and cold storage barcode scanning applications.
