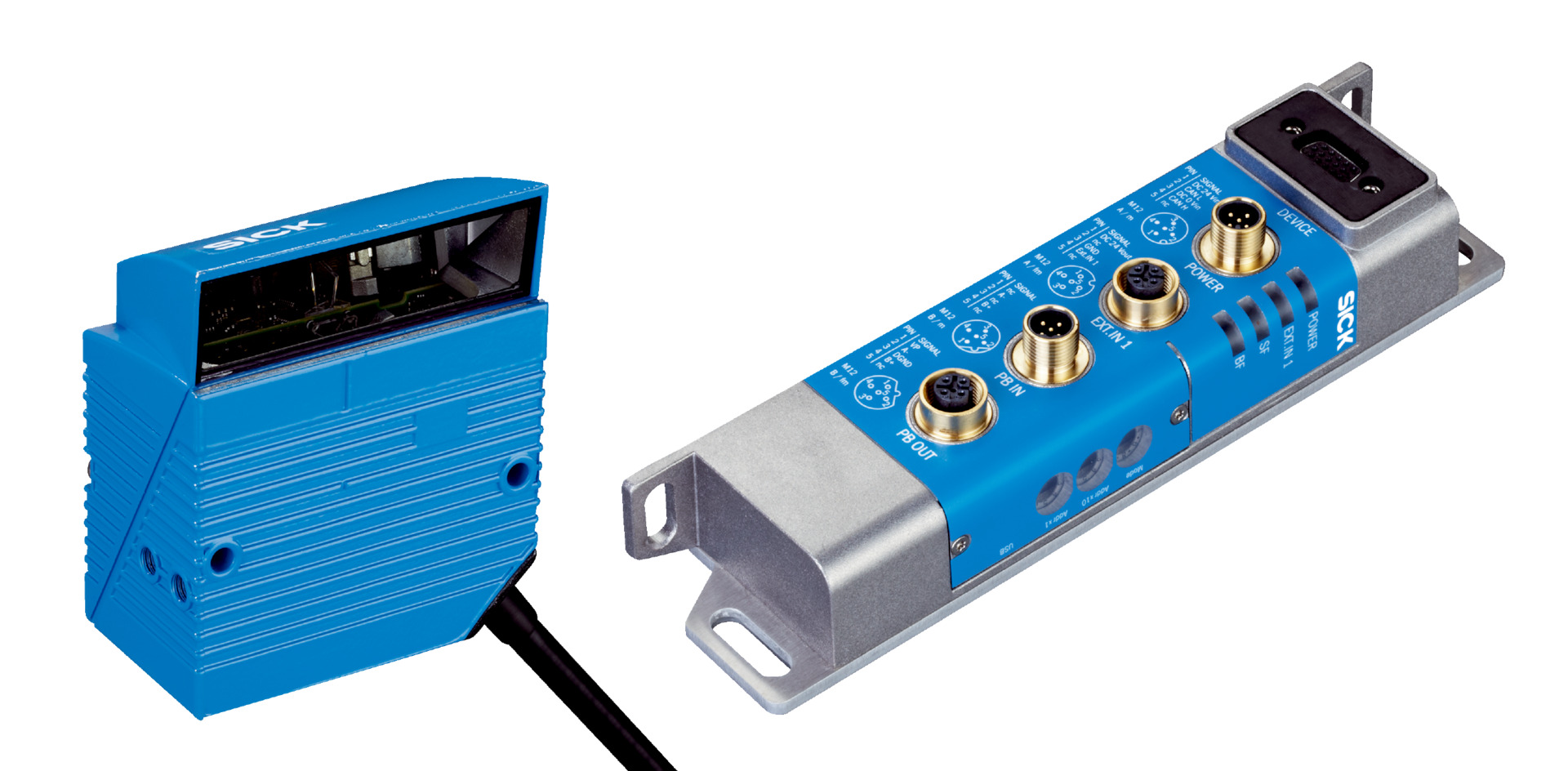

Long Range Barcode Scanner Kit | PROFIBUS DP | IP65 Rated | 400-1000 Hz Scanning | by SICK
The Long Range Barcode Scanner Kit is designed for industrial automation, featuring a robust aluminum housing and IP65 rating. With a high scanning frequency of 400 to 1000 Hz, it efficiently reads 1D barcodes like Code 39 and UPC, making it ideal for logistics, manufacturing, and quality control applications. Its fixed optical focus ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: Class 2, compliant with EN 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: Approximately 295 g with cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFIBUS DP, PROFINET, CAN, EtherCAT, Serial RS-232
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-4, EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple fieldbus interfaces including PROFIBUS DP, PROFINET, CAN, EtherCAT
- Integrated RGB LED and acoustic indicators
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and fieldbus communication protocols.
Applications
- Industrial automation for barcode scanning
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption of 2.8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

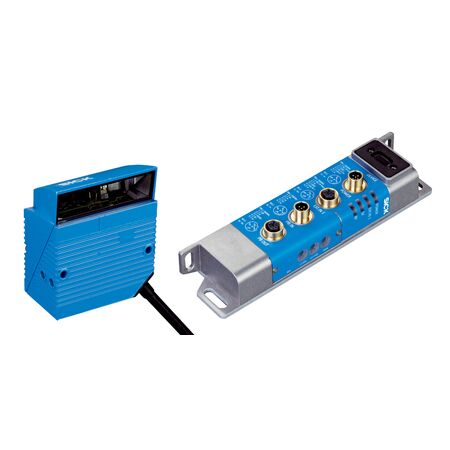

The SICK CLV615-F2000 CDF600-2100 Kit PROFIBUS DP is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
