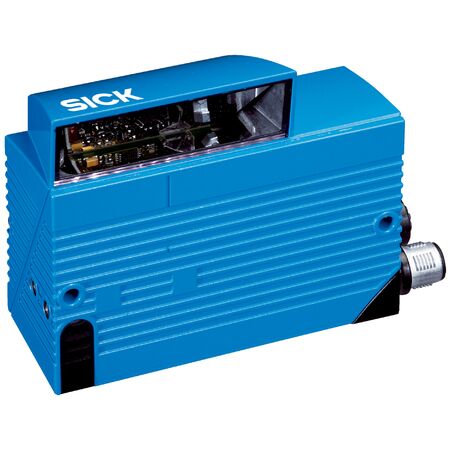

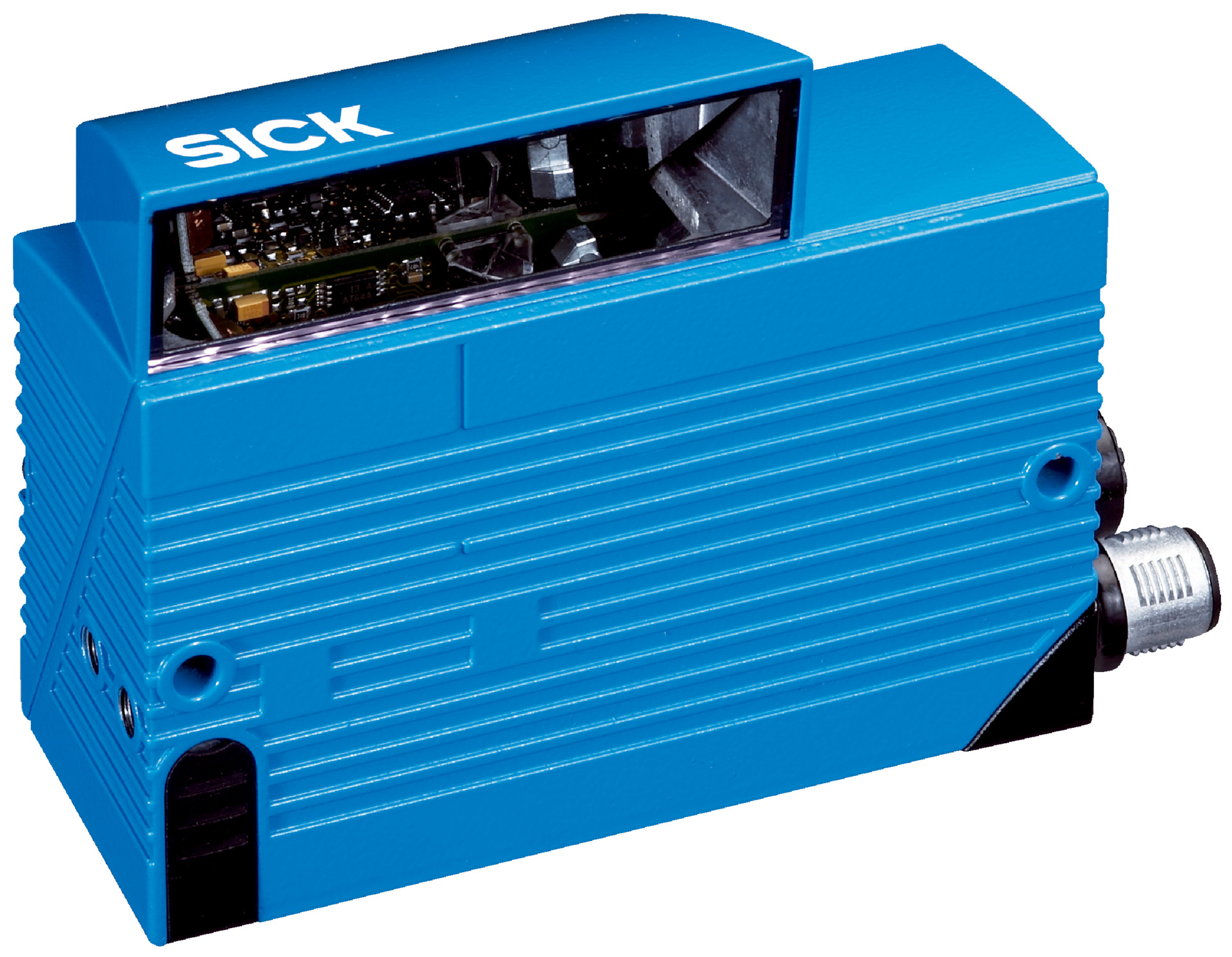

Long Range Barcode Scanner | Raster Scanner with IO-Link | 105° Side Reading | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV615-I3150 is designed for industrial automation, featuring a raster scanner with a 105° side reading field and a reading distance of 25 mm to 330 mm. Ideal for logistics and manufacturing, it supports all current 1D barcode types and offers robust performance with an IP65 rating, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: IO-Link and USB
- Reading field: Side (105°)
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 3.2 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (EN 60950-1/EN 62368-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of characters per reading interval: 31
- Interfaces: IO-Link V1.1, USB, digital inputs and outputs
- Ambient operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Permissible relative humidity: 90%, non-condensing
- Electromagnetic compatibility: EN 61000-6-4:2019 / EN 61000-6-2:2019
- Vibration resistance: EN 60068-2-6:2008-02
- Shock resistance: EN 60068-2-27:2009-05
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.26 kg
Key Features
- Long range raster scanner with fixed optical focus
- Side reading field of 105°
- Visible red laser light source (655 nm), Laser class 2 compliant
- Reading distance from 25 mm to 330 mm
- High scanning frequency between 400 Hz and 1000 Hz
- Supports all current 1D barcode types including Code 39, Code 128, UPC, EAN
- IO-Link V1.1 and USB interfaces for configuration and data transmission
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0°C to +40°C
- Equipped with 2 LEDs for optical indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using IO-Link and USB interfaces.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 3.2 W reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Complies with laser safety standards to minimize environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV615-I3150 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
