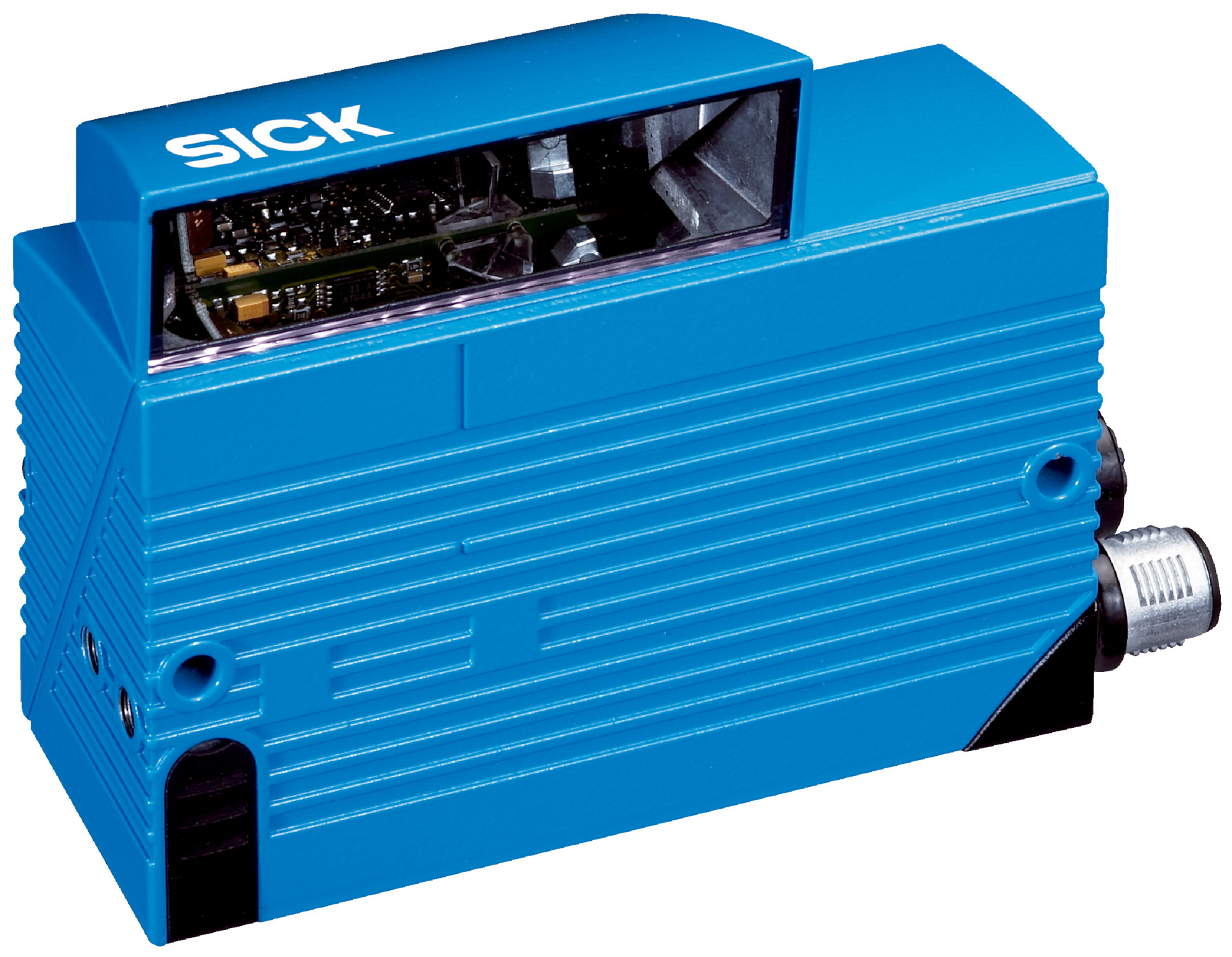

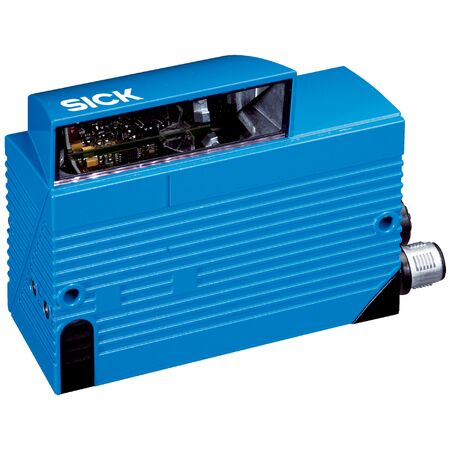

Long Range Barcode Scanner SICK CLV630-2120 | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
The SICK CLV630-2120 Long Range Barcode Scanner is designed for industrial automation, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1,200 Hz and the ability to read 1D barcodes with resolutions from 0.35 mm to 1 mm, it's perfect for logistics, manufacturing, and quality assurance applications. This scanner ensures reliable performance in demanding environments, making it an essential tool for efficient barcode reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Barcode Scanner SICK CLV630-2120 | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041973
Alternatively Known As: SICK CLV630 Long Range Barcode Scanner, SICK Ethernet Line Scanner, Industrial Barcode Reader SICK CLV630
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 270 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and more
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.27 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.35 mm to 1 mm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and up to 5,000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-2120 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
