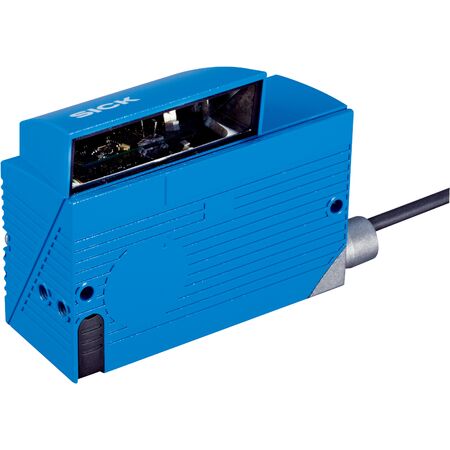

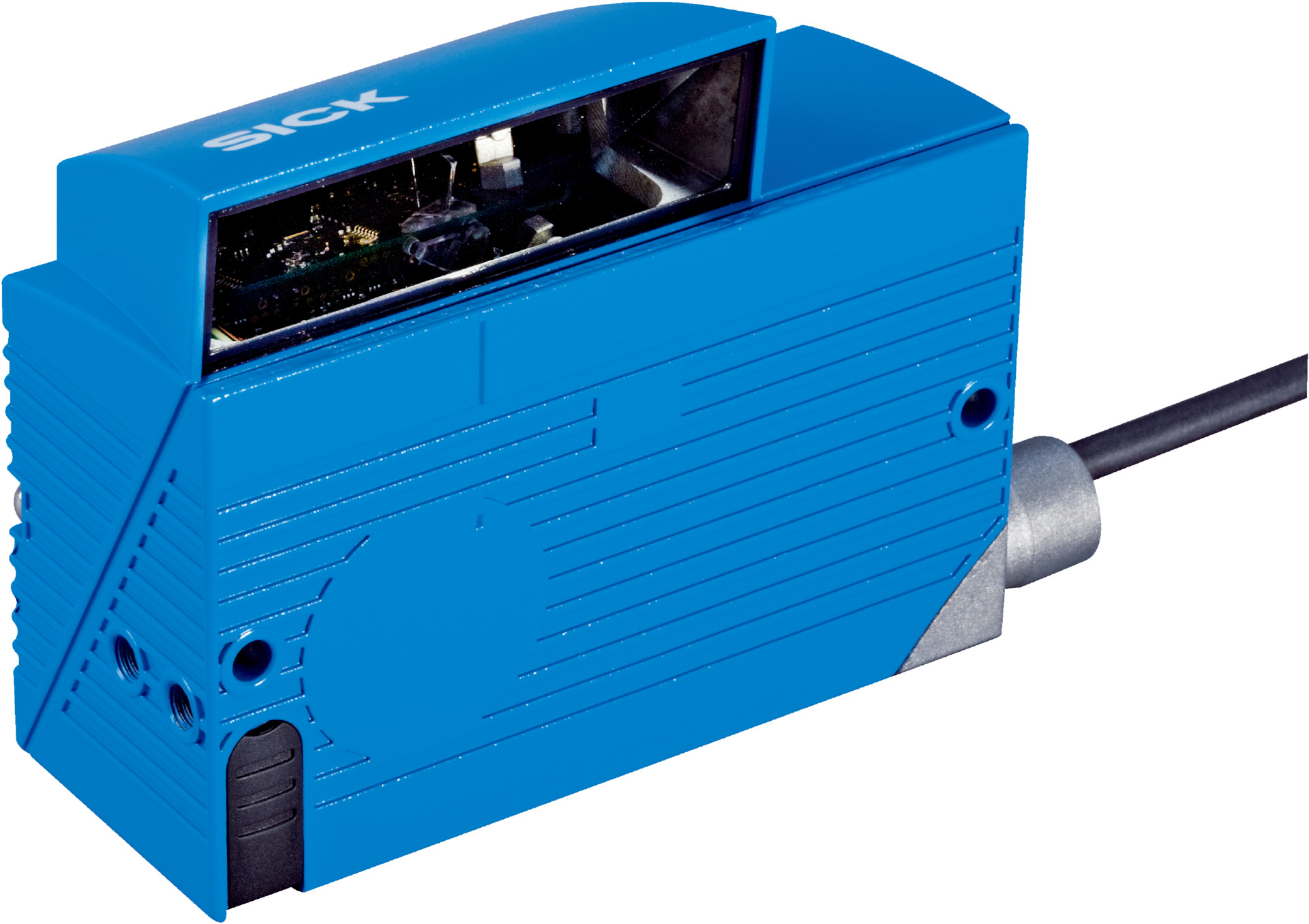

Long Range Barcode Scanner | Side Reading Field 105° | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV615-D2410F0 is designed for industrial automation and cold storage applications, featuring a side reading field of 105° and robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1000 Hz and compatibility with all current 1D barcode types, it ensures efficient and reliable barcode reading in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 4-pin M12 plugs and Micro USB
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 15 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading field: Side 105°
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Readable codes: 1D barcodes including Code 39, Code 128, UPC, EAN, Pharmacode
- Number of codes per scan: 1 to 10 (Standard decoder)
- Ambient operating temperature: -35 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.35 kg
Key Features
- Long range line scanner with fixed optical focus
- Side reading field of 105°
- Visible red laser light source (655 nm), Laser class 2
- Reading distance from 25 mm to 330 mm
- High scanning frequency between 400 Hz and 1000 Hz
- Supports all current 1D barcode types including Code 39, Code 128, UPC, EAN, and Pharmacode
- Robust aluminum die cast housing with IP65 rating
- Heating element for cold storage applications
- Multiple interfaces including PROFINET and USB
- High ambient light immunity up to 2000 lx on barcode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Cold storage barcode scanning
- High-speed code reading in manufacturing lines
- Logistics and warehouse scanning applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product life and reduces waste
- Supports cold storage applications reducing need for additional equipment
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK CLV615-D2410F0 Long Range Line Scanner is available for immediate purchase, ideal for industrial and cold storage barcode scanning applications.
