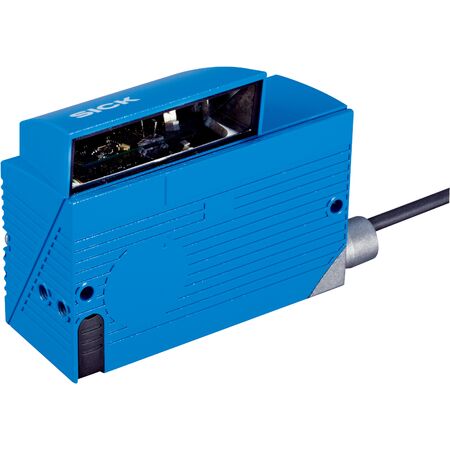

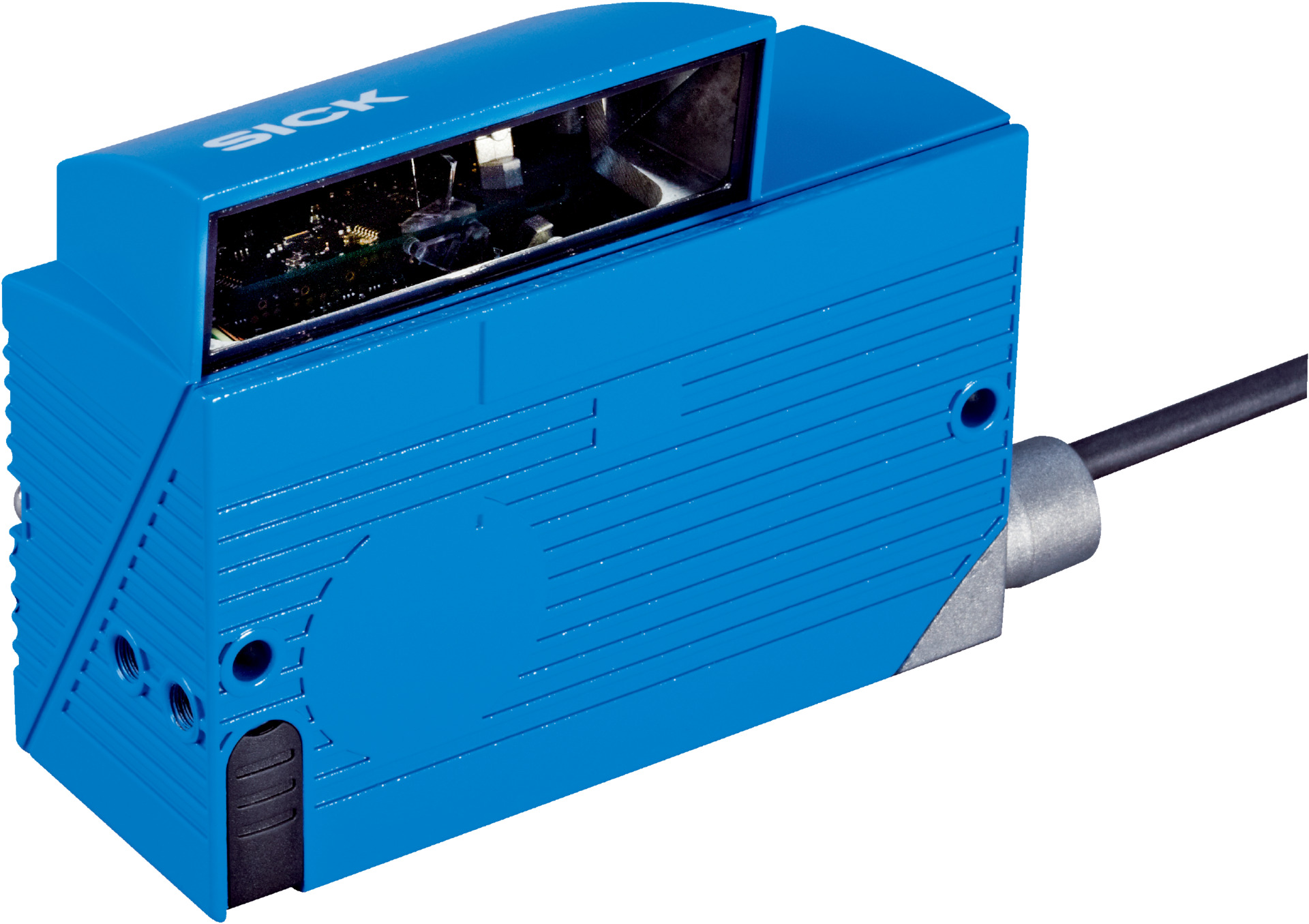

Long Range Barcode Scanner | Side Reading 105° | IP65 Rated | by SICK
The Long Range Barcode Scanner CLV618-D2540 is designed for industrial automation, featuring a side reading field of 105° and a high scanning frequency of 400 Hz to 1000 Hz. With robust aluminum housing and IP65 protection, it excels in logistics, manufacturing, and quality control applications, ensuring reliable barcode reading across various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable with 5-pin M12 POWER and dual 4-pin M12 PROFINET connectors
- Reading field: Side 105°
- Sensor type: Line scanner
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm, Laser class 2
- Aperture angle: ≤ 50°
- Reading distance: 44 mm to 683 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: approx. 310.5 g
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, UPC, EAN, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (standard decoder)
- Number of codes per reading interval: up to 50
- Number of characters per reading interval: 1500
- Digital inputs: 2
- Digital outputs: 4
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.31 kg
Key Features
- Long range line scanner with fixed optical focus
- Side reading field of 105°
- Visible red laser light source at 655 nm
- High scanning frequency from 400 Hz to 1000 Hz
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN
- Robust aluminum die cast housing with IP65 protection
- Multiple PROFINET communication ports with 100 MBit/s full-duplex Ethernet
- Supports up to 50 codes per reading interval and 1500 characters
- Equipped with 5 LED optical indicators and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and network systems to ensure compliance with safety and communication standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption at 5 W supports energy efficiency
- Complies with RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV618-D2540 Long Range Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
