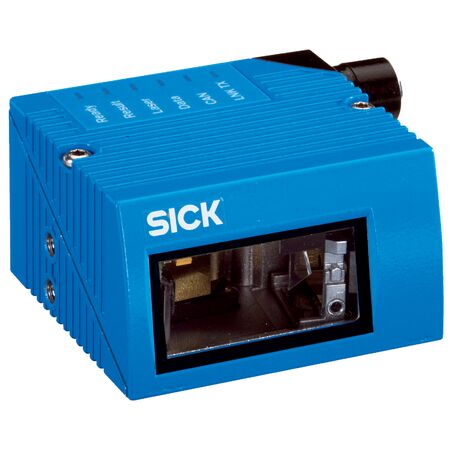

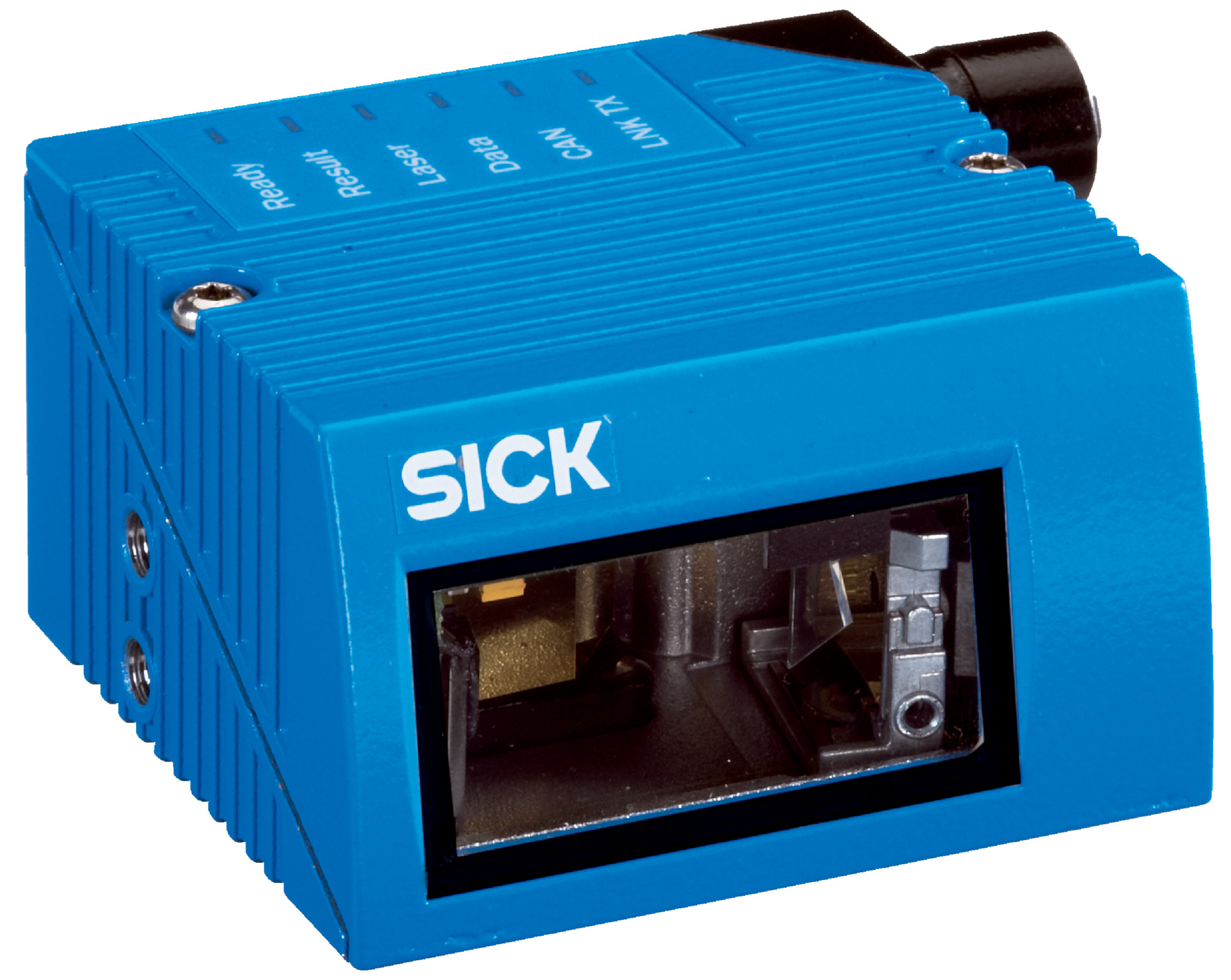

Long Range Ethernet Barcode Scanner | Fixed Optical Focus | High Scanning Frequency | IP65 Rated | by SICK
The Long Range Ethernet Barcode Scanner CLV621-0120 is designed for industrial automation, featuring a fixed optical focus and high scanning frequency from 400 Hz to 1200 Hz. With robust aluminum housing and an IP65 rating, it excels in logistics, manufacturing, and quality assurance applications, ensuring reliable barcode reading across various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Ethernet Barcode Scanner | Fixed Optical Focus | High Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1041785
Alternatively Known As: SICK CLV621 Barcode Scanner, SICK Long Range Line Scanner, Ethernet Barcode Reader, Industrial Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors (12-pin male, 4-pin female)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 730 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 205 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1500
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.205 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor integration and electrical safety is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 4.5 W
- Durable construction reduces replacement frequency and waste
- Supports digital communication reducing need for additional cabling
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV621-0120 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
