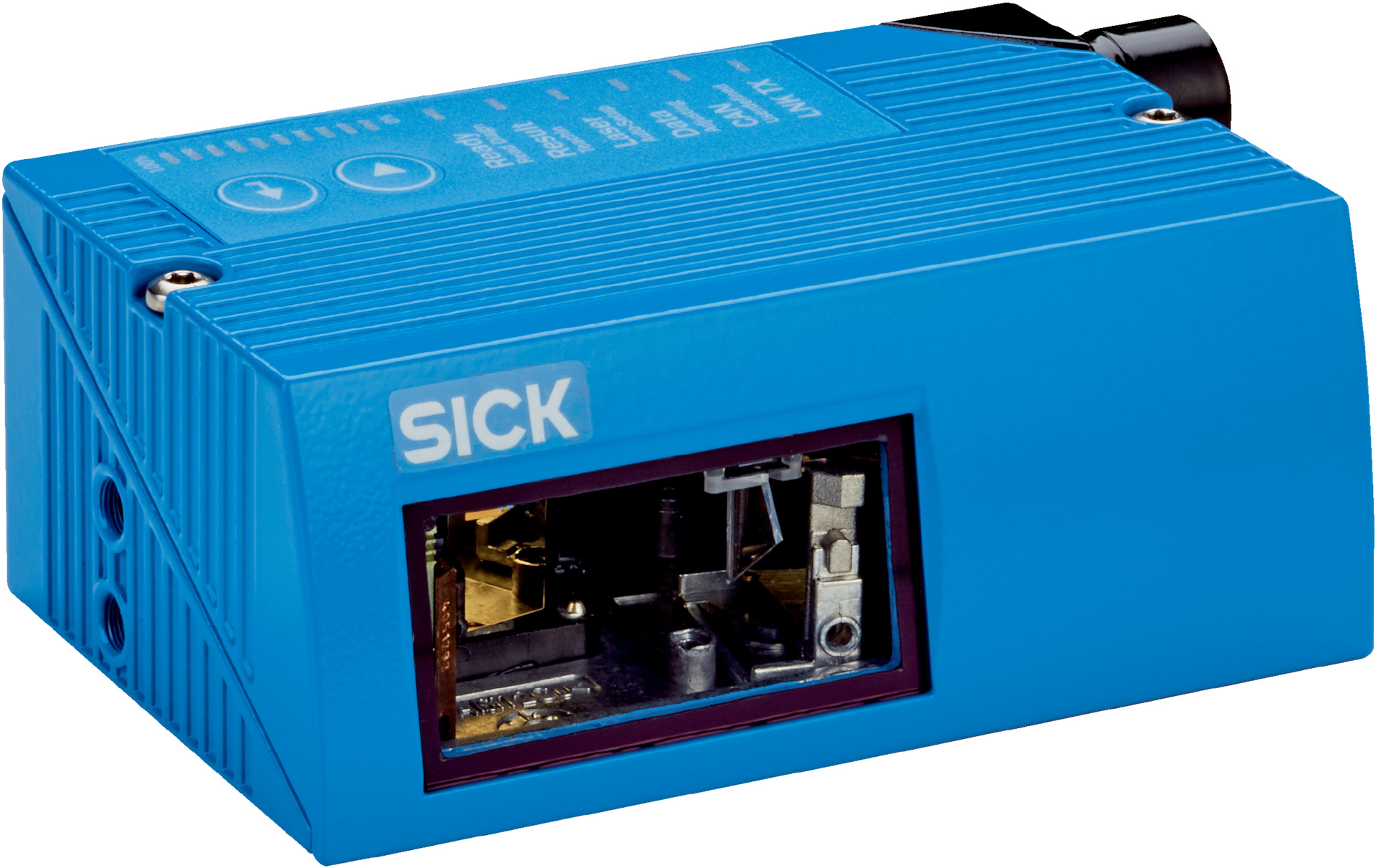

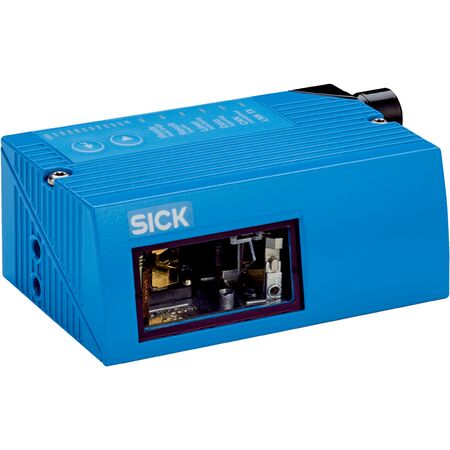

Long Range Line Scanner | Ethernet Connection | High Scanning Frequency | IP65 Rated | by SICK
The Long Range Line Scanner CLV630-0121 is designed for industrial barcode scanning, featuring an Ethernet connection and a high scanning frequency of 400 Hz to 1,200 Hz. With its robust aluminum die cast housing and IP65 rating, it's perfect for automated production lines and logistics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Line Scanner | Ethernet Connection | High Scanning Frequency | IP65 Rated | by SICK
Brand: SICK
SKU: 1047278
Alternatively Known As: SICK CLV630 Barcode Scanner, SICK Long Range Line Scanner, Industrial Ethernet Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial up to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range line scanner with fixed optical focus
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution
- Laser class 2 with visible red light spot (655 nm)
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports microSD memory card for configuration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-0121 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
