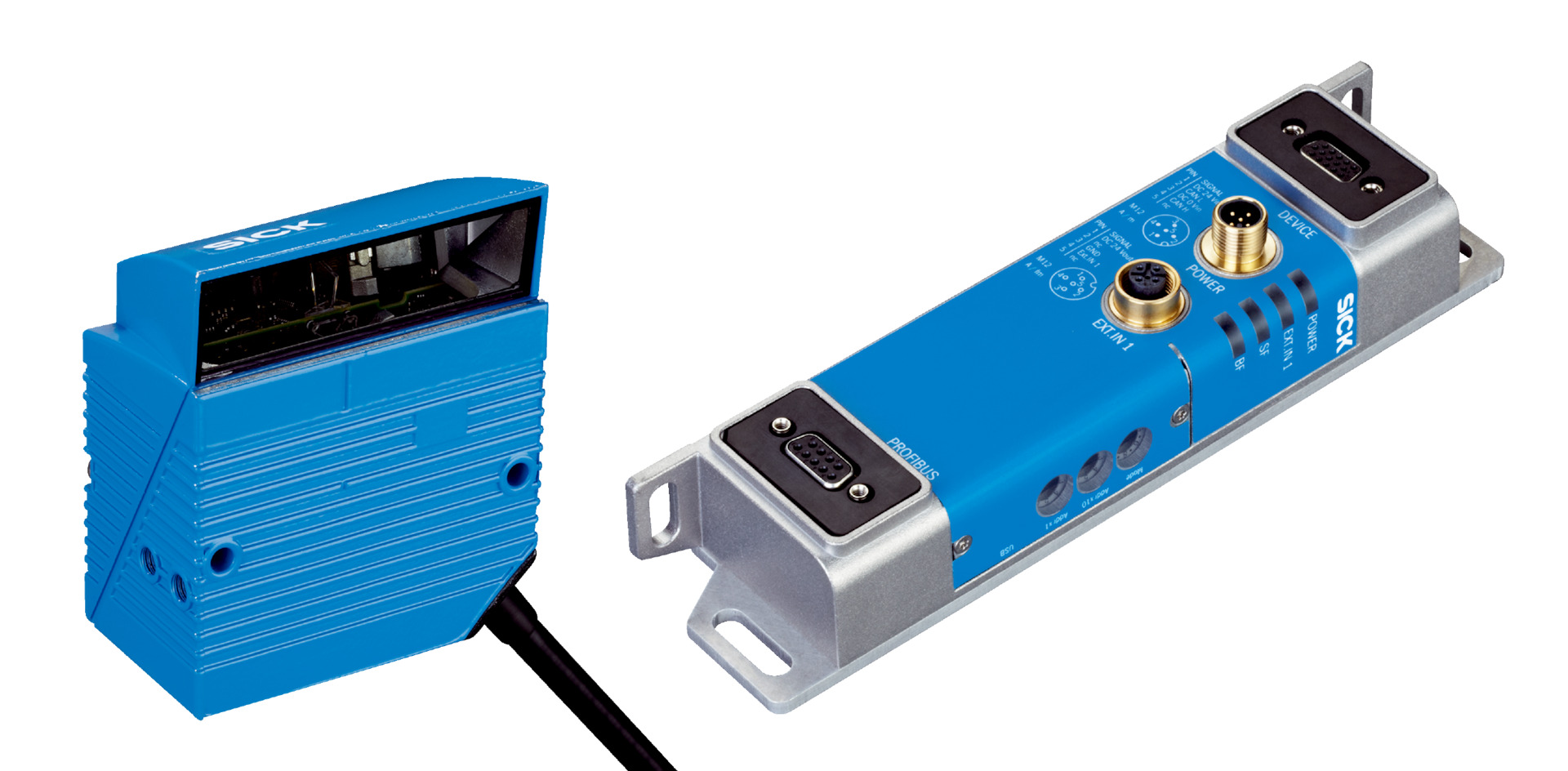

Long Range Line Scanner Kit | PROFIBUS DP Interface | IP65 Rated | by SICK
The Long Range Line Scanner Kit with PROFIBUS DP interface is designed for high-speed barcode scanning in industrial automation. Featuring a robust aluminum housing with an IP65 rating, it reads 1D barcodes like Code 39 and UPC with a scanning frequency of 400 Hz to 1000 Hz. Ideal for manufacturing lines and logistics, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with EN 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFIBUS DP, PROFINET, CAN, EtherCAT, Serial RS-232
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Ambient operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple fieldbus interfaces including PROFIBUS DP, PROFINET, CAN, EtherCAT
- Laser class 2 with visible red light source at 655 nm
- Digital inputs and outputs for sensor and result integration
- Configurable via SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and PROFIBUS DP network setup to ensure proper configuration and safety compliance.
Applications
- Industrial automation for barcode scanning and identification
- Manufacturing lines requiring high-speed code reading
- Logistics and packaging for 1D barcode verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption at 2.8 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

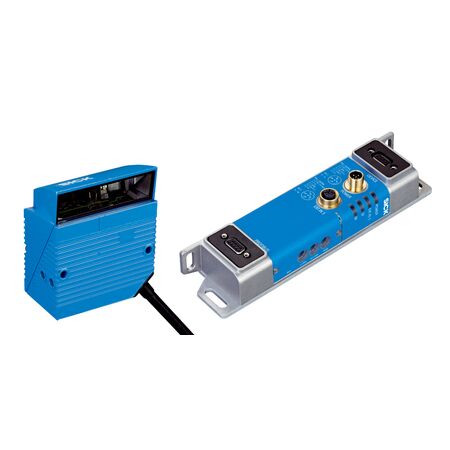

The SICK CLV615-F2000 CDF600-2103 Kit PROFIBUS DP is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
