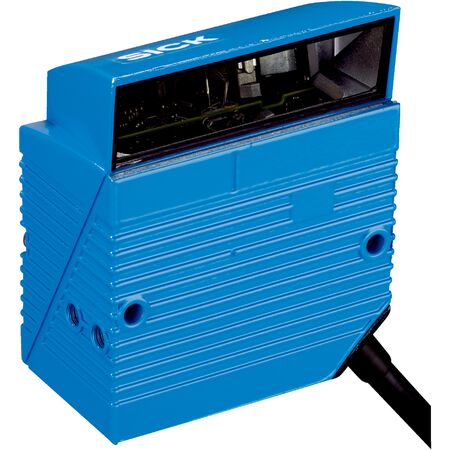

Long Range Line Scanner SICK CLV615-F2000 | 105° Reading Field | IP65 Rated | 400-1000 Hz Scanning Frequency | by SICK
The SICK CLV615-F2000 Long Range Line Scanner is designed for industrial automation, featuring a 105° reading field and a scanning frequency of 400 Hz to 1000 Hz. With its robust aluminum die cast housing and IP65 rating, it ensures durability in demanding environments. Ideal for logistics, packaging, and manufacturing applications, this scanner reads various 1D barcodes with precision, enhancing quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Reading field: Side 105°
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.35 mm to 0.5 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: approx. 295 g with cable
- Interfaces: PROFINET, CAN, RS-232, PROFIBUS DP, EtherCAT
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Long range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, CAN, RS-232, PROFIBUS DP, EtherCAT
- Laser class 2 with visible red light source at 655 nm
- Digital inputs and outputs with multifunctional RGB LED and acoustic indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption at 2.8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV615-F2000 Long Range Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
