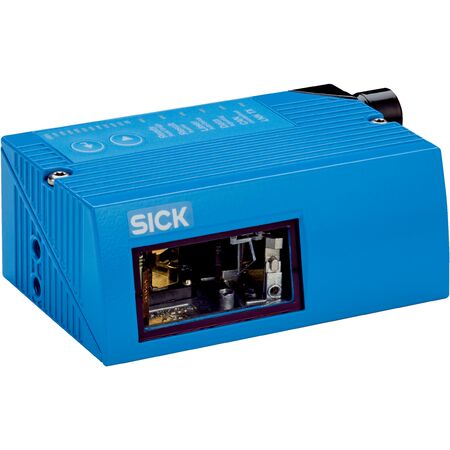

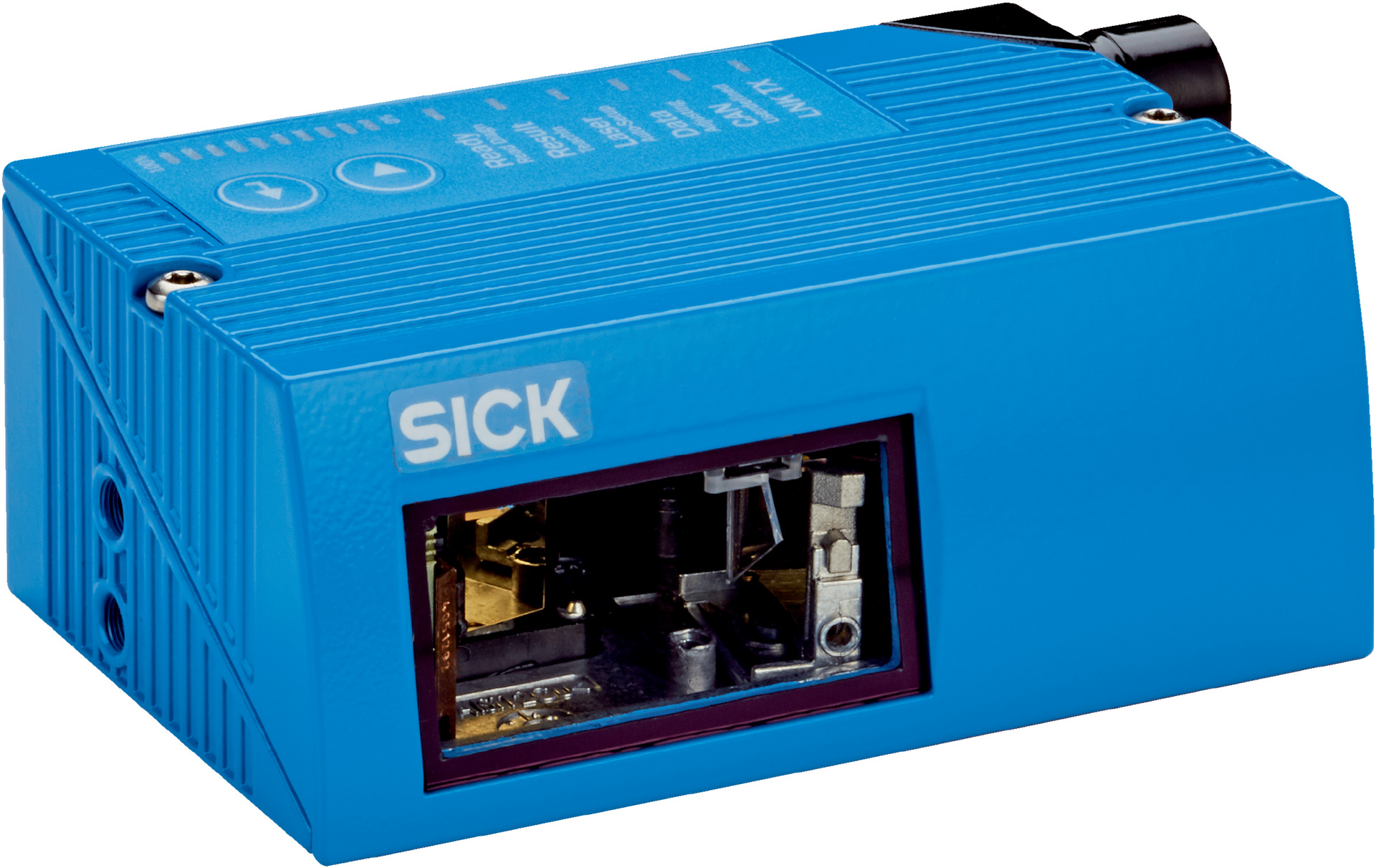

Long Range Raster Barcode Scanner | Ethernet & IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
The Long Range Raster Barcode Scanner CLV630-1831S01 is designed for industrial automation, featuring a high scanning frequency of 400 to 1200 Hz and the ability to read various 1D barcodes including Code 39 and Code 128. With its robust IP65 rated aluminum housing, this scanner is perfect for logistics, manufacturing process control, and quality assurance, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Raster Barcode Scanner | Ethernet & IP65 Rated | 400-1200 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1056132
Alternatively Known As: SICK CLV630 Raster Scanner, SICK Long Range Barcode Scanner, Industrial Barcode Reader SICK CLV630
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Oval
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and lines at distance: 15 mm, 8 lines at 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, Pharmacode, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- High scanning frequency from 400 Hz to 1,200 Hz
- Ethernet and multiple fieldbus interfaces including PROFINET, EtherNet/IP, EtherCAT, CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot (655 nm)
- Supports up to 50 codes per reading interval with auto-discrimination
- Equipped with 6 LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration storage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient 5W power consumption minimizes operational energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-1831S01 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
