Long Range Raster Barcode Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The Long Range Raster Barcode Scanner is designed for industrial automation, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types with resolutions from 0.35 mm to 1 mm, it's perfect for logistics, manufacturing, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

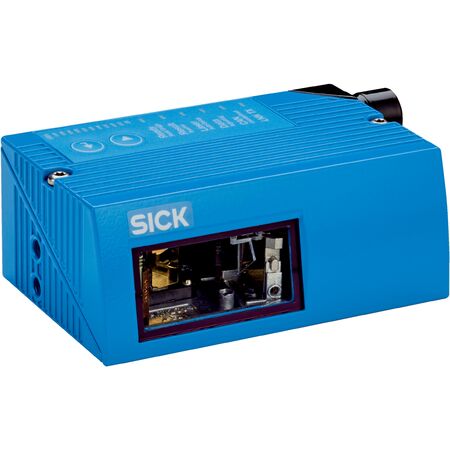

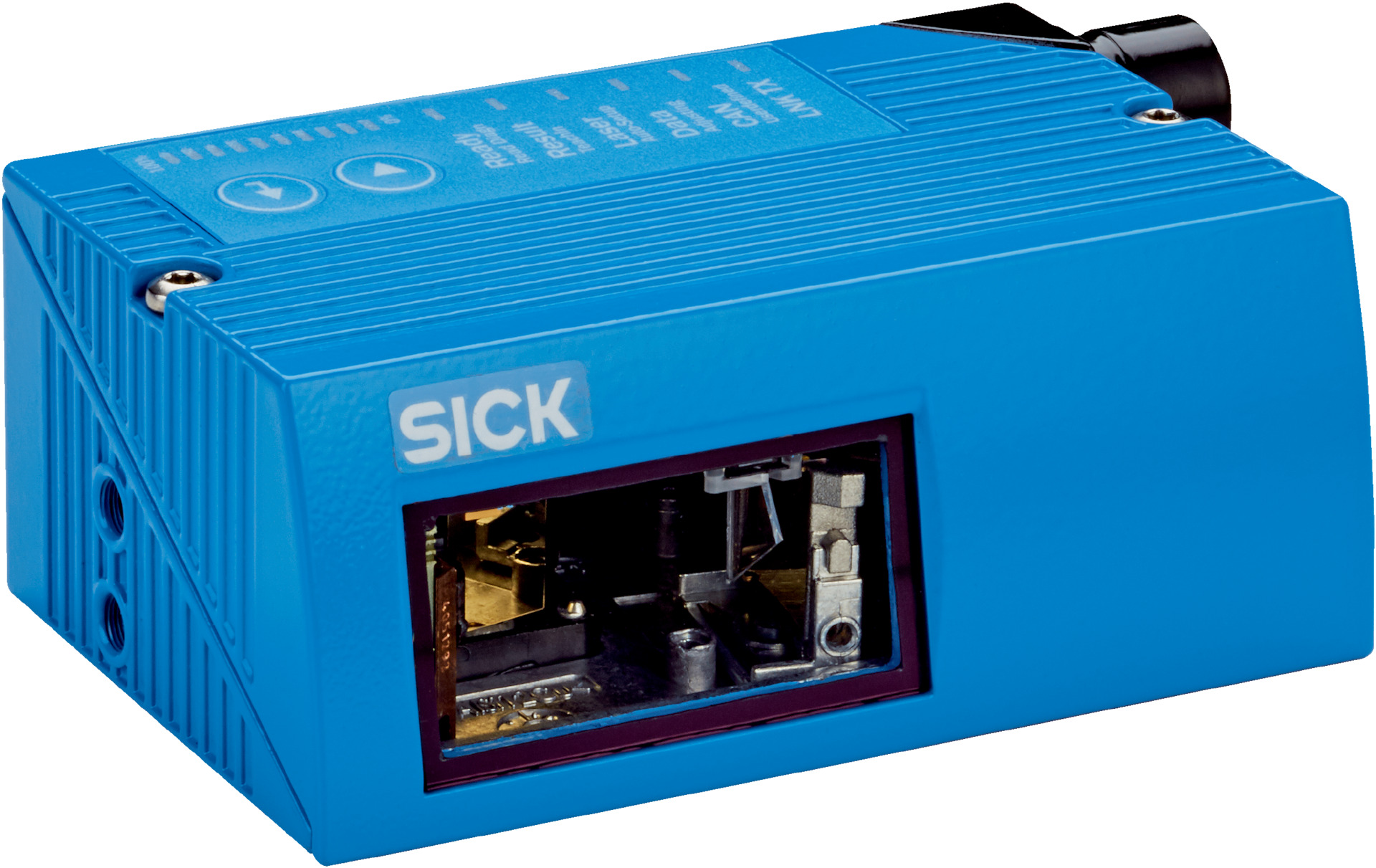

Product Name/Title: Long Range Raster Barcode Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1046959
Alternatively Known As: SICK CLV630 Raster Scanner, SICK Long Range Barcode Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, circular spot
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and lines: 15 mm, 8 lines at 200 mm distance
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, Pharmacode, MSI/Plessey
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 5,000 (500 for multiplexer function)
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.35 mm to 1 mm)
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light spot (655 nm)
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and up to 5000 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient 5 W power consumption reduces operational costs
- Durable IP65 rated housing extends product life and reduces waste
- Supports digital communication reducing need for additional hardware
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-1121 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
