Long Range Raster Barcode Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The Long Range Raster Barcode Scanner is designed for industrial automation, featuring Ethernet connectivity and a robust IP65-rated aluminum housing. With a scanning frequency of 400 Hz to 1200 Hz and the ability to read all current 1D barcode types, it's perfect for logistics, warehouse management, and cold storage applications. Built for reliability, this scanner ensures high-resolution readings and includes a heating element for cold environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 connectors, 1 x open-ended cable
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm, Class 2 laser
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height: 15 mm at 8,200 mm distance
- Heating: Included for cold storage
- Supply voltage: ≤ 24 V DC ± 10%
- Power consumption: 40 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 450 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, Pharmacode, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 50mm x 61mm x 96mm
- Weight: 0.45 kg
Key Features
- Long range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads all current 1D barcode types with high resolution (0.35 mm to 1 mm)
- High scanning frequency from 400 Hz to 1200 Hz
- Heating element for cold storage applications
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- MicroSD memory card support for configuration
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Cold storage environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy efficient operation with low power consumption (40 W)
- Supports cold storage applications reducing need for additional heating devices
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

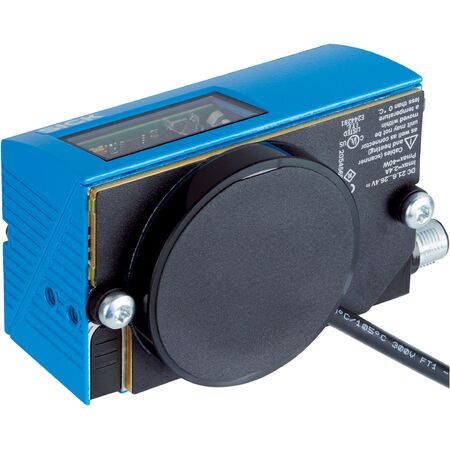

The SICK CLV630-1120F0 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
