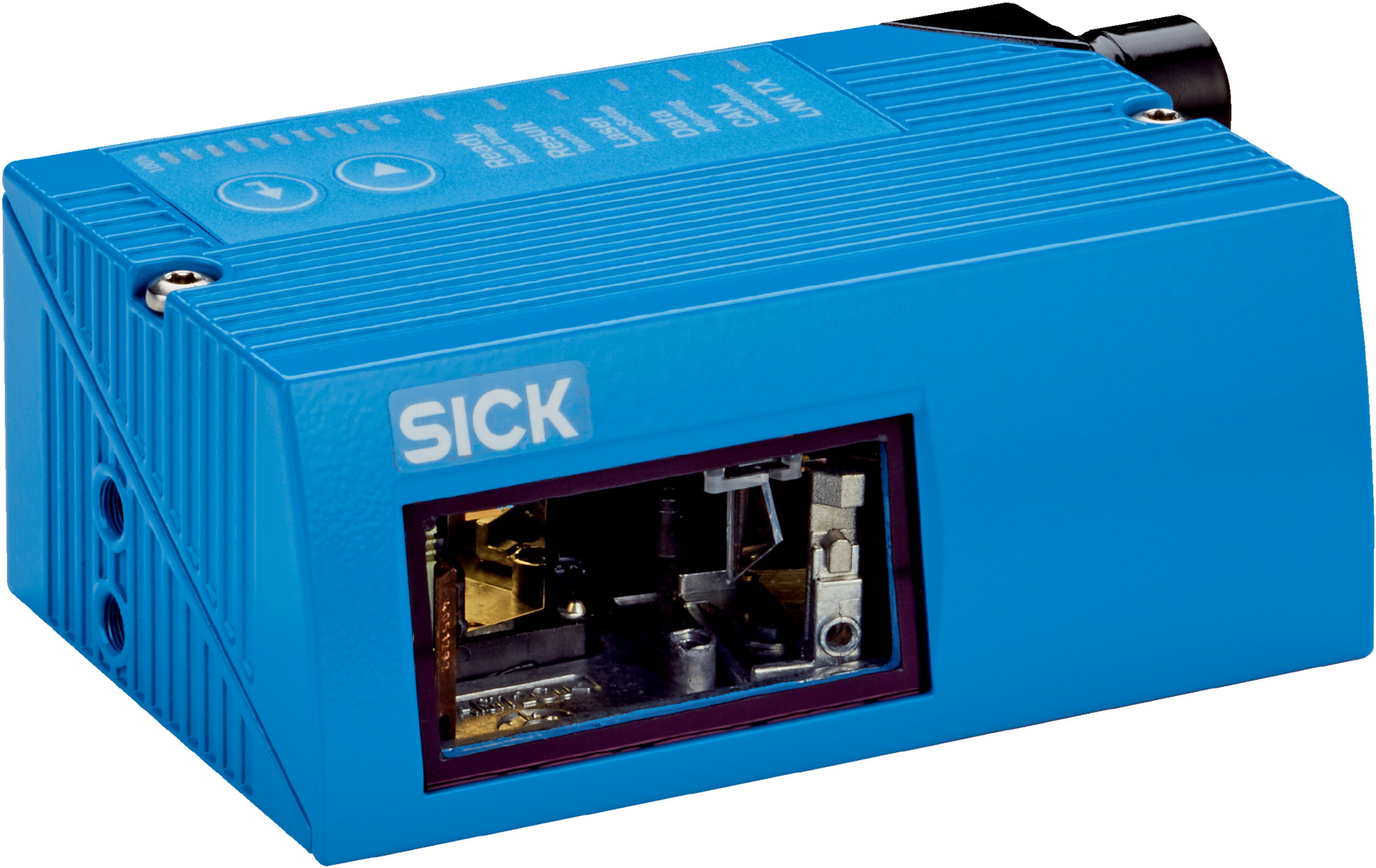

Long Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
The Long Range Raster Scanner is designed for efficient barcode reading in industrial automation, featuring Ethernet connectivity and a robust IP65 rated aluminum housing. With a high scanning frequency of 400 Hz to 1200 Hz and the ability to read various 1D codes, it's perfect for logistics, manufacturing, and quality assurance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range Raster Scanner | Ethernet Connectivity | IP65 Rated | by SICK
Brand: SICK
SKU: 1048439
Alternatively Known As: SICK CLV630 Raster Scanner, SICK Long Range Barcode Reader, SICK Ethernet Barcode Scanner
Technical Specifications
- Version: Long Range
- Connection type: Ethernet, 2 x M12 connectors
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot shape: Oval
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 60 mm to 735 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Raster height and lines at distance: 15 mm, 8 lines at 200 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232/422/485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper/buzzer
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- Long range raster scanner with fixed optical focus
- Reads 1D codes including Code 39, Code 128, GS1 DataBar, and more
- Ethernet and multiple fieldbus interfaces including PROFINET, EtherNet/IP, EtherCAT
- High scanning frequency from 400 Hz to 1200 Hz
- IP65 rated aluminum die cast housing for robust industrial use
- Laser class 2 with visible red light spot at 655 nm
- Supports up to 50 codes per reading interval and 5000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- MicroSD memory card support for configuration storage
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low power consumption of 5 W
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

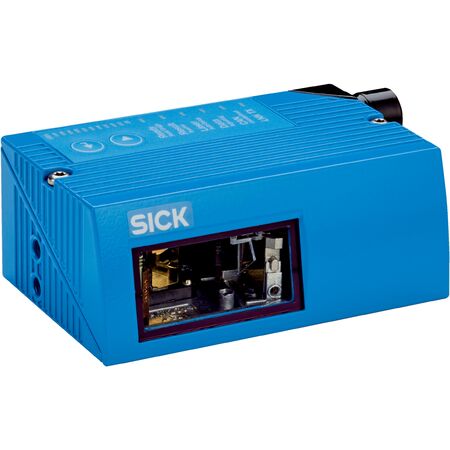

The SICK CLV630-1121S01 Long Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
