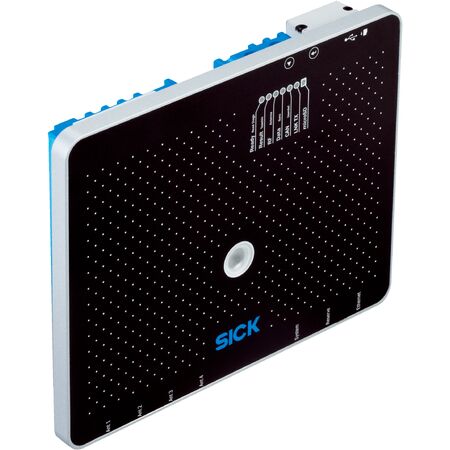

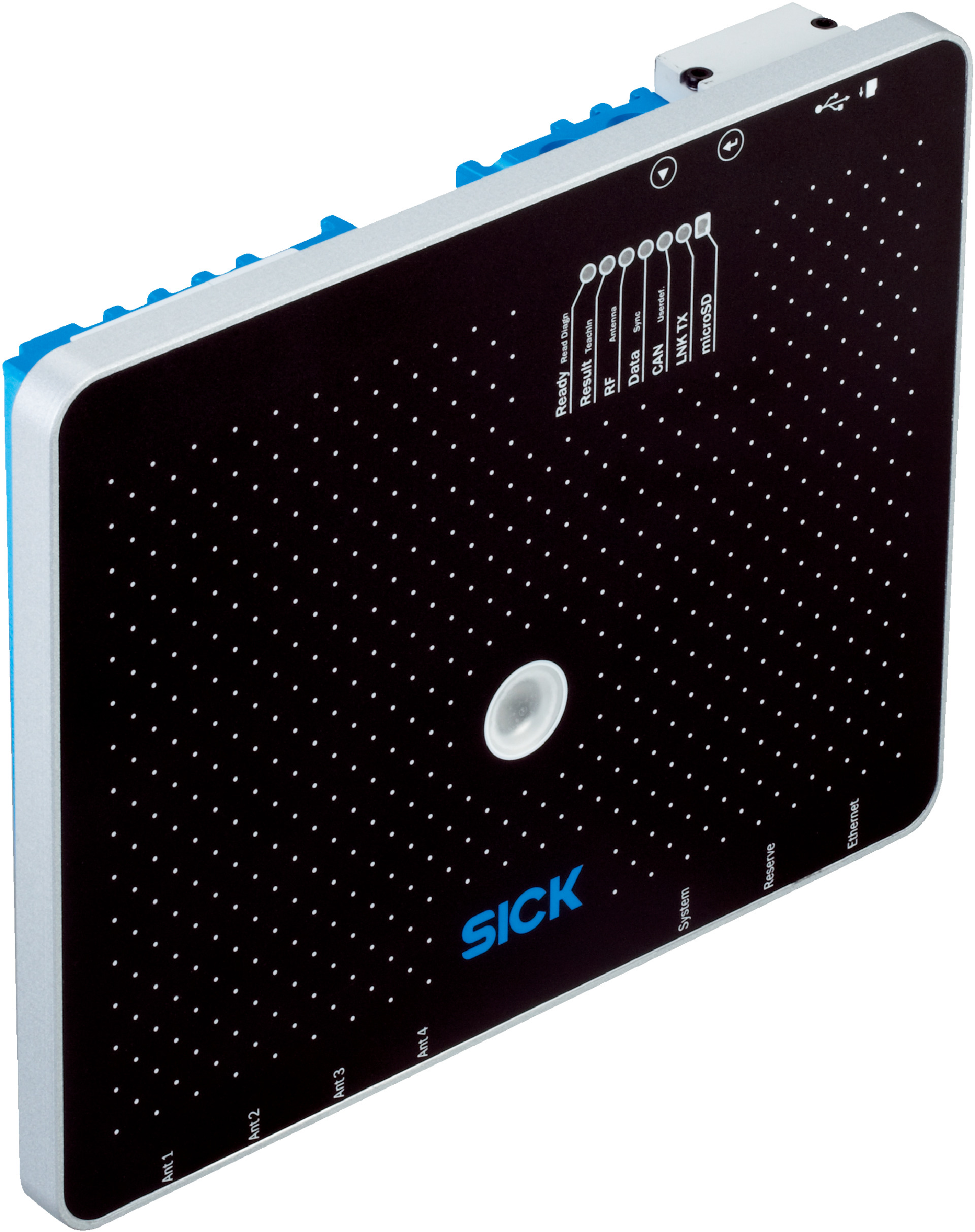

Long Range RFID Reader | Up to 10 Meters Read Range | IP67 Rated | by SICK
The Long Range RFID Reader RFU630-04101 offers exceptional read/write capabilities up to 10 meters, making it ideal for industrial asset tracking and logistics automation. With support for EPCglobal UHF Class 1 Generation 2 standards and multiple interfaces including Ethernet and PROFINET, this robust device ensures reliable performance in demanding environments. Its durable aluminum housing and IP67 rating provide protection against dust and water, ensuring longevity and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 902.75 MHz to 927.25 MHz
- Output power: Up to 30 dBm, adjustable
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Read range: Up to 10 meters
- Antenna: Not integrated, supports 4 external antennas
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector, 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +70°C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write capability up to 10 meters
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Adjustable output power up to 30 dBm at external antenna ports
- Bulk reading functionality
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 rating
- Wide ambient operating temperature range from -30°C to +60°C
- Updatable firmware and programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with RFID systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial asset tracking and management
- Logistics and warehouse automation
- Supply chain monitoring
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-04101 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID solutions.
