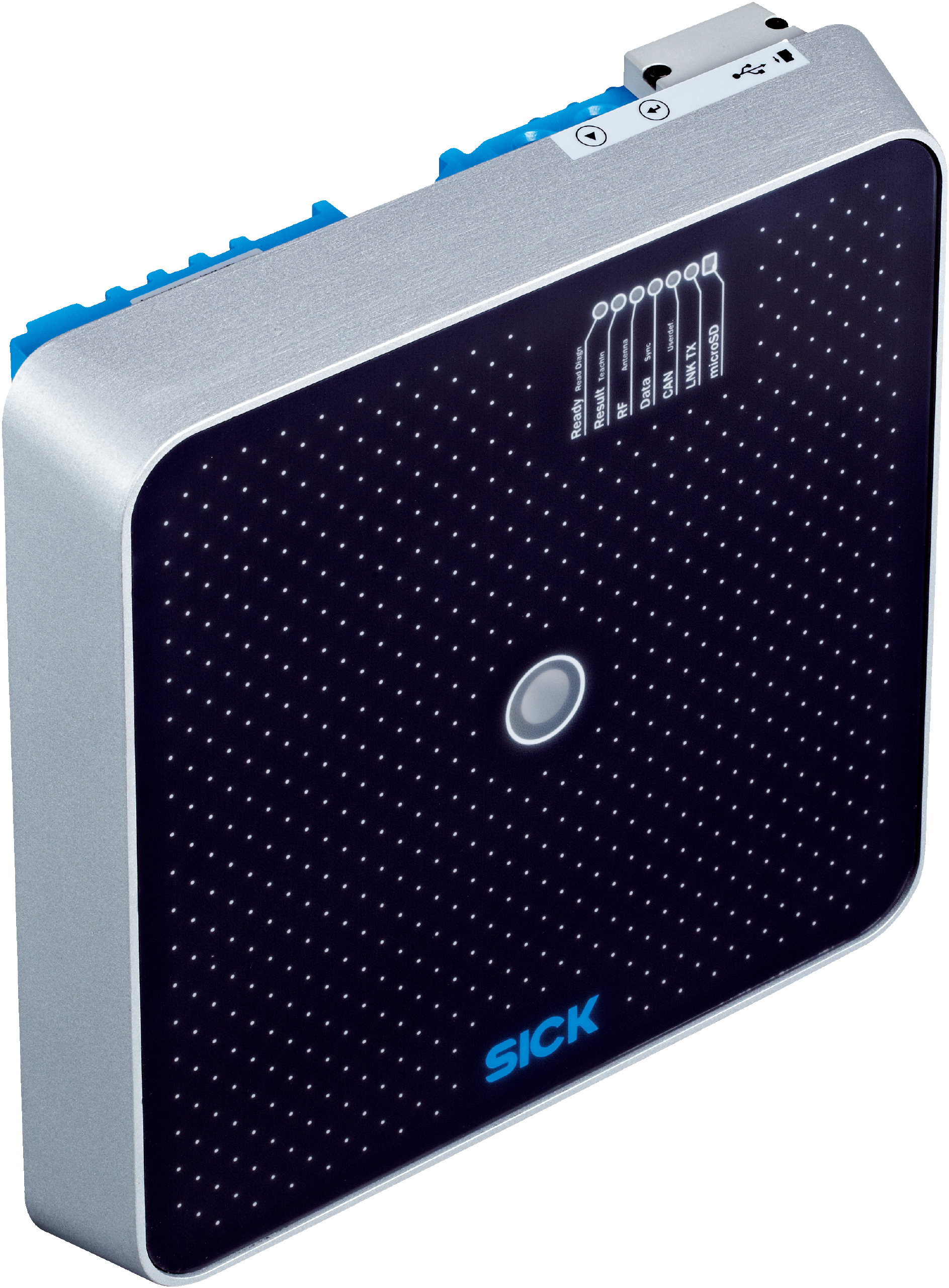

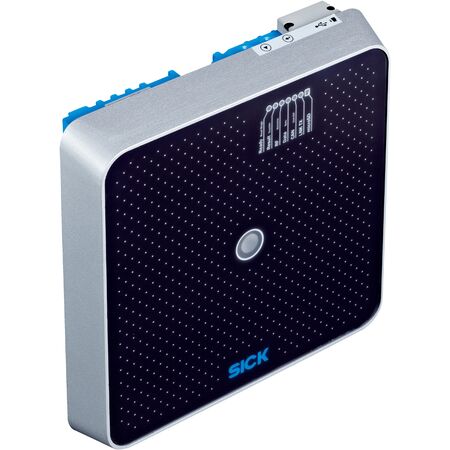

Long Range RFID Reader | Up to 10m Read Range | IP67 Rated | Adjustable Power | by SICK
The Long Range RFID Reader RFU630-13107 offers exceptional read/write capabilities with a range of up to 10 meters, making it ideal for industrial automation and logistics applications. Built with a robust aluminum die cast housing and an IP67 rating, this device is designed to withstand harsh environments while providing flexible connectivity options through multiple industrial communication interfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 916.8 MHz to 920.4 MHz
- Output power: 0.5 W EIRP (integrated antenna), up to 24 dBm at external antenna ports, adjustable
- Antenna: Integrated circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Read range: Up to 10 meters
- Connection type: 1x M12 17-pin male connector (A-coded), 1x M12 4-pin female connector (D-coded), 1x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +70°C
- Relative humidity: Up to 90%, non-condensing
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP, EtherCAT (optional), Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Programming: SICK AppStudio development environment
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Multiple external antenna connections with adjustable output power
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Wide operating temperature range from -30°C to +60°C
- Multiple industrial communication interfaces including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Advanced functions such as diagnosis, firmware updates, programmable data output, and SICK AppSpace functionalities
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID identification
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable transmitting power
- Durable IP67 housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13107 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring robust and flexible RFID solutions.
