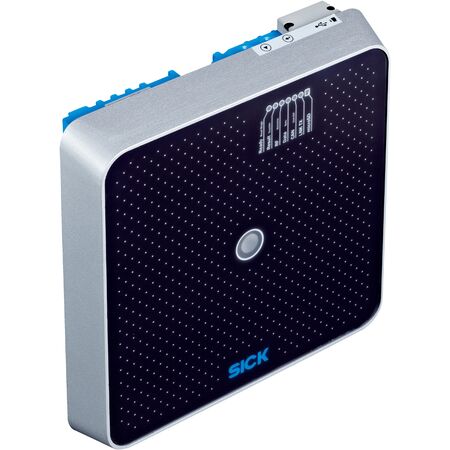

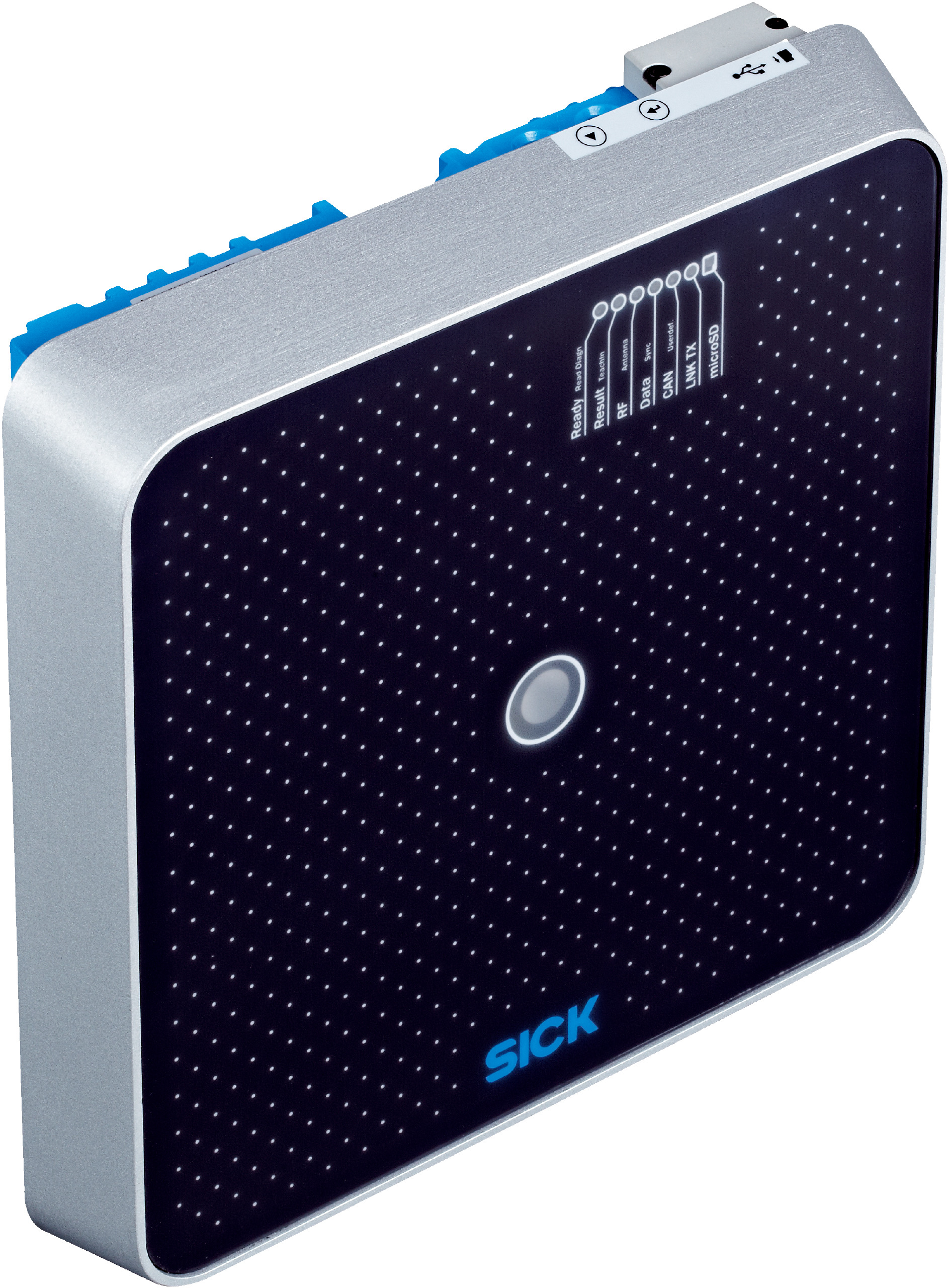

Long Range RFID Reader | Up to 10m Read Range | IP67 Rated | Adjustable Power | by SICK
The Long Range RFID Reader RFU630-13110 offers exceptional read/write capabilities with a range of up to 10 meters, making it ideal for industrial automation and logistics applications. Built with a robust aluminum die-cast housing and an IP67 rating, this device ensures reliable performance in harsh environments. With multiple interface options and advanced functionalities, it supports efficient asset tracking and inventory management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 917.3 MHz to 920.3 MHz
- Output power: 4 W EIRP (integrated antenna), up to 30 dBm at external antenna port, adjustable
- Antenna polarization: Circular
- Aperture angle: 72°
- Read range: up to 10 m
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typical 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, and RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Advanced functions such as diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
- High electromagnetic compatibility and resistance to vibration and shock
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for long-range RFID reading
- Manufacturing environments requiring robust RFID solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13110 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable long-range RFID solutions.
