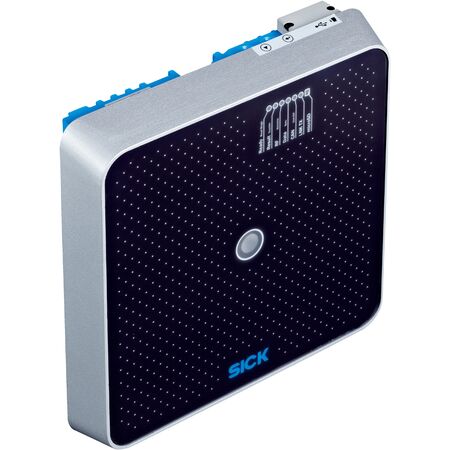

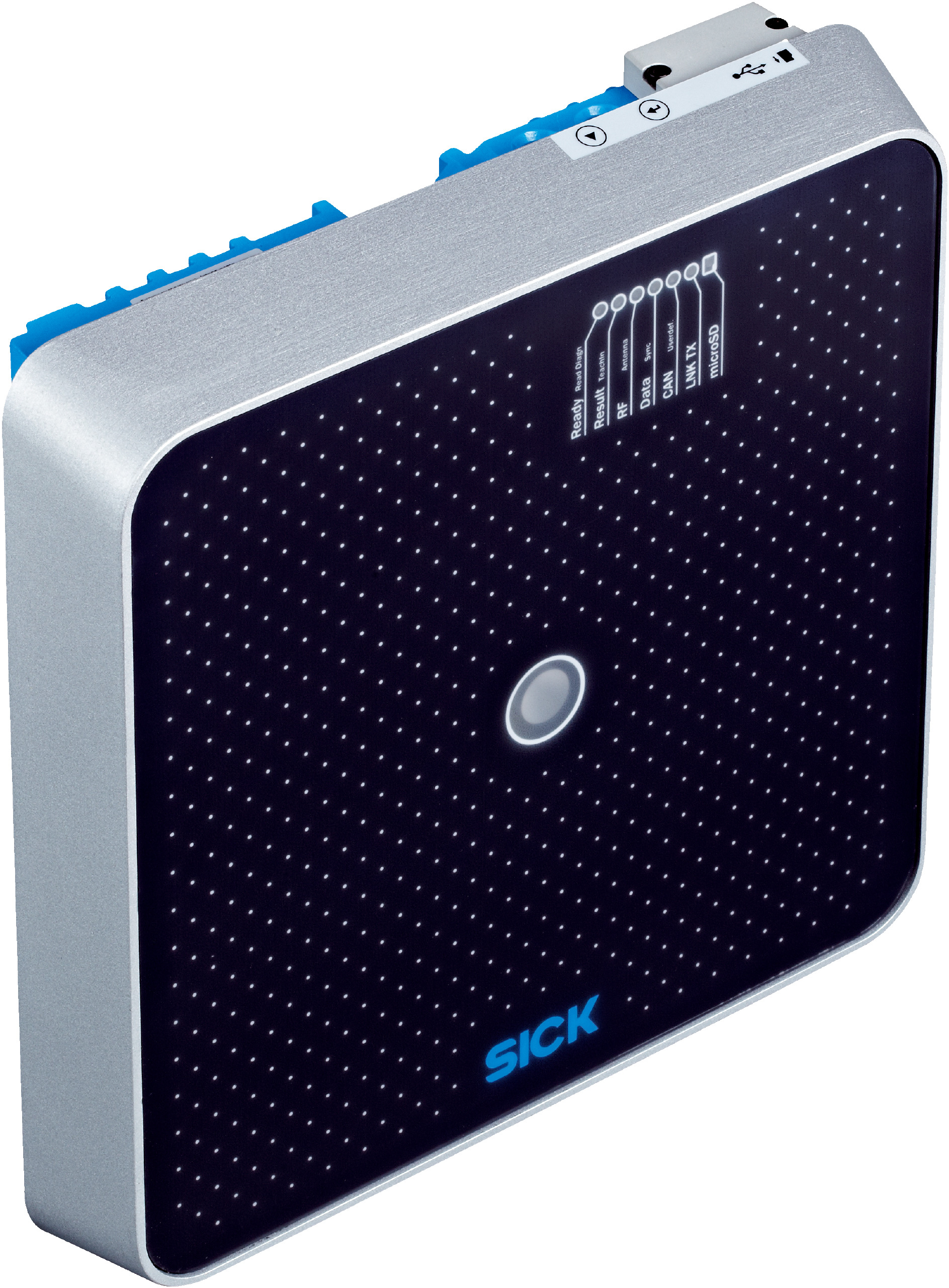

Long Range RFID Reader | Up to 10m Read Range | IP67 Enclosure | by SICK
The Long Range RFID Reader RFU630-13115 offers exceptional read/write capabilities with a range of up to 10 meters, making it ideal for industrial automation and logistics applications. Built with an integrated circular polarized antenna and robust aluminum housing, it ensures reliable performance in harsh environments. With multiple interface options and advanced functionalities, this RFID reader is perfect for asset tracking and inventory management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 867.7 MHz to 867.9 MHz
- Output power: 0.5 W ERP (integrated antenna), up to 27 dBm at external antenna port, adjustable
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Read range: Up to 10 meters
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 enclosure rating for harsh environments
- Advanced functions such as diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
- High electromagnetic compatibility and vibration/shock resistance
- Web server operator interface and configuration via SOPAS ET software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup, configuration, and compliance with safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading and identification
- Manufacturing for process control and monitoring
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource use and reduce energy consumption
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-13115 Long Range RFID Read/Write Device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications.
