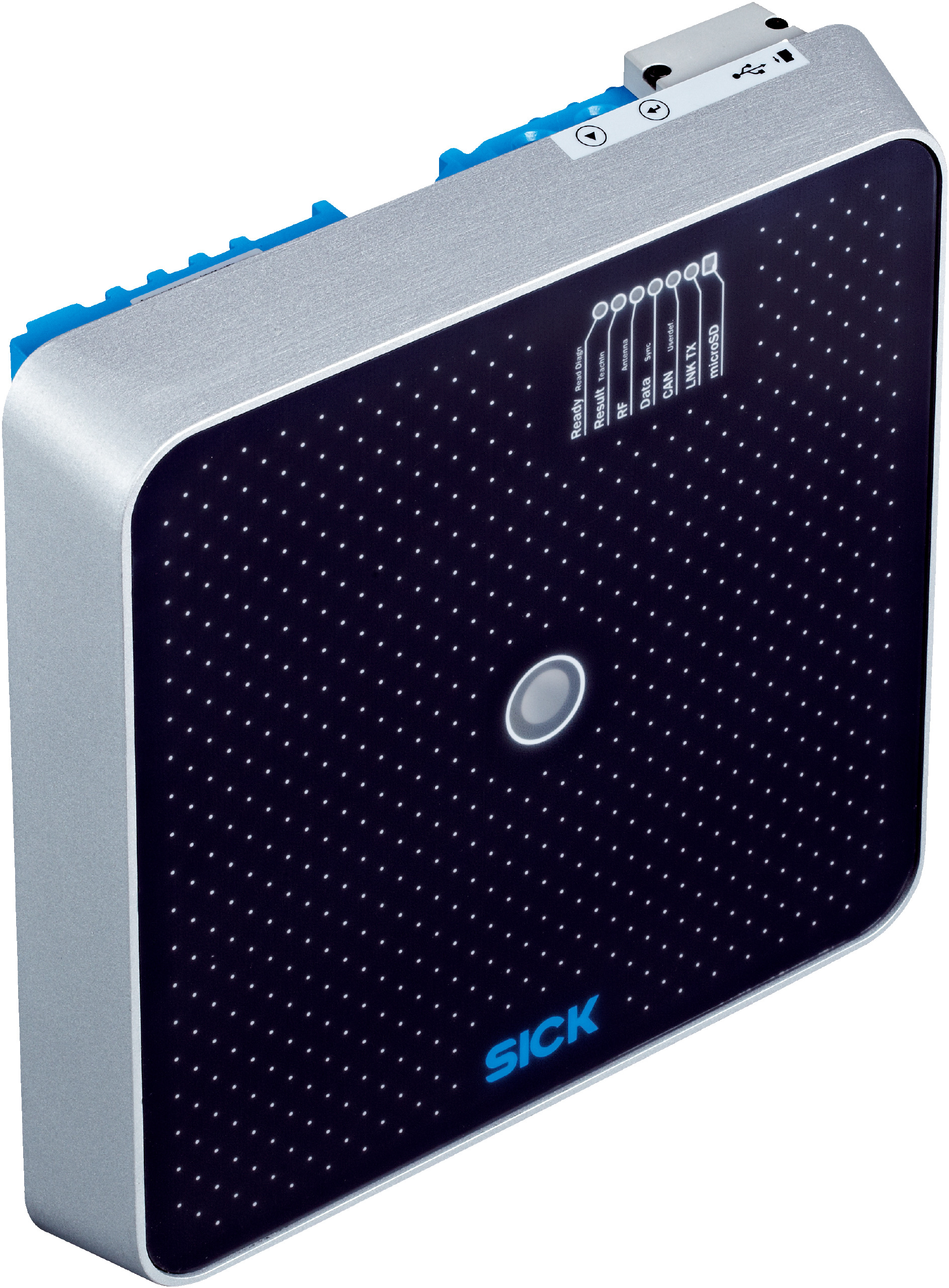

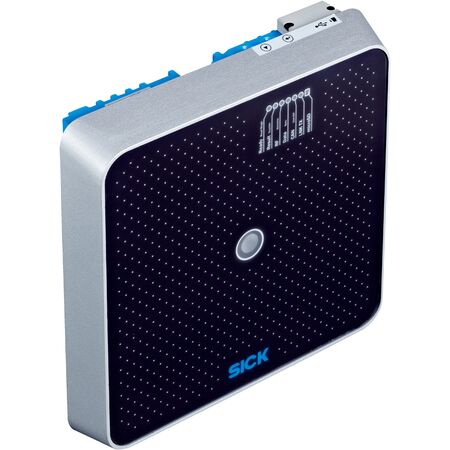

Long Range RFID Reader | UHF 860-960 MHz | 10m Read Range | IP67 Rated | by SICK
The Long Range RFID Reader RFU630-13104 operates in the UHF 860-960 MHz frequency band, providing a remarkable read range of up to 10 meters. Designed for industrial automation and logistics, this robust device features an integrated circular polarized antenna and supports multiple communication interfaces, ensuring seamless integration into existing systems. With its IP67 rating, it’s perfect for outdoor and harsh environments, making it a reliable choice for asset tracking and inventory management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902.75 MHz to 907.25 MHz and 915.25 MHz to 927.25 MHz
- Output power: 4 W EIRP with integrated antenna, up to 30 dBm at external antenna port, adjustable
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 72°
- Read range: up to 10 m
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Connection of external antennas: 3 ports, adjustable up to +30 dBm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP, EtherCAT (optional), Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB 2.0, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- MTBF: greater than 100 years
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 protection rating
- Advanced functions including diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
- High electromagnetic compatibility and vibration/shock resistance
- Multiple digital inputs and outputs with optical and acoustic indicators
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring robust RFID data capture
- Outdoor and harsh environments due to IP67 rated housing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13104 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID data capture.
