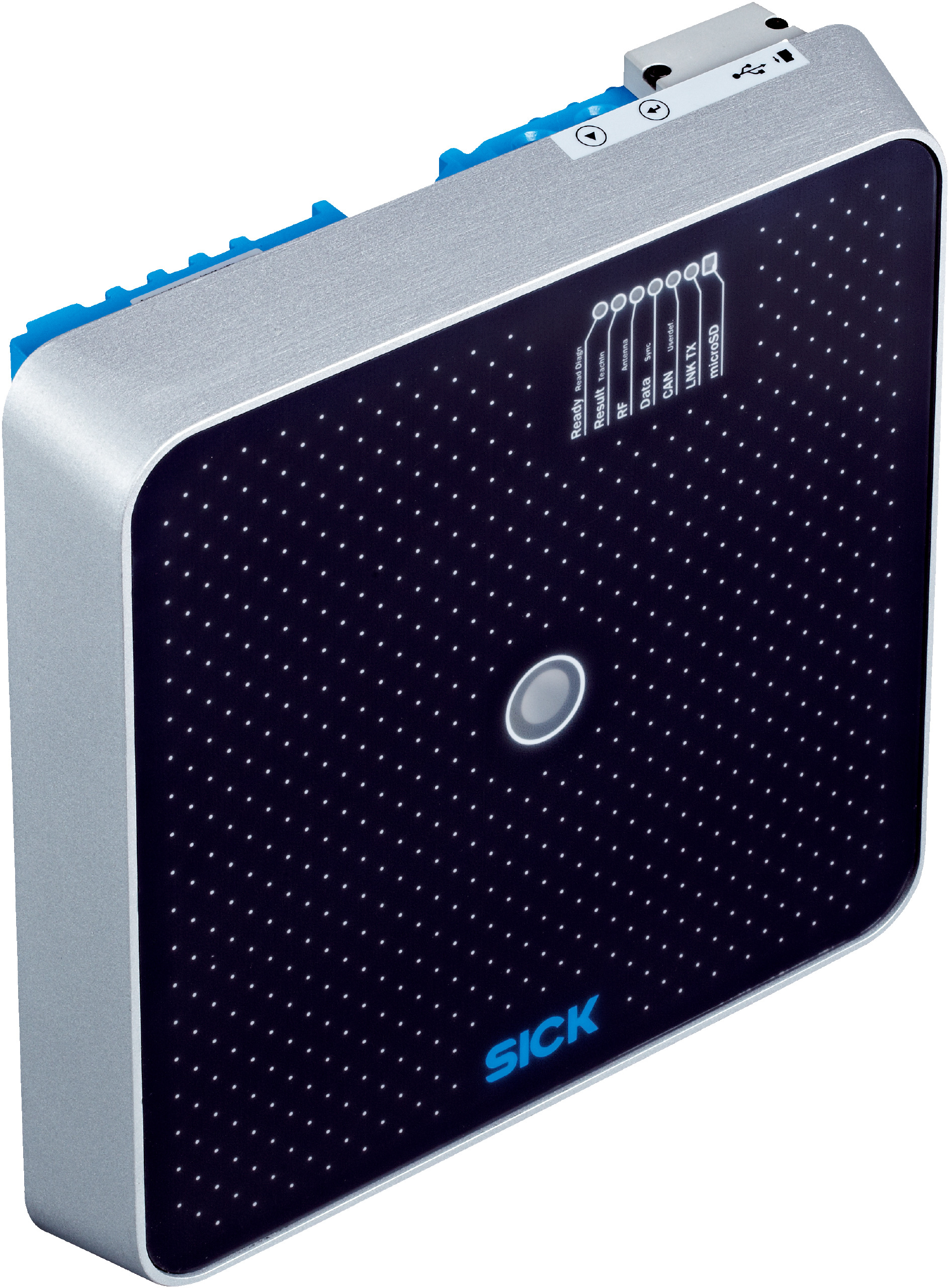

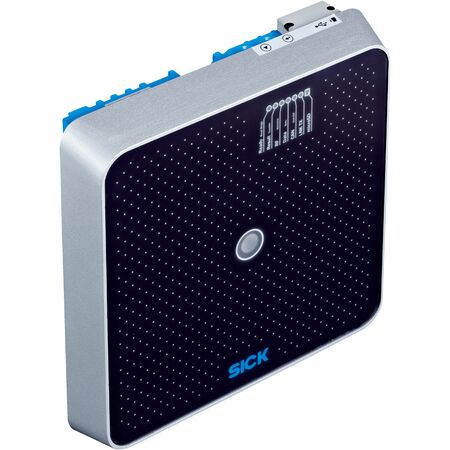

Long Range RFID Reader | UHF Frequency 860-960 MHz | 2W Output Power | IP67 Rated | by SICK
The Long Range RFID Reader RFU630-13100 operates in the UHF frequency band (860 MHz to 960 MHz) and features an adjustable output power of up to 2 W ERP. Ideal for industrial automation and logistics, this robust RFID read/write device with an integrated antenna ensures reliable long-range reading capabilities, making it perfect for asset tracking and inventory management in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 2 W ERP with integrated antenna, alternatively 30 dBm at external antenna port, adjustable
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 72°
- Read range: up to 10 m
- Antenna: Integrated, circular polarization
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 865.7 MHz to 867.5 MHz
- Adjustable output power up to 2 W ERP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with 72° aperture angle and front-to-back ratio > 17 dB
- Bulk reading capability
- Updatable firmware and freely programmable data output format
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical and safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for long-range RFID reading
- Manufacturing environments requiring robust RFID solutions
- Access control and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 rated housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13100 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable long-range RFID solutions.
