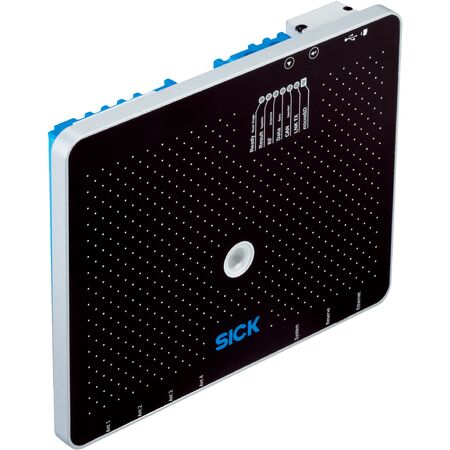

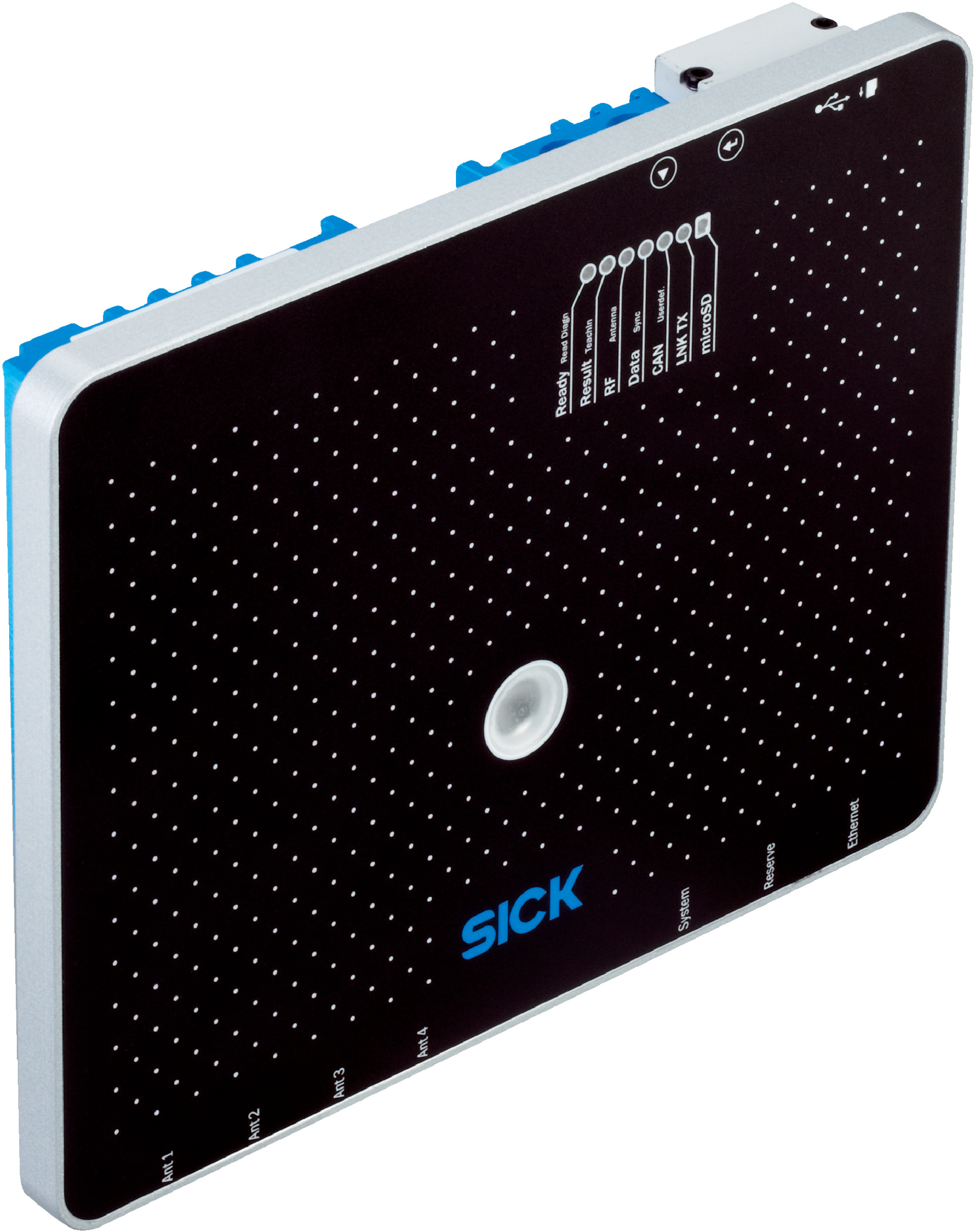

Long Range RFID Reader | UHF 860-960 MHz | Adjustable Output Power | IP67 Rated | by SICK
The Long Range RFID Reader RFU630-04104 operates in the UHF frequency band of 860 MHz to 960 MHz, making it perfect for industrial automation and asset tracking. With an adjustable output power of up to 30 dBm and a robust IP67-rated aluminum housing, this device ensures reliable performance in various environments. Ideal for logistics, manufacturing, and supply chain management, it supports multiple interfaces for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902.75 MHz to 907.25 MHz and 915.25 MHz to 927.25 MHz
- Output power: Up to 30 dBm, adjustable
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Read range: Up to 10 meters
- Connection of external antennas: 4 ports, adjustable output power
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- MTBF: Greater than 100 years
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write device without integrated antenna
- Supports UHF frequency band 860 MHz to 960 MHz
- Adjustable output power up to 30 dBm at external antenna ports
- Compatible with EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Bulk reading capability
- Updatable firmware and freely programmable data output format
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating
- Wide ambient operating temperature range from -30 °C to +60 °C
- Equipped with diagnostic and feedback features including LEDs and beeper
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with RFID systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource use and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-04104 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
