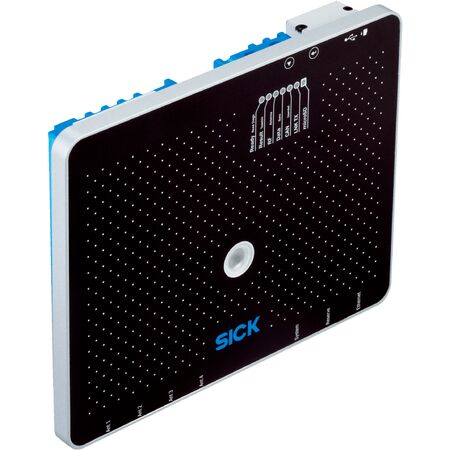

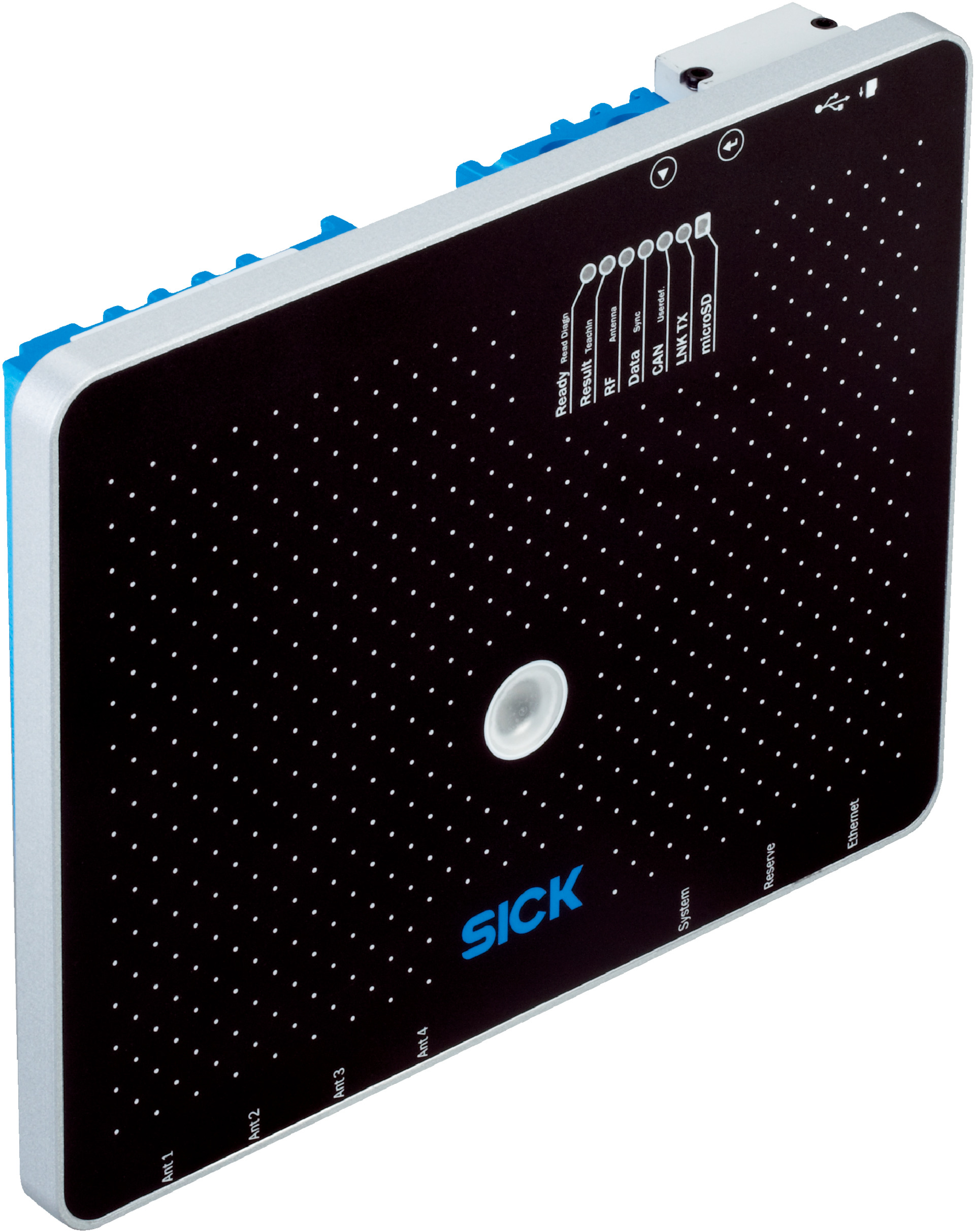

Long Range RFID Reader | UHF 860-960 MHz | Adjustable Output Power Up to 30 dBm | IP67 Rated | by SICK
The Long Range RFID Reader RFU630-04105 operates in the UHF frequency band of 860 MHz to 960 MHz, making it ideal for industrial automation and logistics applications. With an adjustable output power of up to 30 dBm and a robust IP67-rated aluminum housing, this device supports multiple interfaces for seamless integration into existing systems. Perfect for asset tracking and inventory management, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: Up to 30 dBm, adjustable
- RFID standards: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Read range: Up to 10 meters
- Antenna: Not integrated, supports 4 external antennas
- Connection type: 1x M12 17-pin male, 1x M12 4-pin female, 1x USB 5-pin micro-B
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Weight: 2.1 kg
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +70°C
- Humidity: Up to 90% non-condensing
- EMC: EN 301489-3 / EN 50121-4 (2017)
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write device without integrated antenna
- Supports UHF frequency band 860 MHz to 960 MHz
- Adjustable output power up to 30 dBm at external antenna ports
- Compatible with EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN standards
- Bulk reading capability
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 rating
- Wide ambient operating temperature range from -30°C to +60°C
- Updatable firmware and programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-04105 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and logistics applications.
