Trade Discount 20%

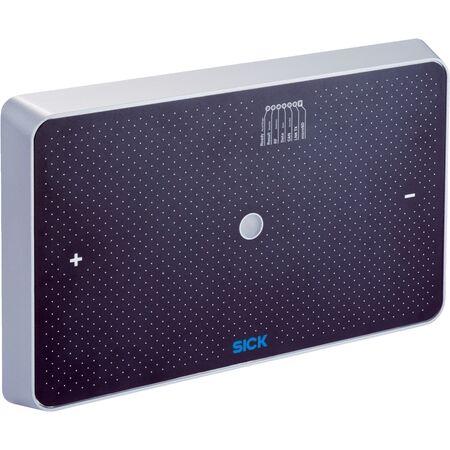

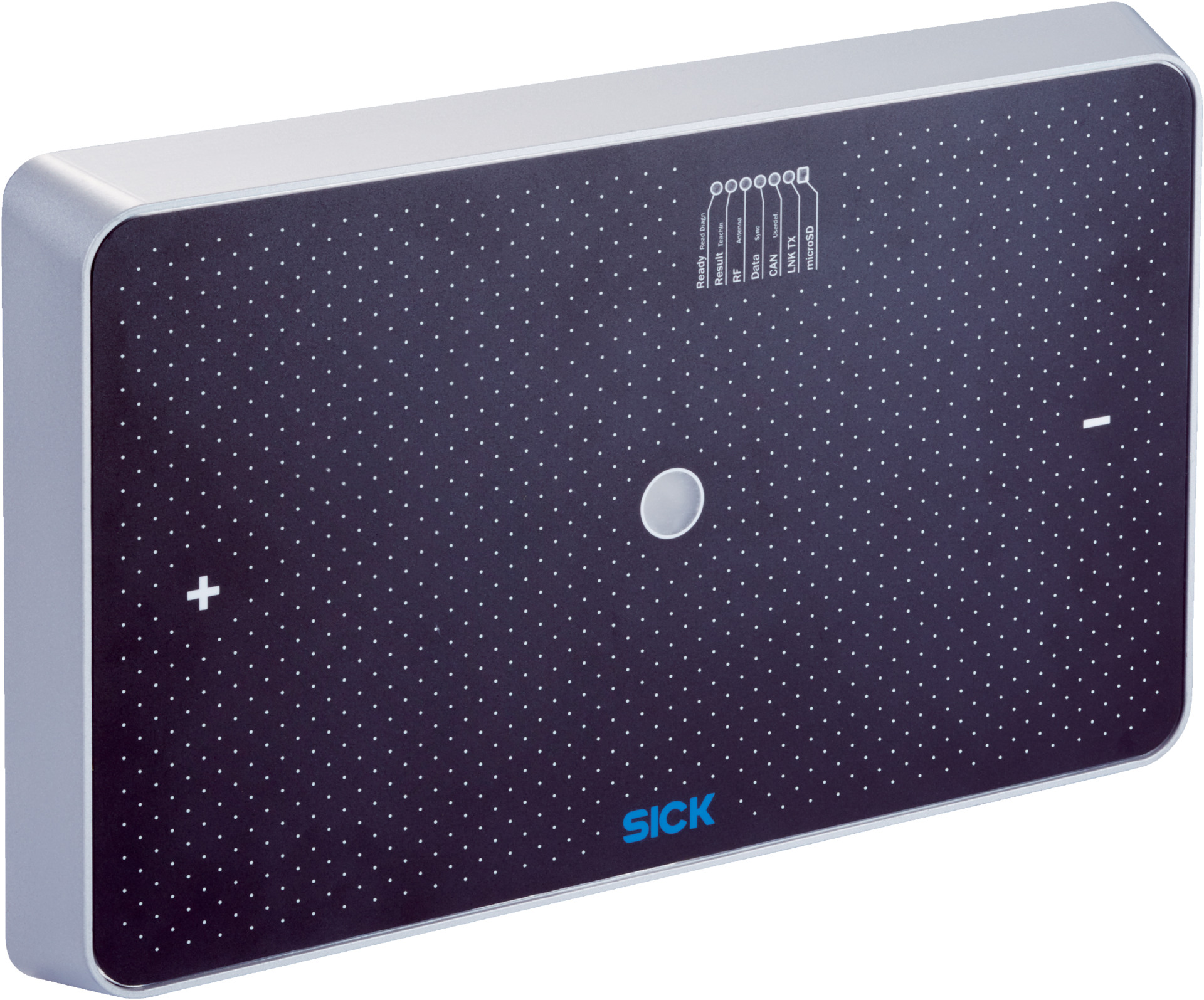

Long Range RFID Reader | UHF 860-960 MHz | IP67 Rated | 10m Read Range | by SICK
The Long Range RFID Reader RFU650-10101 operates in the UHF 860 MHz to 960 MHz frequency band, providing a robust read range of up to 10 meters. Ideal for industrial automation and logistics, this device features an integrated circular polarized antenna and multiple interface options, ensuring reliable performance in harsh environments. With its IP67 rating, it’s built to withstand challenging conditions while supporting advanced RFID functionalities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902 MHz to 928 MHz
- Output power: 2.5 W (EIRP, 34 dBm)
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB
- Read range: Up to 10 meters
- Connection types: 1x M12 17-pin male, 1x M12 4-pin female, 1x USB 5-pin micro-B
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 26 W
- Enclosure rating: IP67
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Weight: 3.9 kg
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control: 2 buttons, web server interface
- Programming: SICK AppStudio development environment
- Memory: microSD card for parameter cloning and data storage
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum housing with IP67 rating for harsh environments
- Advanced functions such as transponder entry detection with direction information, horizontal transponder angle output, and updatable firmware
- Supports SICK AppSpace functionalities with SD card accessory
- Web server operator interface and SOPAS ET configuration software
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for long-range RFID reading
- Manufacturing environments requiring robust RFID solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 rated housing extends product life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU650-10101 Long Range RFID Read/Write Device is available for immediate purchase. Ideal for industrial and logistics applications requiring reliable long-range RFID solutions.
