Trade Discount 20%

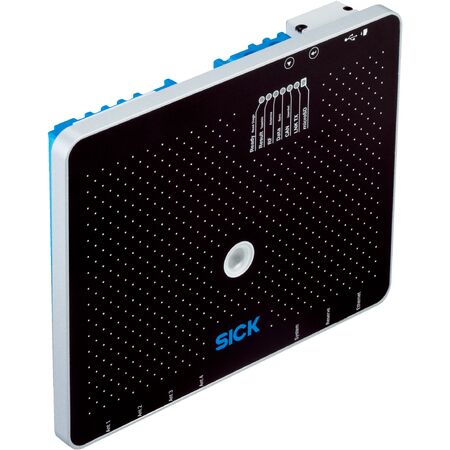

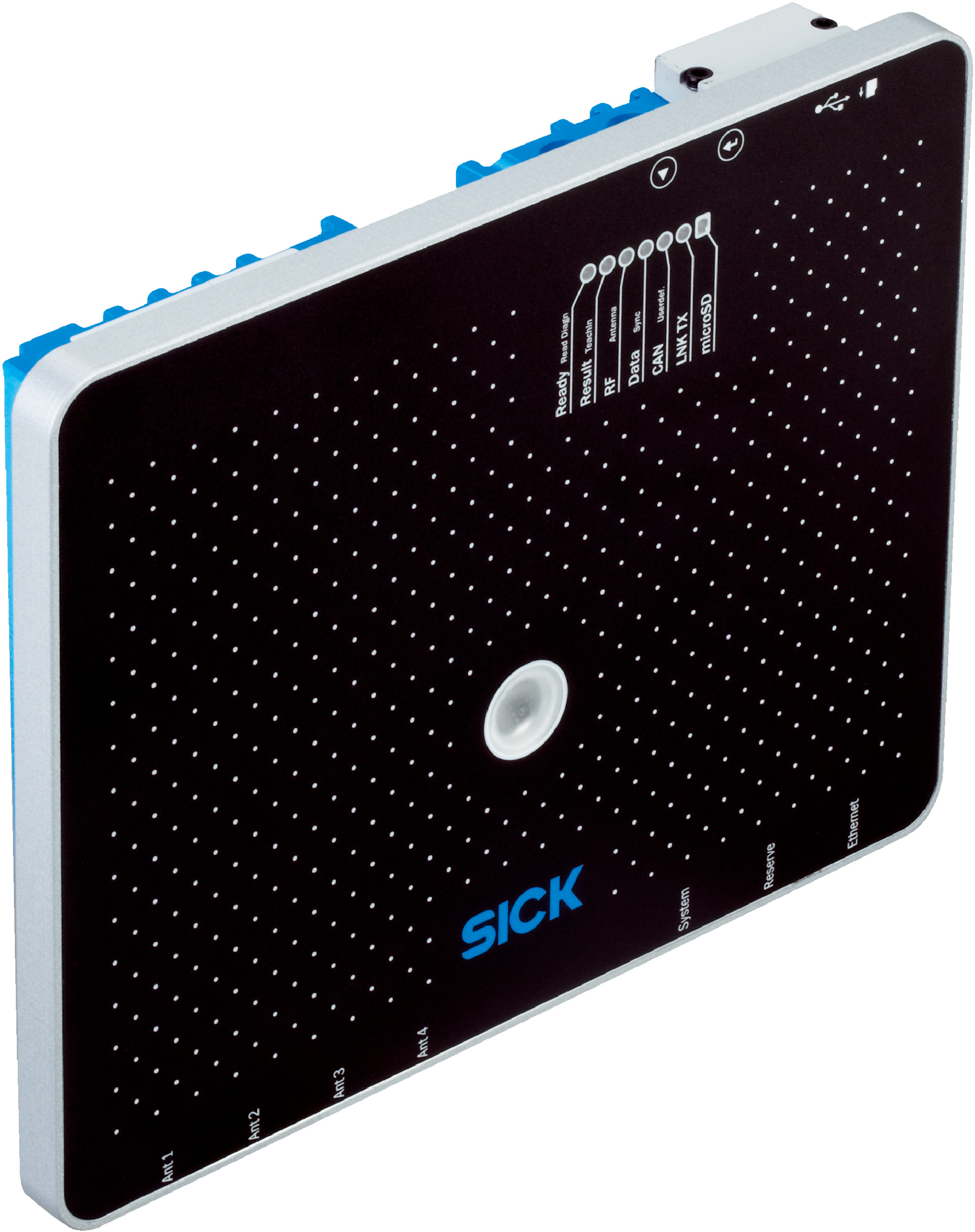

Long Range RFID Reader | UHF 860-960 MHz | IP67 Rated | Adjustable Output Power | by SICK
The Long Range RFID Reader RFU630-04102 operates in the UHF frequency band (860-960 MHz) and features an adjustable output power of up to 30 dBm. With a robust IP67-rated aluminum housing, it's perfect for industrial automation, logistics, and manufacturing environments that require reliable long-range RFID reading. This device supports multiple interfaces and offers bulk reading capabilities, making it an ideal choice for asset tracking and inventory management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.25 MHz to 925.75 MHz
- Output power: Up to 30 dBm, adjustable
- Read range: Up to 10 meters
- Connection of external antennas: 4 ports, adjustable power
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- MTBF: Greater than 100 years
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write device without integrated antenna
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Adjustable output power up to 30 dBm at external antenna ports
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating
- Wide ambient operating temperature range from –30 °C to +60 °C
- Updatable firmware and programmable data output format
- Equipped with diagnostic functions and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper antenna connection and compliance with radio regulations.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID reading
Standards & Compliance
- Complies with AS/NZS 4268 for radio equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable output power
- Durable IP67 housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-04102 Long Range RFID Read/Write Device is available now for immediate purchase. Ideal for industrial and logistics applications requiring reliable long-range RFID reading.
