Long Range RFID Reader | UHF 860-960 MHz | IP67 Rated | Integrated Antenna | by SICK

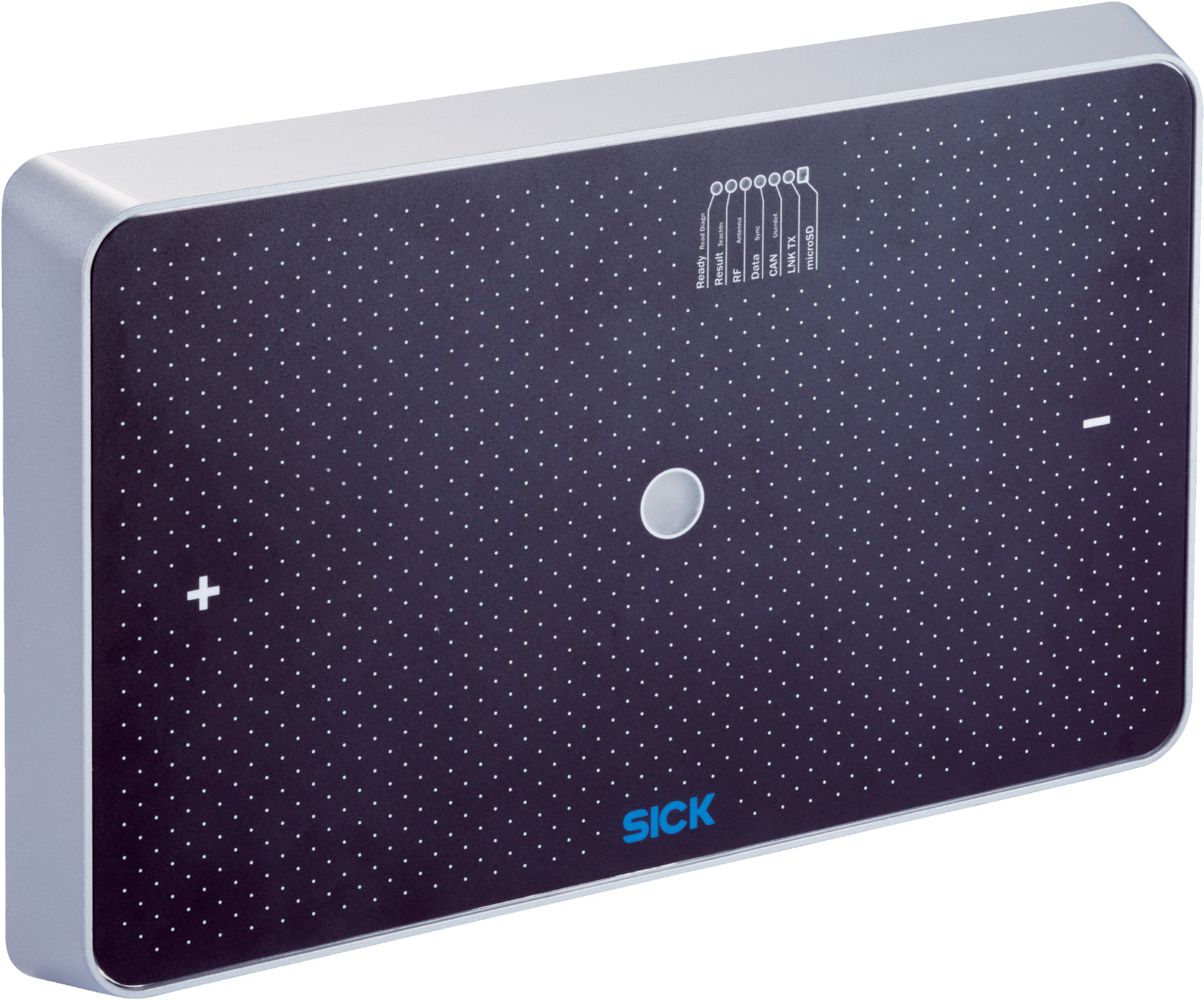

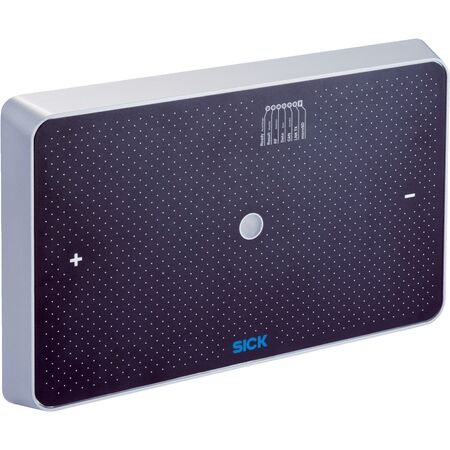

The Long Range RFID Reader RFU650-10100 operates in the UHF 860 MHz to 960 MHz frequency band, providing a read range of up to 10 meters. Designed for industrial automation, logistics, and asset tracking, this robust device features an integrated circular polarized antenna and multiple interface options, ensuring reliable performance in harsh environments. Ideal for professionals seeking efficient solutions in manufacturing and supply chain management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: 1.6 W ERP with integrated antenna
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 15 dB
- Read range: Up to 10 meters
- Connection types: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 26 W
- Housing material: Aluminum
- Enclosure rating: IP67
- Protection class: III
- Weight: 3.9 kg
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 90%, non-condensing
- EMC compliance: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range RFID read/write capability with up to 10 m read range
- Integrated circular polarized antenna with adjustable transmitting power
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, and RAIN RFID standards
- Robust aluminum housing with IP67 enclosure rating for harsh environments
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Advanced functions such as transponder entry detection with direction information, horizontal transponder angle output, and freely programmable data output format
- Updatable firmware and SICK AppSpace functionalities via SD card accessory
- Web server operator interface and SOPAS ET configuration software support
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource usage and reduce energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU650-10100 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
