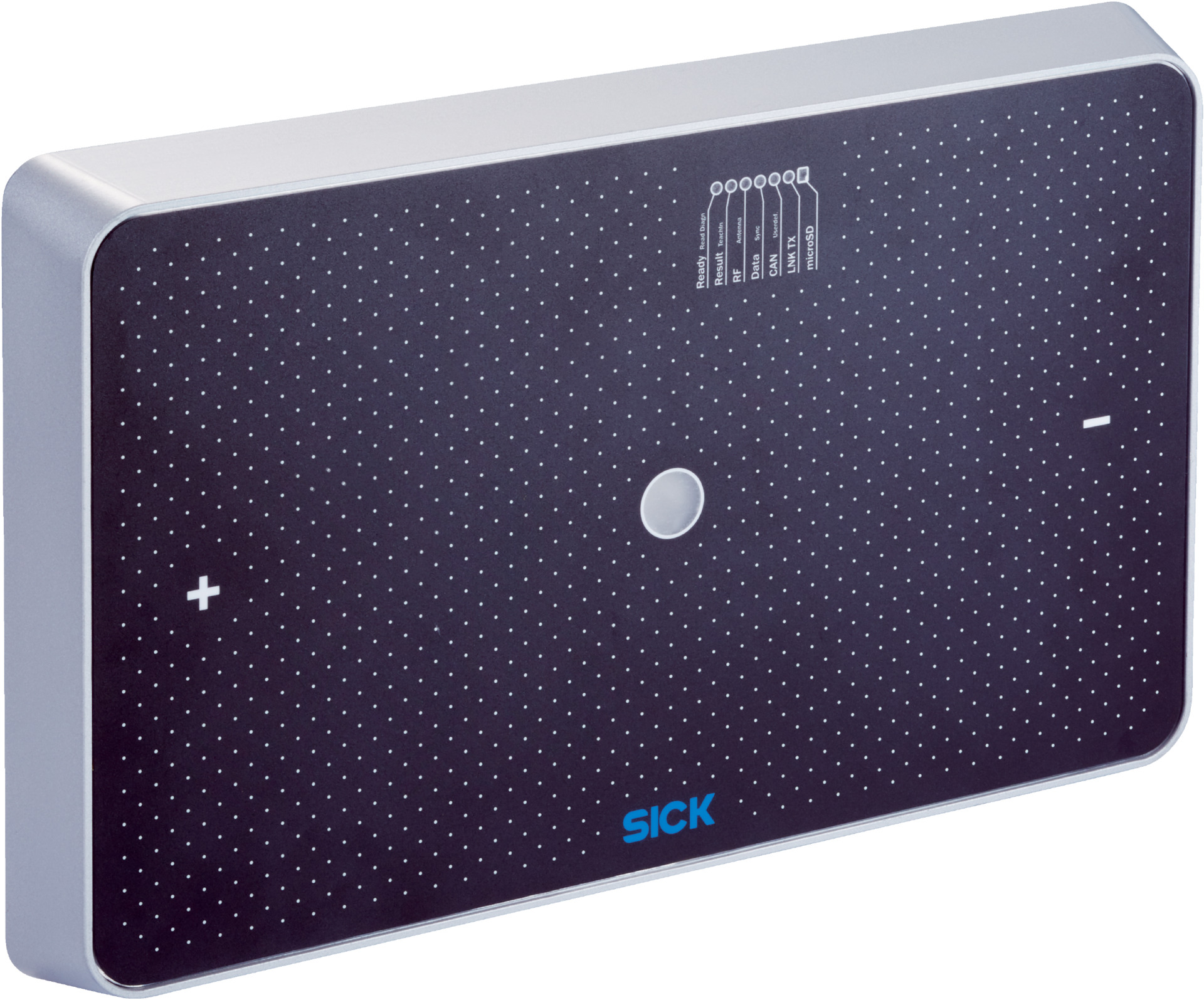

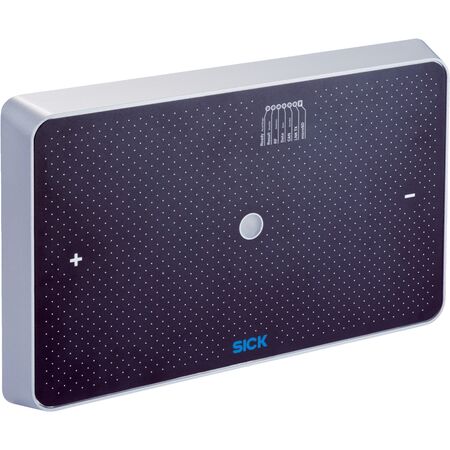

Long Range RFID Reader | UHF Frequency 860-960 MHz | Integrated Antenna | IP67 Rated | by SICK
The Long Range RFID Reader RFU650-10106 operates within the UHF frequency band of 860 MHz to 960 MHz, featuring an integrated antenna for efficient asset tracking and inventory management. With adjustable output power up to 2.5 W and robust IP67-rated housing, it's perfect for industrial automation and logistics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 916.8 MHz to 920.4 MHz
- Output power: 2.5 W (EIRP, 34 dBm)
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 80° (vertical 55°, horizontal)
- Antenna: Integrated, circular polarization
- Axial ratio: Typically 2 dB
- Front-to-back ratio: > 15 dB
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector, 1 x USB 5-pin micro-B socket
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 26 W
- Housing material: Aluminum
- Enclosure rating: IP67
- Protection class: III
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 916.8 MHz to 920.4 MHz
- Adjustable transmitting power up to 2.5 W (EIRP, 34 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio > 15 dB
- Direction monitoring and bulk reading capabilities
- Integrated antenna with 80° aperture angle (vertical 55°, horizontal)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum housing with IP67 enclosure rating and protection class III
- Operating temperature range from -25 °C to +60 °C
- Updatable firmware and programmable data output format with SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup, configuration, and compliance with electrical standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading and transponder entry detection
- Manufacturing environments requiring long-range RFID reading capabilities
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 rated housing ensures long product life and reduces replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU650-10106 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications requiring reliable long-range RFID reading.
